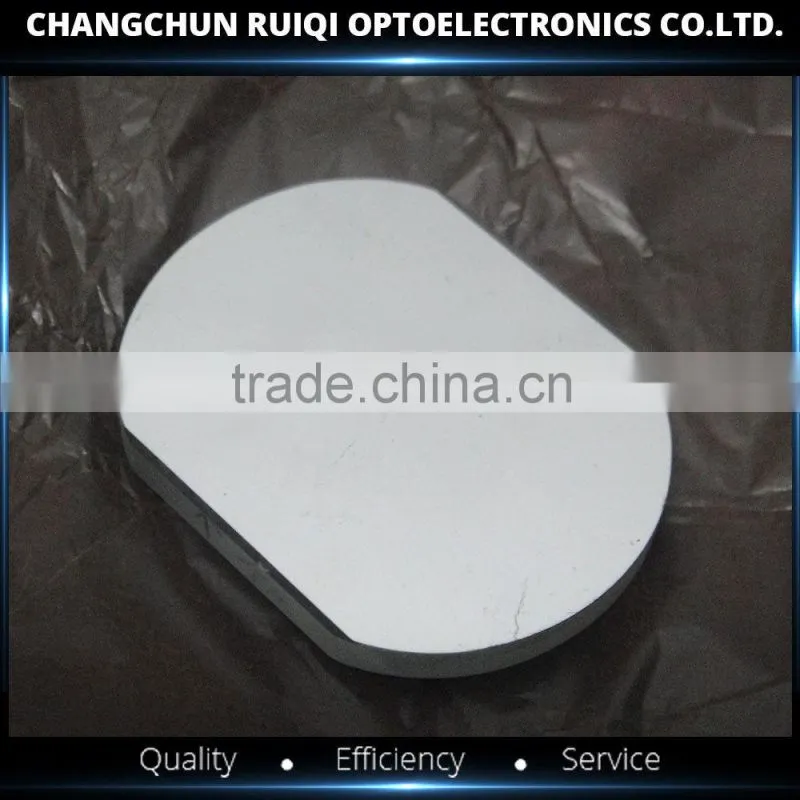

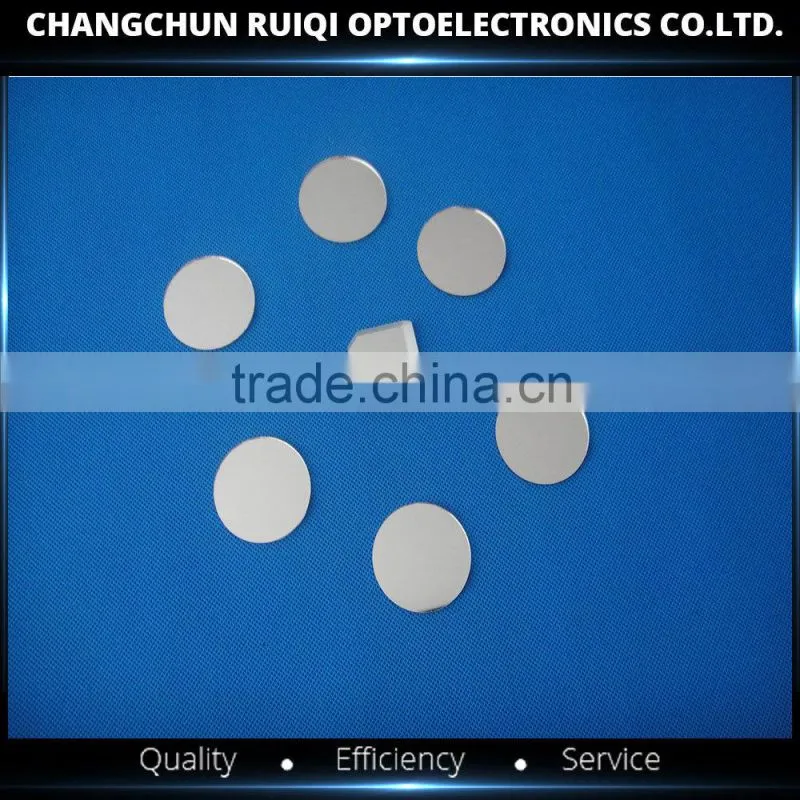

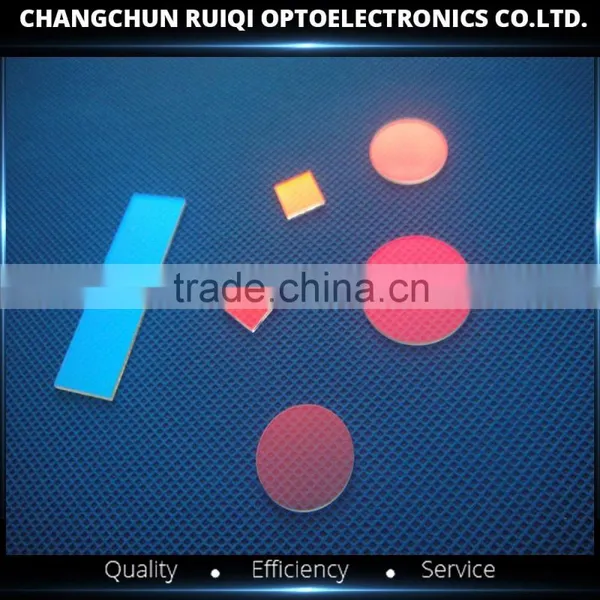

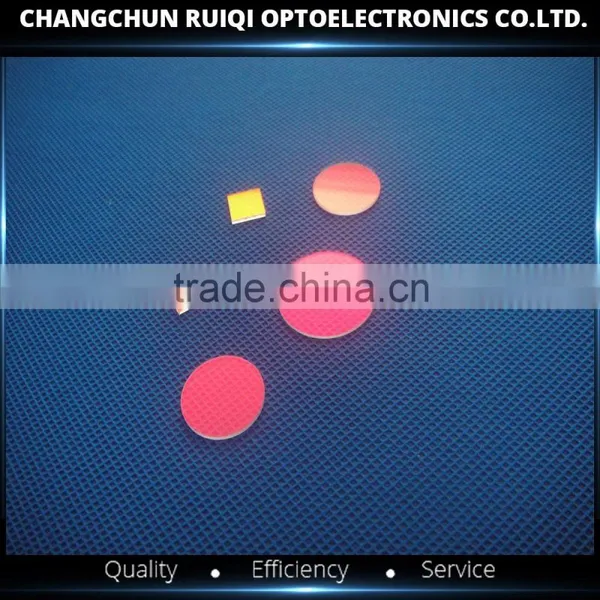

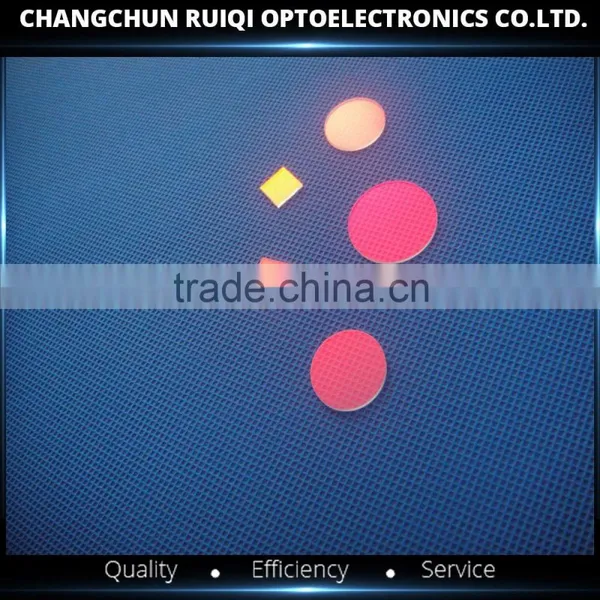

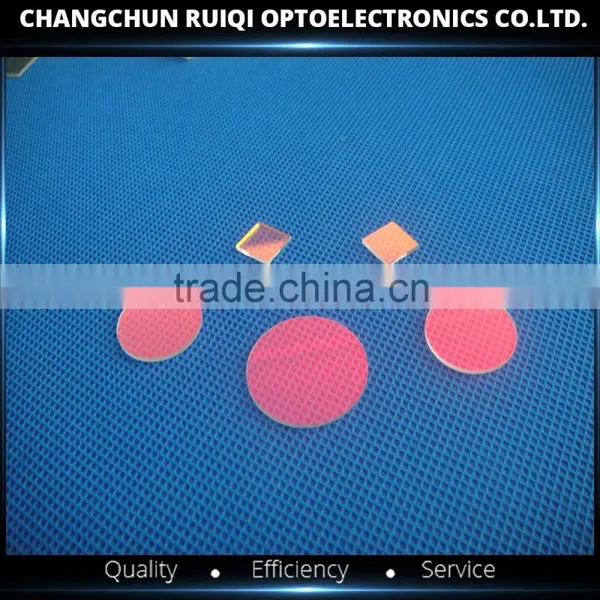

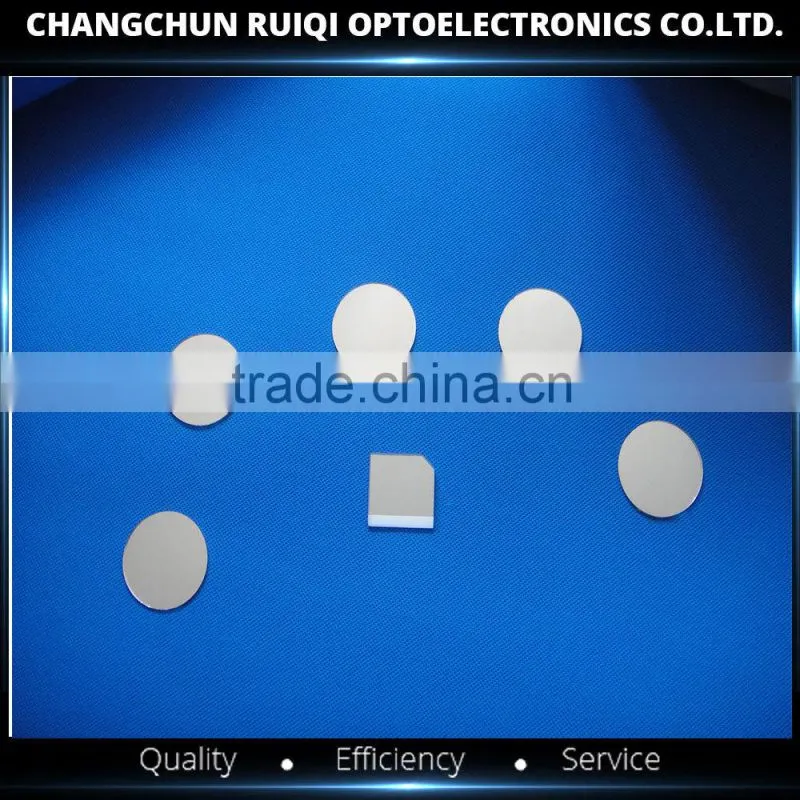

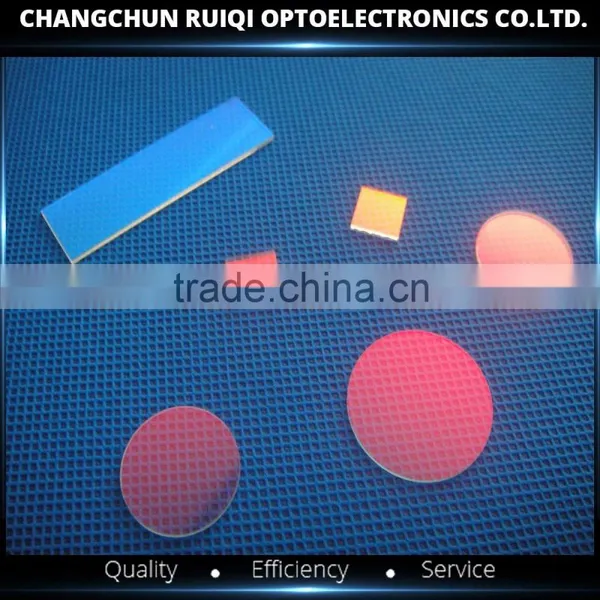

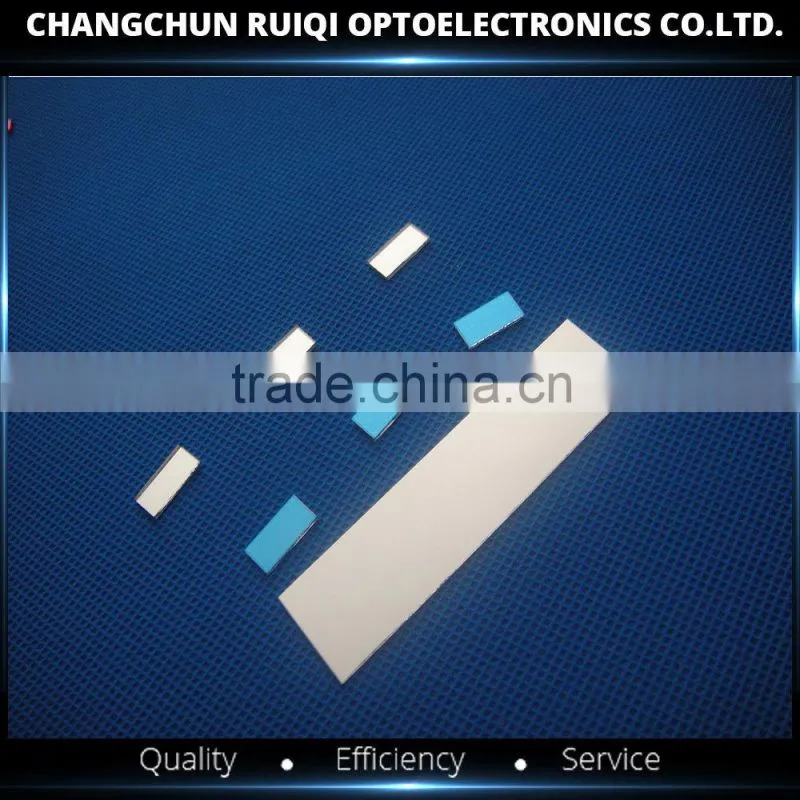

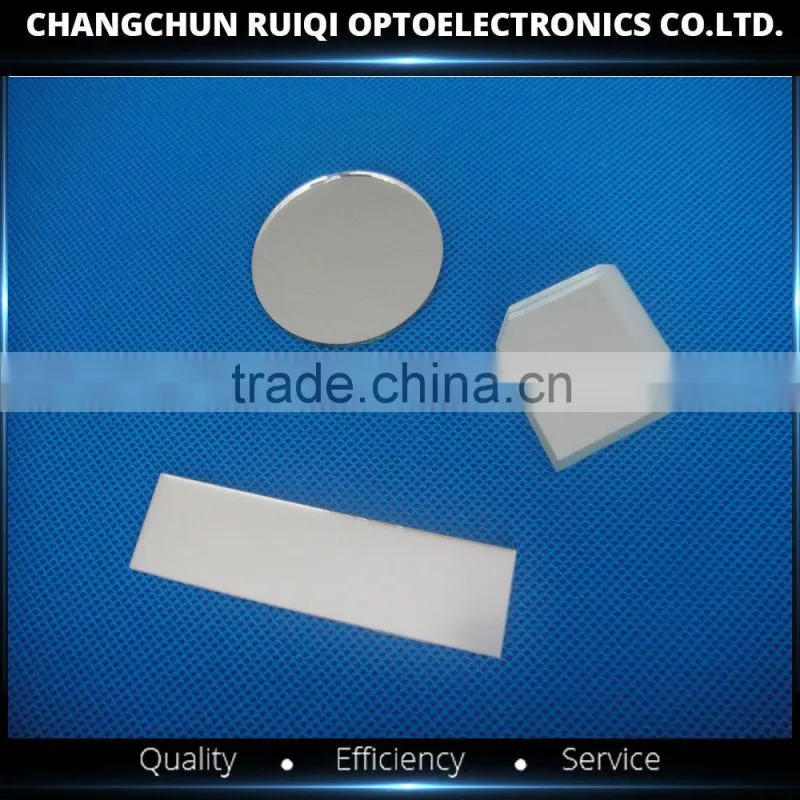

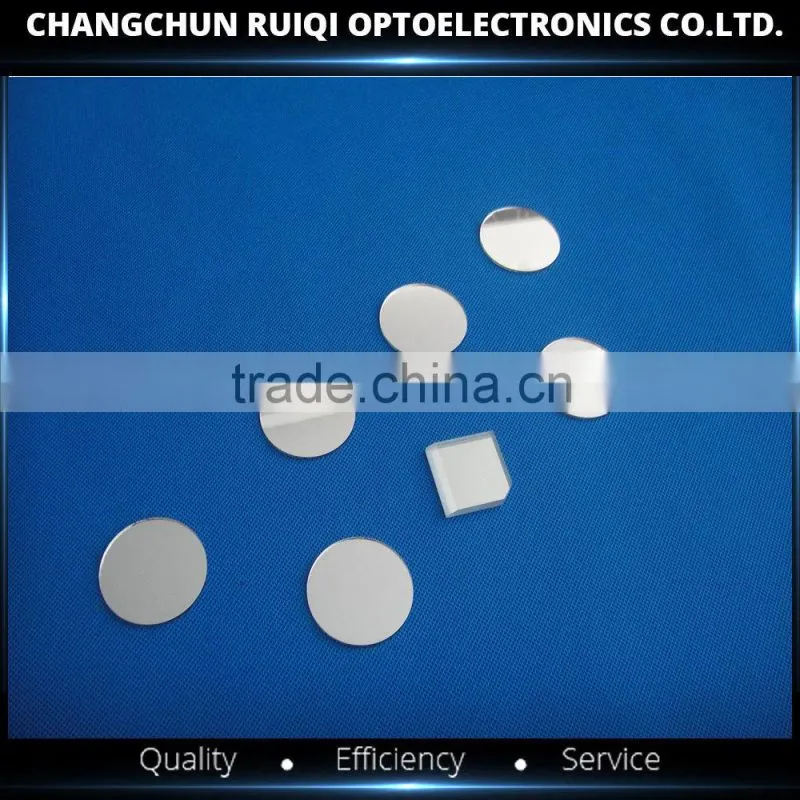

Hot&Cold Mirror for CCD-Chips Projectors Lighting Systems Detector Trimmers Sensors
0° and 45° angle of incidence Hot Mirrors are perfect for decreasing the undesirable heat caused by infrared radiation. A multilayer dielectric coating transmits 80% of visible light while reflecting over 90% of the NIR and IR, making them ideal for projection systems where heat build-up can lead to system damage. Made of BOROFLOAT glass, these hot mirrors can be cut to the desired size for any application
For information on our optic lens custom work, contact Ruiqi today.
It is applications IR-Filters for CCD-chips projectors Lighting systems Detector Trimmers Sensors,Transmit Visble or IR Reflect or Visable
Specifications:
| Material | Borofloat |
| Dimension Tolerance | +0/-0.1mm |
| Thickness | +/-0.2mm |
| Surface Quality | 60-40 |
| Clear Aperture | >85% |
| Flatness | 5 lambda per 25mm at 632.8nm |
| Parallelism | <3' |
| Bevel | <0.2*45degree |
| Coating |
Reflectance: Cold mirror: R>85%@700-1100nm Hot mirror: R<5%
Transmittance: Cold mirror:T<5%@400-700nm Hot mirror:T>85%@400-700nm |
