Help CenterWood Plastic Door Production Line
Related Products
Specifications
1.high quality and competitive price
2.CE and ISO9001:2000
3.world famous brand
4. long life and low consumption
1. Used widely in producing door, partition panel, construction template, base plate of container, etc.
2. has CE certificate

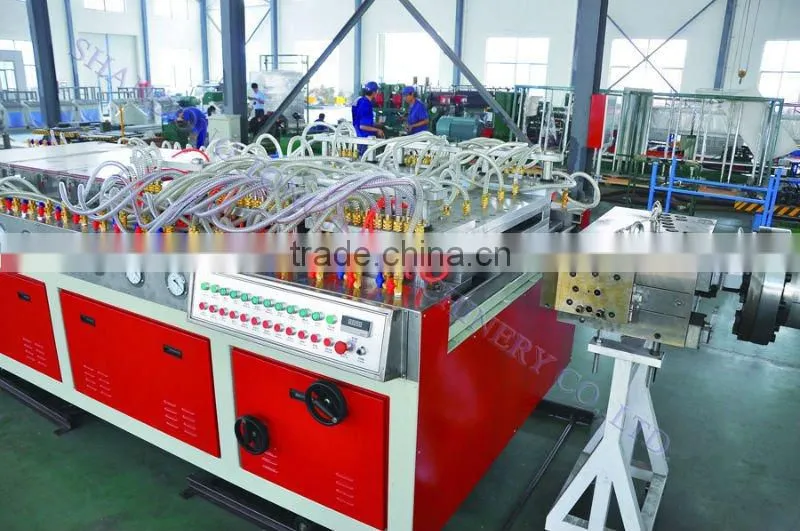

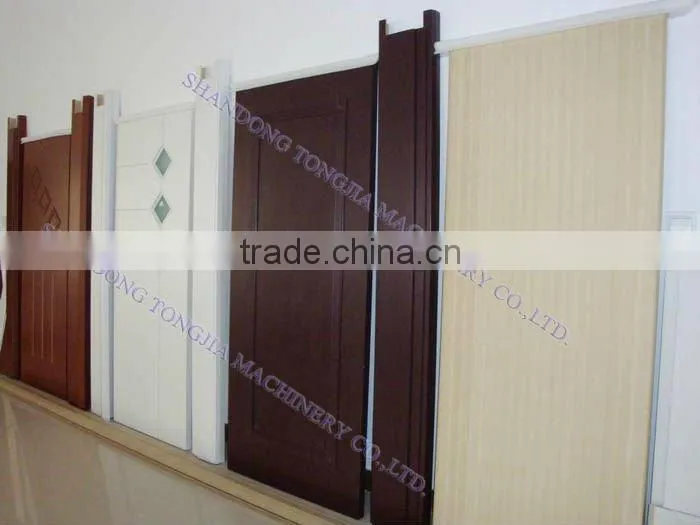

WPC Extruder Panel Door Machine, are designed according to international latest technology, mixed PVC, PP, PE, PS with plant fiber symmetricaly. It adopts high-efficiency conical double-screw extruder with forcible cooling system to extruder and form. The woode plastic panel out from our line has features of green environment protection, damp proof, antisepticise and not distortion, thus suitable for processing method of wood and can be recycled to reuse. It has been widely used in wide door, partition panel, construction template, base plate of container, furnish panel, etc.
Main Technical Specification | |||
Model |
JG-MSB80/156 |
JG-MSB92/188 |
|
Screw dia. |
mm |
Φ80/156 |
Φ92/188 |
Screw quantity |
Piece |
2 |
2 |
Screw speed |
r/min |
1-38 |
1-32.9 |
Main extruder power |
KW |
55 |
110 |
Heating power(approx) |
KW |
36 |
45 |
Output(approx) |
Kg/h |
100-400 |
400-500 |
Main Technical Specification of | |||
Model |
BF600 |
BF900 |
|
duct width |
mm |
600 |
900 |
Draw-off height |
mm |
150 |
150 |
Draw-off force |
KN |
30 |
40 |
Draw-off speed |
m/s |
0-3 |
0-2.5 |
Total power of auxiliary machine |
KW |
350 |
40 |
Cooling water consumption |
m³/h |
9 |
12 |
Compressed air pressure |
Mpa |
0.6 |
0.6 |
Model |
BF600 |
BF1000 |
|
Max. product size |
mm |
600 |
900 |
Draw-off height |
mm |
150 |
150 |
Draw-off force |
kn |
50 |
50 |
Draw-off speed |
m/s |
0-3 |
0-2.5 |
Auxiliary machine’s total power |
kw |
35 |
40 |
Cooling water consumption |
m3/h |
9 |
12 |
Compressed air pressure |
Mpa |
0.6 |
0.6 |
WPC Extruder Panel Door Machine
