Product: diesel generator set single phase diesel generator 15kva
Features
1. All qualified generator sets are subjected to a comprehensive performance test which includes 50% load, 75% load, 100% load, 110% load and to check, verify that all control systems, alarm and shut-down protection.
2. Equipped with battery charger and 24V high performance maintenance-free lead-acid starting batteries and connecting cables.
3. Equipped with industrial silencer and flexible exhaust hose.
4. Equipped with 8-hours operation base fuel tank.
5. Equipped with PEOPLE MCCB circuit breaker.
6. Designed to Comply with ISO8528/GB2820.
7. engine and coupled with Marathon alternator.
Genset Technical Data | |
Prime power |
30 kW |
Standby power |
33kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Noise dB(A) @7m |
100 |
Engine model |
4BT3.9-G2 |
Alternator model |
GM-30-4 |
Diesel Engine Technical Data | |
Engine Model |
4BT3.9-G2 |
Configuration |
4 cycle , 4 cylinders in line |
Aspiration |
Turbocharged |
Bore×Stroke |
102 x120 mm |
Rated speed |
1500rpm |
Displacement |
3.9 L |
Compression Ratio |
16.5:1 |
Prime Power |
36KW |
Speed Governor |
electrical |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
214g/kw.h |
Starter Motor |
DC24V |
Marathon Alternator Technical Data | |
Alternator model |
GM-30-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
30 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400V (Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |

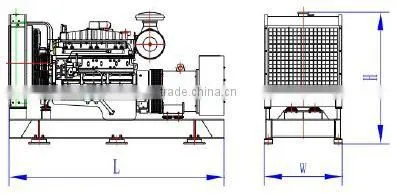

Dimension and Weight
(for reference only)
Overall size (L*W*H): 1760*730*1250 mm
Weight: 850kg
Control System HGM6110
All gensets have a control cubicle (the smart gen HGM6110 as standard) mounted on an isolated support, which has the following features.
Electronic digital control module with monitoring/control facility and warning indicators
Automatic shutdown protection
Emergency stop button (lock-down type)
AC output circuit breaker with over-current protection
DC circuit control switch
The control module display
Generator voltage
Generator voltage
Output frequency
Engine speed
Battery voltage
Engine run-time (Hours)
The control module display for failure information
Overspeed / underspeed
Emergency stop
Low oil pressure
High water temperature
Failure to start
Battery charger failure
Automatic shutdown
Low engine oil pressure
High engine water temperature
Overspeed/underspeed
Failure to start after three attempts
