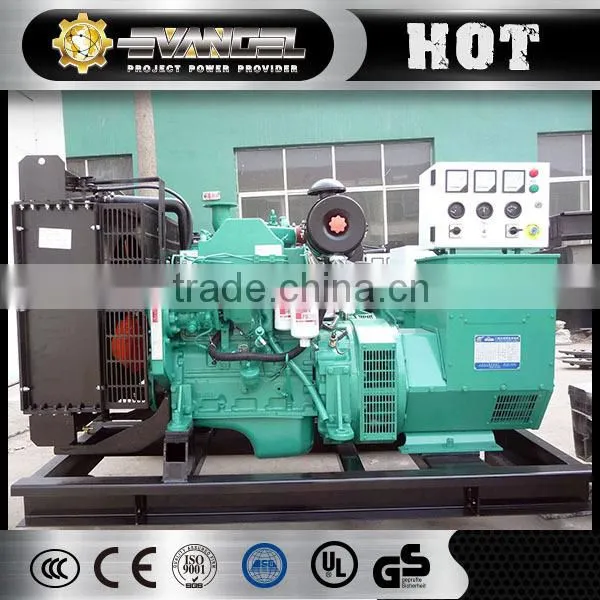

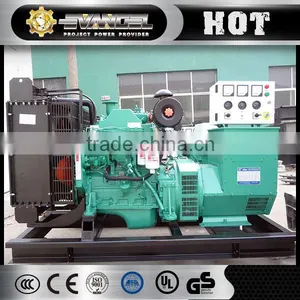

Product: Generator Set diesel generator parts
Genset Technical Data | |
Prime power |
400kW |
Standby power |
440kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Engine model |
KTA19-G3 |
Alternator model |
MPX-400-4 |
Diesel Engine Technical Data | |
Engine Model |
KTA19-G3 |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbocharged after water-cooled |
Bore×Stroke |
159 x 159 mm |
Rated speed |
1500rpm |
Displacement |
19.0L |
Compression Ratio |
13.9:1 |
Prime Power |
403KW |
Standby Power |
448KW |
Speed Governor |
electrical |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
196g/kw.h |
Starter Motor |
DC24V |
Marathon Alternator Technical Data | |
Alternator model |
MPX-400-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
400 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400V (Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
Dimension and Weight(for reference only)
Overall size (L*W*H): 3500*1300*2000 mm
Weight: 3600kg
Control System HGM6110
All gensets have a control cubicle (the smart gen HGM6110 as standard) mounted on an isolated support, which has the following features.
The control module display
Generator voltage
Generator voltage
Output frequency
Engine speed
Battery voltage
Engine run-time (Hours)
The control module display for failure information
Overspeed / underspeed
Emergency stop
Low oil pressure
High water temperature
Failure to start
Battery charger failure
Automatic shutdown
Low engine oil pressure
High engine water temperature
Overspeed/underspeed
Failure to start after three attempts
