Outdoor/Indoor Telecom Cable Distribution Box

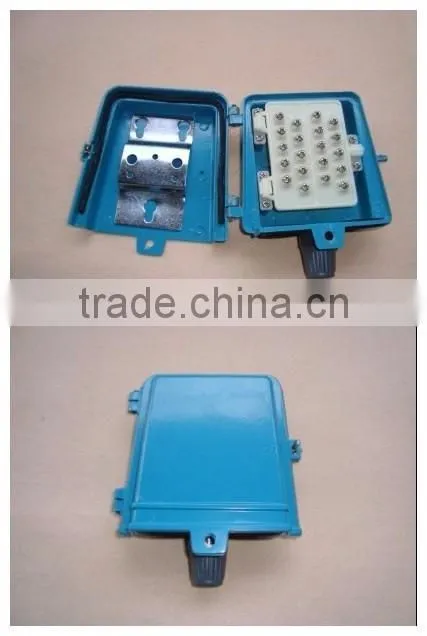

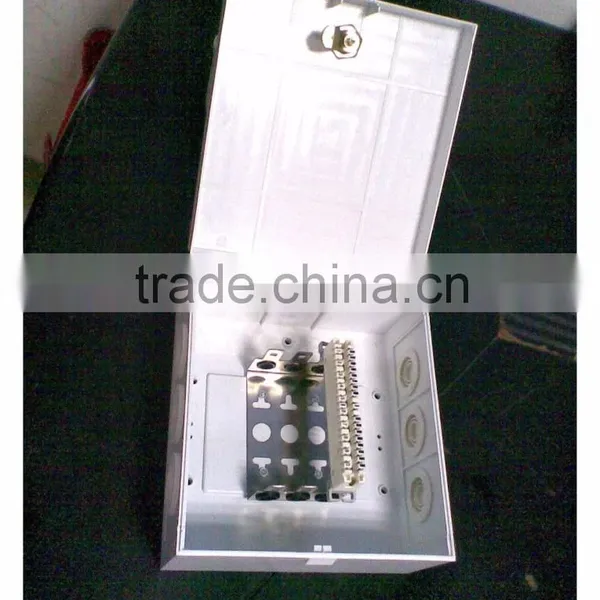

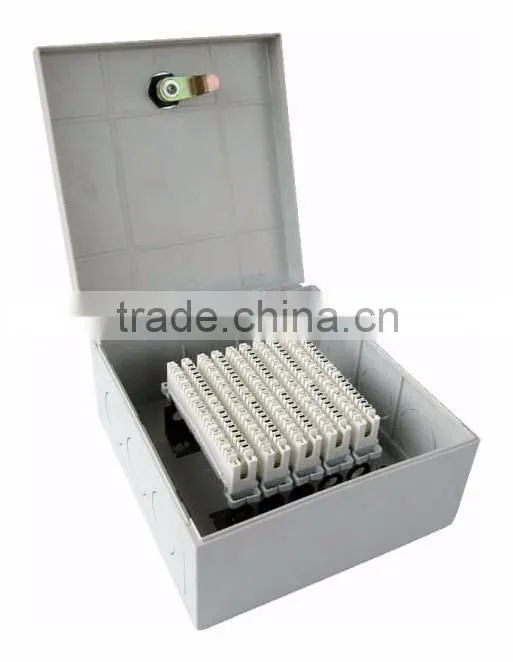

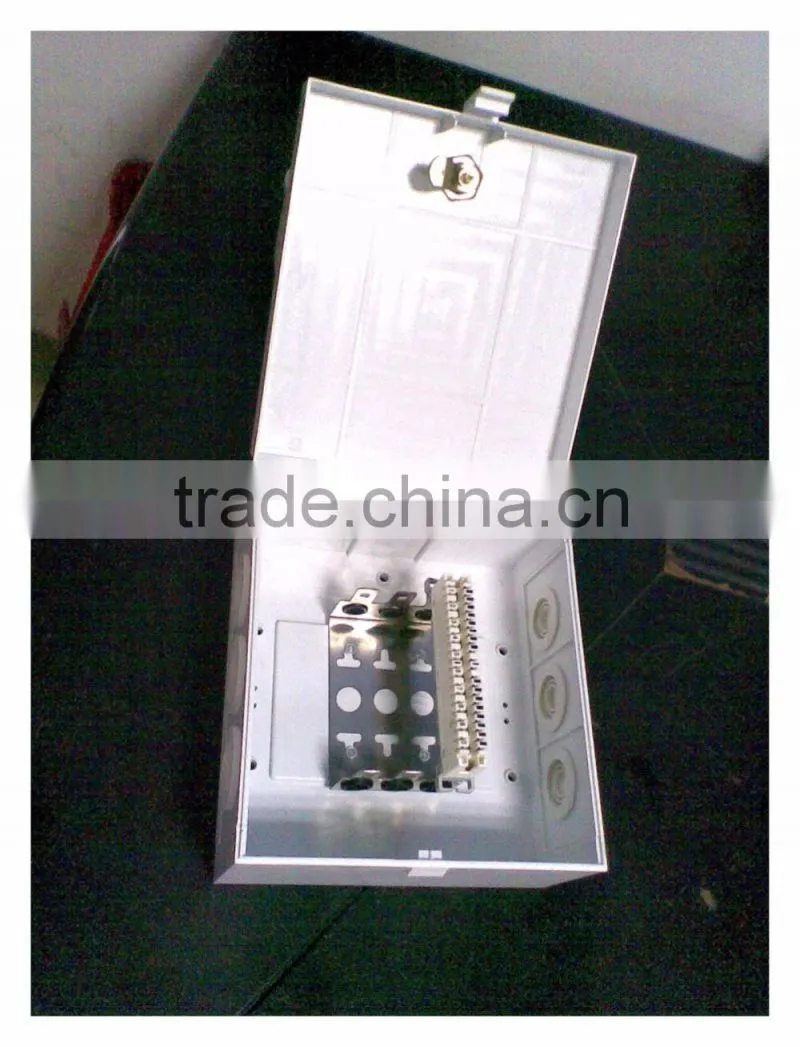

From top to bottom:
Rotary card module: 10 pairs, 20 pairs, 30 pairs
Card contact 10 wires module: 50~10 pairs
1. The product uses advanced rotary snap and crimp splice two kinds of ways, rotary card connection, automatically snap the core wire automatic peeling, automatically cut the excess thread, the contact is not exposed,Contacting convenient and reliable.
2. Terminal board can freely flip, easy to reverse wiring ,can be directly screw clamp pressure line test, test convenient, up and down throughout.
3. The shell is made of aluminum alloy die casting, has strong rust resistance, and install conveniently.
4. Terminal board is made of good quality project ABS . The insulation function is good. Its fire resistance can meet the GB-4609 and FU-0 standard.
5. Order direction: When the products is finished, the other parts have be installed on the box. The customers can use according to the distributing cable capacity.
6. Incoming wire using rotary clip airtight connection methods to ensure that the core is not exposed contacts, touch reliable.
7. Outgoing wire use the screw pressing card, Peeling and cutting the insulation layer is not required. Point of contact
8. Organic silicone grease is seeled at the point of contact, which has anti-corrosion, waterproof, moisture proof, safe and reliable.
9. The shell is made of aluminum alloy or cold rolled plate forming, surface spray, and cable holes with sealing ring, good sealing performance.
Ambient temperature:-55~+55 degree.
relative humidity:<95%
atmospheric pressure:70~106Kpa.
Environment temperature:-25℃-+40℃
Insulation resistance:Standard atmospheric conditions≥5x104M ohm
Contact resistance: Standard atmospheric conditions≤5M ohm
dielectric withstanding voltage: No breakdown and the flying fox phenomenon within one minute under AC voltage 500V.
Product Name |
Model |
Contact mode |
Size(mm) |
Maximum capacity (wire) |
10 pairs distribution box |
XF168-10 |
Rotary card module |
|
10 |
20 pairs distribution box |
XF168-20 |
|
20 |
|
30 pairs distribution box |
XF168-30 |
263*60*174 |
30 |
|
50 pairs distribution box |
XF168-50 |
286*60*179 |
20 |
|
10 pairs distribution box |
XF169-10 |
Card contact 10 wires module |
160*75*160 |
10 pairs |
JPX800B-10H | ||||
20 pairs distribution box |
XF169-20 |
160*75*160 |
20 pairs |
|
JPX800B-20H | ||||
30 pairs distribution box |
XF169-30 |
160*75*160 |
30 pairs |
|
JPX800B-30H | ||||
40 pairs distribution box |
XF169-30 |
205*102*187 |
40/50 |
|
JPX800B-40 | ||||
50 pairs distribution box |
XF169-50 |
205*102*187 |
40/50 |
|
JPX800B-50H |
