Specification
1.Pullback/thrusting:180/180KN.m
2.Engine:97 kw US brand
3.Spindle torque:6000N.m
4.Backreaming diameter:600mm

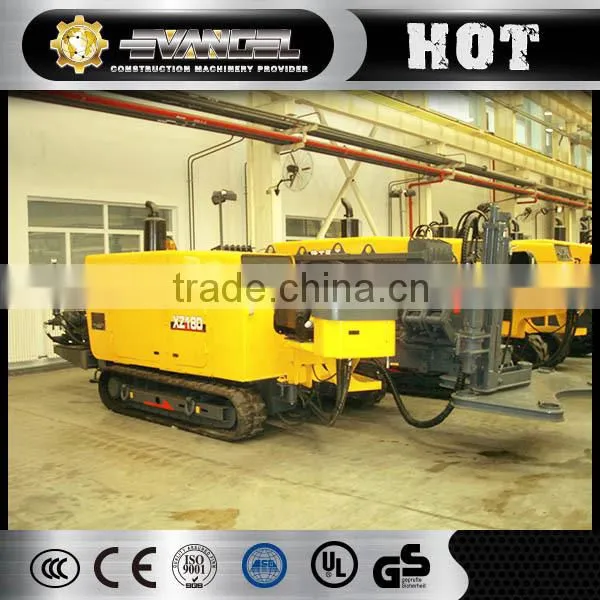

Horizontal Directional Drill Rig Machine XCMG XZ180
XZ180 horizontal directional drilling rig, which has compact structure and attractive appearance, adopts various advanced technologies and the proprietary technologies of the company, and its main peformance parameters and control technologies have reached the world advanced level. The main coponents of hydraulic system, electrical system and transmission system are of top-grade domestic & international brand with high reliability.
|
• Dual speed power head: drilling and pulling at low speed ensure smooth operation; The power head can slide at faster speed to reduce the auxiliary time and improve work efficiency during the assembly/disassembly of drilling stem with empty load.
• Rubber track: the rubber track has minor influence on the road, lawn, and scenic spot.
• Float clamp: the patented float clamp can effectively extend the service life of the drilling shaft.
• Automatic assembly/disassembly: the drill stem can be mounted and dismounted automatically, which improves the work efficiency, reduces the work intensity and thus reduces the number of work staff.
• Automatic anchoring: through hydraulic pressure drive, the cylinder and low speed large torque motor controls the push/pull of the drill stem, and it’s simple and convenient to operate.
• Rotatable control panel: it widens the field of view and reduces operator fatigue.
• Simple to operate: the rotation and push/pull of the power head is controlled separately, and it’s simple and convenient to operate. The operator can master the operation skills through short-time training.

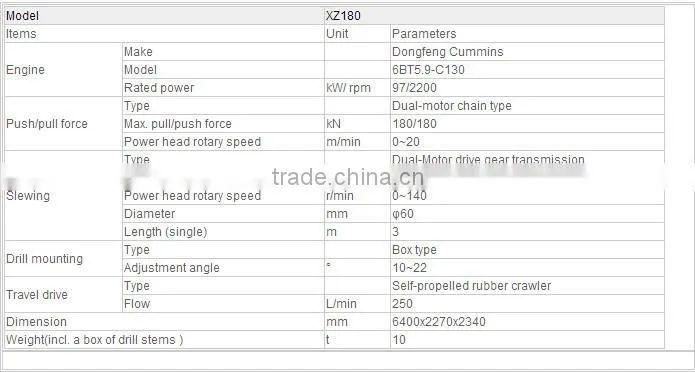

Parameter:
