China Tractor Truck FOTON Farm Tractor TB404

China Tractor Truck FOTON Farm Tractor TB404 thumbnail-1
China Tractor Truck FOTON Farm Tractor TB404 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Evangel (Shanghai) Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 40HP
Certificate CE
Brand Name FOTON
Model Number TB404
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

Specification

1. High quality, good price
2. Quick delivery
3. One year warranty
4. Spare parts for sale too

Product Description

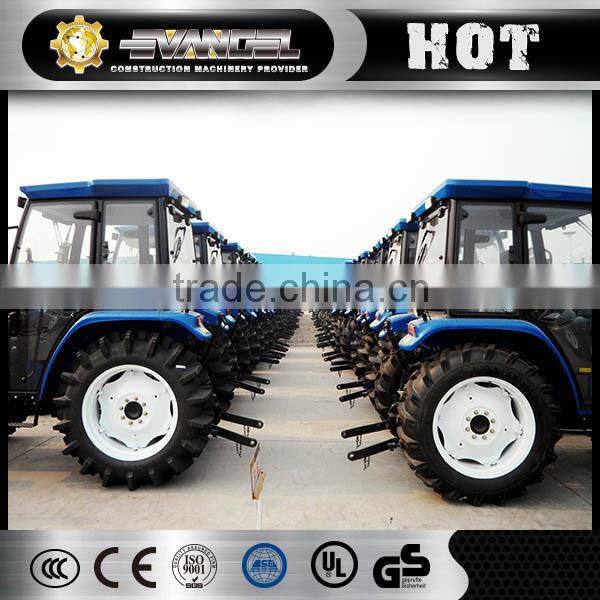

China tractor truck FOTON farm Tractor TB404



Main Features



1. The fan and heater cab are optional;
2. 955mm narrow tread model can better meet the operational requirements;
3. U.S. ACTUANT combination instruments are optional;
4. The transmission with gear combinations of 8+8, 16+8, and 12+12 has a variety of gear selections, and a reasonable velocity distribution;
5. Chassis uses the four-planetary gear differential, and the power is upgraded to 60 hp;
6. EC, EPA and GOST certification models are available

Technical parameters


Drive type

4*4

Overall dimension(L * W * H)

3980*1650*(2130/2520)

Wheelbase (mm)

1990

Track(front/rear)

1250/1200-1500

Track(front/rear) regulating method

non-adjustable /stepless

Min.Ground clearance(mm)

310

Min.operating weight (with cab)(kg)

2335

Min.operating weight (without cab)(kg)

2135

Counterweight (max)(front/rear)

108.144/300.360

Gears(forward/reverse/creeper)

8+4/8+8/16+8/12+12

Theoretical speed of each gear(forward/reverse)

2.65-34.78/3.94-12.1;2.65-34.78/2.33-30.49;0.43-34.78/0.65-12.10;2.46-32.73/2.15-28.69

Engine

Brand

Lijia, Xinchai, Quanchai

Engine type

4-cylinder

Intake mode

Natural intake

Number of cylinders

4

Bore

90

Stroke

110

Displacement(L)

2.54

Engine rated power kW@rpm

29.4

Rated speed

2400

Type of air cleaner

Dry or wet type

Type of cooling system

Forced water-cooled

Max. Torque@ revolving speed (rpm)

146@1600~1800

Specific fuel consumption rate at rated conditions (g/kW.h)

≤248

Fuel tank capacity (L)

38

Steering brake system

Type of steering system

Hydraulic/mechanical

Type of steering gear

Cycloid orbitrol steering gear

Type of braking system

Disc type



We can supply all kinds of construction machinery, trucks and spare parts. Welcome to contact us for more information!

Our products:

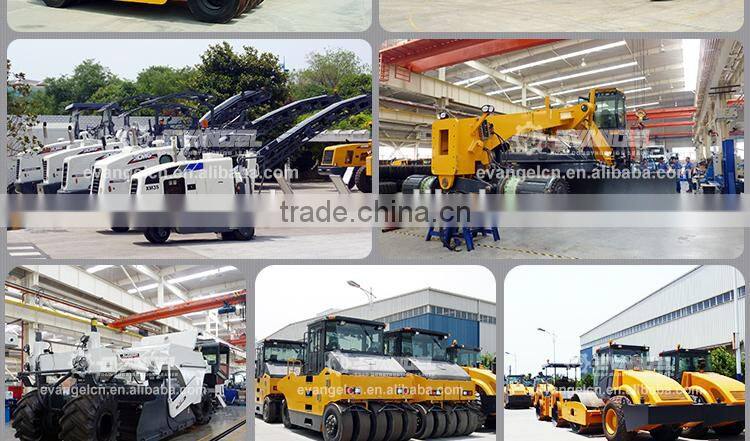

1) All kinds of China Top Brand Construction Machinery.

(Brands: XCMG, Sany, Liugong, Foton, Lutong, Shantui, YTO, Changlin, etc.    Types: wheel loader, excavator, cranes, paver,

road roller, tractor, etc.)

2) ALL kinds of trucks.

(Brands: Sinotruk Howo, Beiben, Shacman, Foton, Dongfeng, etc.          Types: dump truck, tractor truck, concrete mixer truck,

cargo truck, trailer, etc.)
