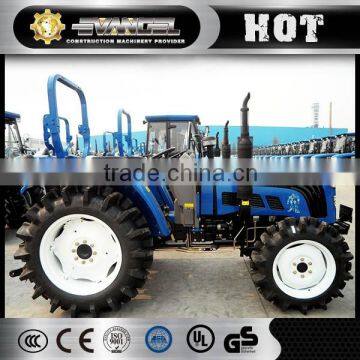

Hot! Foton TB254E 4WD 25HP 4x4 best small agricultural tractor with price
Parameter of Foton 254 Farm Tractor for Sale:
foton 254 tractor prices
Drive type: 4*4
Overall dimension(L * W * H): 3225*1440*1900 mm
Engine power: 18.8kw
Drive type |
4*4 |
Overall dimension(L * W * H) |
3225*1440*1900 |
Wheelbase (mm) |
1639 |
Track(front/rear) |
1243/960~1460 |
Track(front/rear) regulating method |
Fixed/stepless |
Min.Ground clearance(mm) |
270 |
Min.operating weight (kg) |
1400 |
Counterweight (max)(front/rear) |
54/124 |
Gears(forward/reverse/creeper) |
8+2/8+8/16+4 |
Theoretical speed of each gear(forward/reverse) |
1.72-26.02/2.25-10.39;1.72-26.02/1.61-24.24;0.37-26.02/0.5-10.78 |
Engine | |
Brand |
Laidong, Jiangdong, lijia |
Engine type |
In-line, four-stroke |
Intake mode |
Natural intake |
Number of cylinders |
3 |
Bore |
70 |
Stroke |
105 |
Displacement(L) |
1.53 |
Engine rated power kW@rpm |
18.8 |
Rated speed |
2350 |
Air cleaner type |
Dry or wet type |
Type of cooling system |
Water-cooled |
Max. Torque@ revolving speed (rpm) |
≥88/1650 |
Specific fuel consumption at rated conditions (g/kW.h) |
≤244 |
Fuel tank capacity (L) |
29 |
Steering brake system | |
Type of steering system |
Hydraulic/mechanical |
Type of steering gear |
Cam and roller steering gear/cycloid orbitrol steering gear |
Type of braking system |
Shoe type |
Transmission system | |
Clutch type |
Single-action/double action |
Gearbox type |
Two-axis mechanical gearbox |
Gearbox shift mode |
Shift sleeve +sliding gear |
Type of central transmission |
Spiral bevel gear type |
Final transmission mode (front/rear) |
Built-in type, single-stage spur gear |
Walking system | |
Frame type |
Frameless |
Working device | |
Type of hydraulic suspension system |
Open-center, separated type |
Type of linkage |
Three point rear linkage |
Linkage classes |
Class 0 or class I |
Lift capacity(610mm point))(kN) |
5.2 |
Regulating mode |
Positioning control and floating control |
Type of PTO shaft |
Non-independent type |
The number of PTO shaft splines |
6 splines/8splines |
Outer diameter of PTO shaft spline |
φ35/φ38 |
PTO shaft speed |
540/760 or 540/1000 |
Hydraulic system | |
Hydraulic output flow (L/min) |
26 |
Feature of Foton 254 Farm Tractor for Sale:
1. The use of a simple floor structure and an external divider is easy for maintenance;
2. The safety frame is optional;
3. The single-acting or double-acting clutch is optional;
4. The various gear configurations, such as 8+2, 8+8, and 16+4 are optional, and the velocity distribution is reasonable to meet different operating needs;
5. The synchronized shuttle shift is optional, and the operation is easy, flexible and reliable;
6. The operations of hydraulic steering, the mandrel cylinder front drive axle are easy and flexible.
