pvc steel wire reinforced pipe fabricating machine
- 0 per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PVC |
Screw Design: | Single-screw | Automatic Grade: | High | Place of Origin: | Shandong, China |
Brand Name: | Alice | Model Number: | SJ65/30 | Voltage: | 380v |
Power(W): | 75kw | Dimension(L*W*H): | 10*2.5*1.7m | Weight: | 3.2 tons |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
pvc pipe fabricating machine1.hose size:25-50mm
2.Capacity:100kg/h
3.Screw diameter:65mm
pvc pipe fabricating machine
1.Product information:
Process Flow of the machine:
Single Screw Extruder → Steel Wire Spring Winding Machine → Head Die→ Cooling Trough→ Hauling Machine→Double Pedrail Winder → Final Product
Characteristics of the Pipes produced:
The machine is used to produce PVC steel wire reinforced transparent pipes. The pipe wall is made of transparent PVC plastic. In the pipe inner-wall, there is spiral steel wire.The kind of pipe has the advantage of extrusion resistance, corrosion resistance, static electricity resistance, anti-high pressure and good running.
Application:
It is suitable for the conveying high pressure or combustible gas and liquid, heavy suction and delivery of liquid sludge. It is mainly used in fields machinery, such as chemical industry, building, irrigation and vacuum pumps,etc

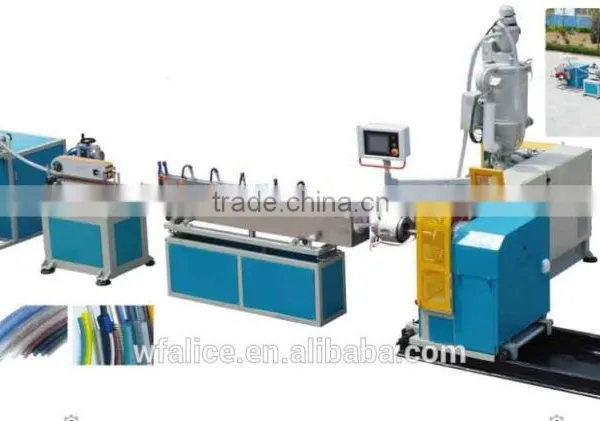

2. Machine photo:
3. Technical data:
Model | Screw Diameter(mm) | L/D | Main Motor(KW) | Central Height(mm) | Pipe Diameter(mm) |
SJ-45 | 45 | 30 | 15 | 1000 | 12-20 |
SJ-65 | 65 | 30 | 37 | 1000 | 25-38 |
SJ-90 | 90 | 30 | 75 | 1000 | 50-75 |
Features :
- It adopts high speed and efficient extruder,ensuring the plasticizing quality and output;
- Special designed steel wire winding machine makes speed high and winding even and long continuous production time;
- Special designed coating die head maks high transparency,even distribution of steel wire,and length adjustable;
- It adopts imported electrical elements for stable and reliable running;
- All the control buttons are designed in integrated type for easy operation.
4.Manufactured pipe:
5.Factory Show of Alice Polymer
6.Main products
Our main products are all kinds of pvc hoses,including PVC steel wire hose,PVC lay flat hose,
PVC twin-welding hose,PVC fiber reinforced hose,PVC garden hose,PVC suction hose,plastic
machine and also we offer OEM services.
7.Dear friends ,if you are interested in our products,please contact me.
