275W CIGS FLEXIBLE CIGS THIN FILM SOLAR PANELS 12.5% Efficiency
US$ 600.00 - 600.00
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SUNHARMONICS
Model Number:
SY-FLEX275
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FLEXIBLE CIGS THIN FILM Solar CellsUS$ 6 - 7MOQ: 1000 Pieces -
250W CIGS FLEXIBLE CIGS THIN FILM SOLAR PANELSUS$ 540.00 - 540.00MOQ: 500 Pieces
-
90W FLEXIBLE CIGS THIN FILM SOLAR PANELSUS$ 220.00 - 220.00MOQ: 500 Pieces
-
FLEXIBLE CIGS THIN FILM SOLAR PANEL for Boats, Sailboats and Yachts BatteriesNegotiableMOQ: 10 Pieces
-
FLEXIBLE CIGS THIN FILM SOLAR PANELS for Motor VehicleNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
SUNHARMONICS
Model Number
SY-FLEX275
Type
Other, Flexible CIGS Film Solar Module
Product Description
|
◊ Designed specially for rooftops
Integrates with roofing surface
Flexible module
Light weight
High performance
Covers entire roof area
|
◊ APPLICATION
- Directly onto metal Standing-Seam roofs
- Roof membranes
- Roofs rated at less than 5-10kg/m2 additional load
- Curved roof / architectural structures
- Mobile applications - RVs, Trucks
- Landfills
- Larger Mobile applications - Boats, Containers
- Tensioned-Fabric structures
- Corrugated roofs rated at 7-10kg/m2
- Elastomeric Coated Roofs
- Poles and Towers
- Architectural glass
- Larger Shingles
◊ Electrical Specifications
| Capacity rating | Pmax | 275 W |
| Tolerance of Pmax | % | +10 / -7% |
| Module aperture area efficiency | % | 11.5% |
| Rated voltage | Vmpp | 51.5 V |
| Rated current | Impp | 5.3 A |
| Open circuit voltage | Voc | 67.6 V |
| Short circuit current | Isc | 6.3 A |
◊ Mechanical Specifications
| Dimensions | 5745x 494 x <3 mm (226 x 19.4 x <0.12 in) |
| Weight | 7.2 kg without adhesive (2.5 kg/m2) |

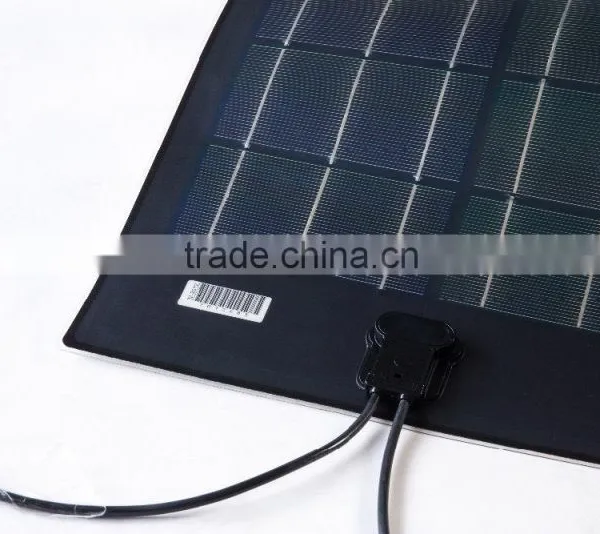

| Junction Box - Top Mounted | TE Connectivity SOLARLOKTM Micro Junction Box |
| Cables | 4 mm2 dual rated with SOLARLOKTM connectors |
| Junction Box - Bottom Mounted | MC-JM/FM (MC4 Connectors) |
| Front Sheet | Non-stick ETFE |
| Solar Cells | 108 CIGS cells (210 x 100 mm) |
| Adhesive | ADCO HelioBondTM PVA 600BT butyl mastic |
| Hot Spot Protection | Bypass diodes at each cell; 1 at junction box |
| Materials | Lead free and exempt from RoHS requirements |
| Maximum Series Fuse Rating | 10 Amp |
| Color Options | Black (B) or White (W) backsheet behind cells |
◊ Operating Conditions
| Temperature Range | -40°C to + 85°C |
| Maximum System Voltage | 1000VDC IEC, 600VDC UL |
◊ Warranty
| Materials and workmanship -25 years |
| Power output - 25 years (90% @ 10 yrs; 80% @ 25 yrs) Limited Warranty |

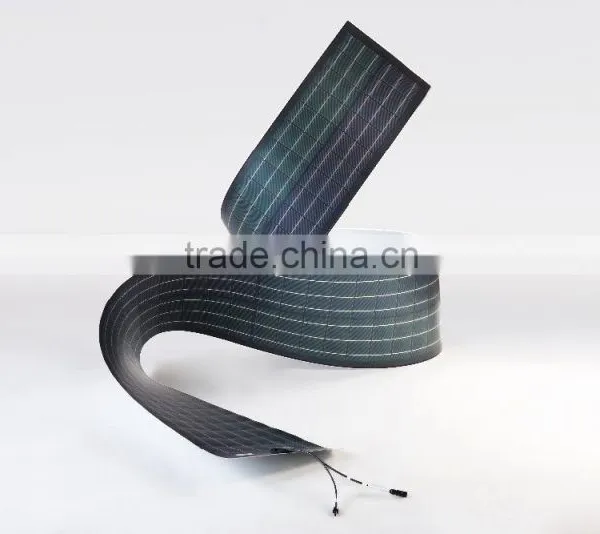

Product Photos
