Help CenterS90 Mobile EFT Pos Terminal
Related Products
Specifications
1.Large memory capacity and white backlit display.2.High-speed thermal printer and multi-application support
3.Sim card

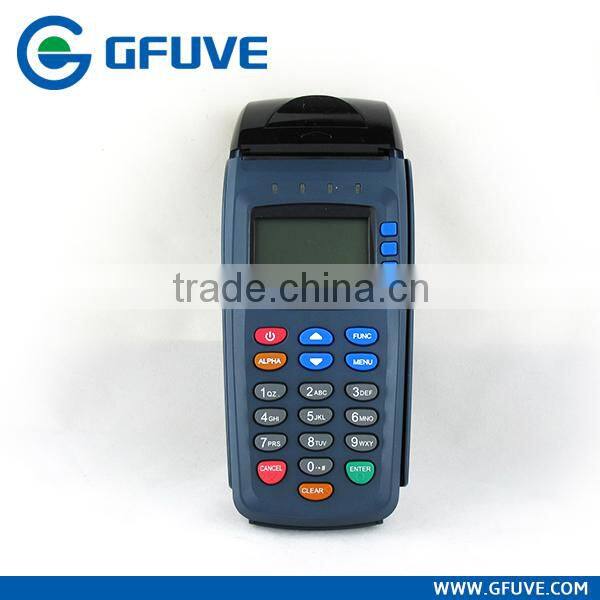

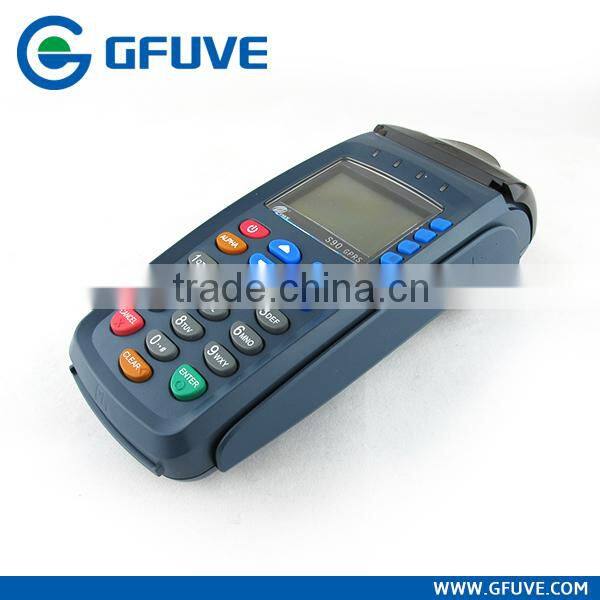

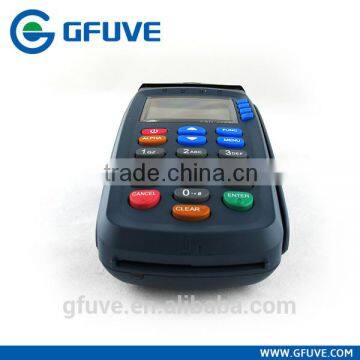

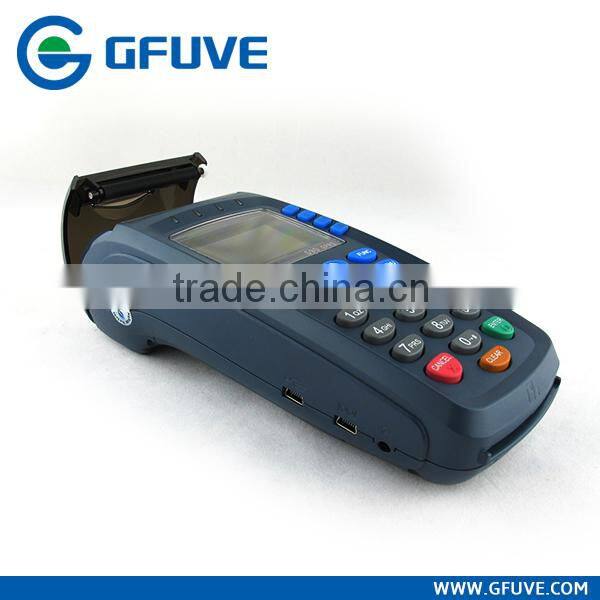

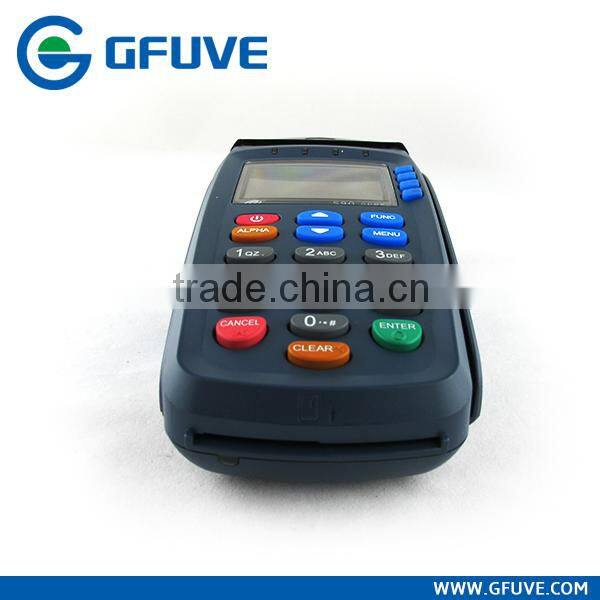

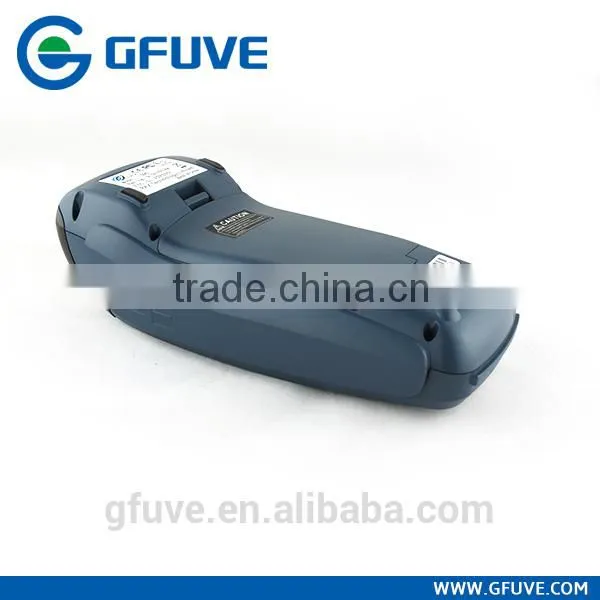

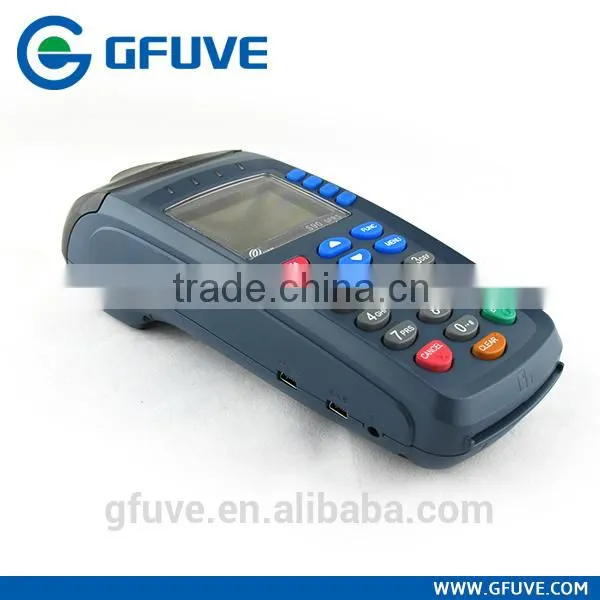

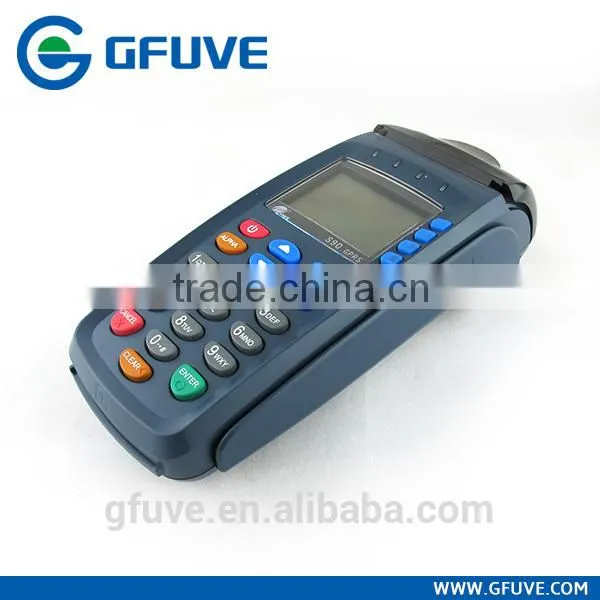

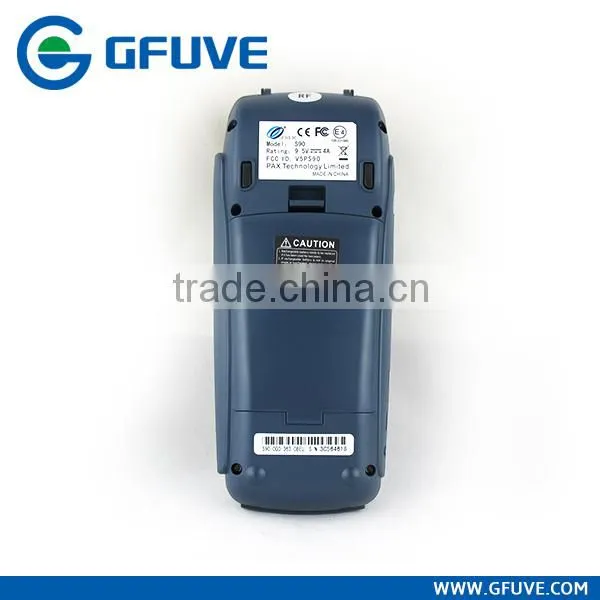

S90 Mobile eft pos terminal
S90 mobile POS terminal has been designed to offer superior wireless performance, embedded in a ruggedized yet stylish form factor. With options for single SIM or dual SIM functionality, and with a high capacity Li-lon rechargeable battery, the S90 is one of the most popular mobile terminals for merchants today.
The GS90 is PCI certified and delivers secure transactions with a state of the art 32-bit processor to support DUKPT, Master / Session, DES, 3DES.
The ARM11 microprocessor assures faster, reliable transactions anywhere and every time. It offers an unparalleled array of wireless connectivity configurations (GPRS, WCDMA, CDMA).
FEATURES
Large memory capacity
Large, white backlit display
High-speed thermal printer
Multi-application support
Large capacity battery
Dual SIM functionality
SPECIFICATIONS
Processor
32-bit ARM11
Memory
standard: 192MB (128MB Flash, 64MB DDR)
Display
128 pixel x 64 pixel LCD
White backlit
Keypad
10 numeric keys & 8 function keys
4 ATM keys, 1 power ON / OFF key
Printer
Thermal graphic printer, Speed: 18 lines / second
Standard paper roll: 58mm (2.25 in.)
Magnetic Card Reader
Track 1 / 2 / 3, bi-directional, ISO7812
Smart Card Reader
1 user card, EMV
Contactless Card Reader (optional, built in)
MasterCard PayPass
ISO / IEC14443 Type A/B, Mifare® Compliant
Maximum effective distance up to 4cm
4 RF Indicators: Red, Yellow, Blue, Green
Bar Code Reader(optional)
1 D bar code scanner
Card Slots
2 SAM Slots, ISO7816
2 SIM card slot
Communication
Wireless: GPRS or 3G(WCDMA)
Modem (optional)
Sync. (HDLC up to 9600bps)
Async. (V.32 / V.32bis, up to 14400bps)
Peripheral Ports
1 x RS232, 1 x Line, 1 x mini USB(OTG), 1 x power charge
Security
PCI PTS 3 x approved
DUKPT, Master / Session, DES, 3DES
ANSI / ISO9564 format 0, 1, 3
PIN ciphered key algorithm
ANSI X9.9 / X9.19 MAC algorithm
Battery
Li-ion battery, 1800mAh, 7.4V
Environmental
0°C to 50° C (32°F to 122° F) operating temperature
-20°C to 70° C (-4°F to 158° F) storage temperature
10% to 90% relative humidity, non-condensing
Voltage
Input: 100~240VAC, 50Hz / 60Hz, 1.0A
Output: 9.5VDC, 4A
Physical
Length: 199mm
Width: 87mm
Height: 61.5mm
Weight
504g
Accessories (optional)
Leather Casing, Charging Dock, Car Jack Charger
Certifications
PCI PTX 3.X
MasterCard PayPass
Visa payWave
EMV(Level1 & Level2)
PBOC
qPBOC
Note:Supply only forcountries where there is no PAX distributors
