Help CenterGF2000P Mobile Andriod PDA With Built-in Printer
Related Products

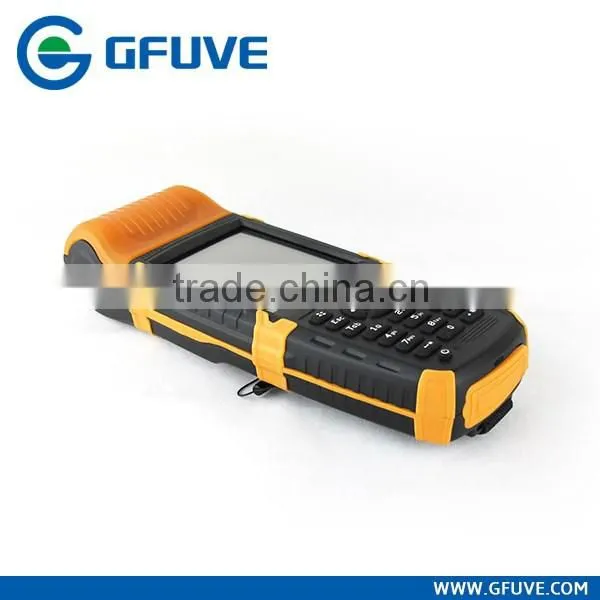

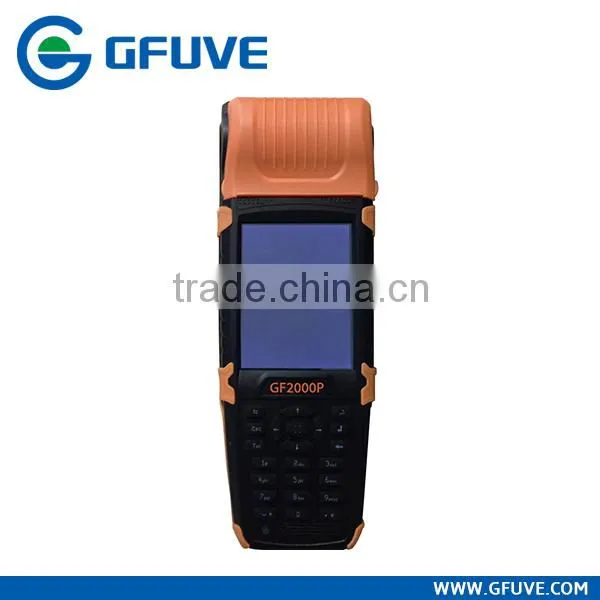

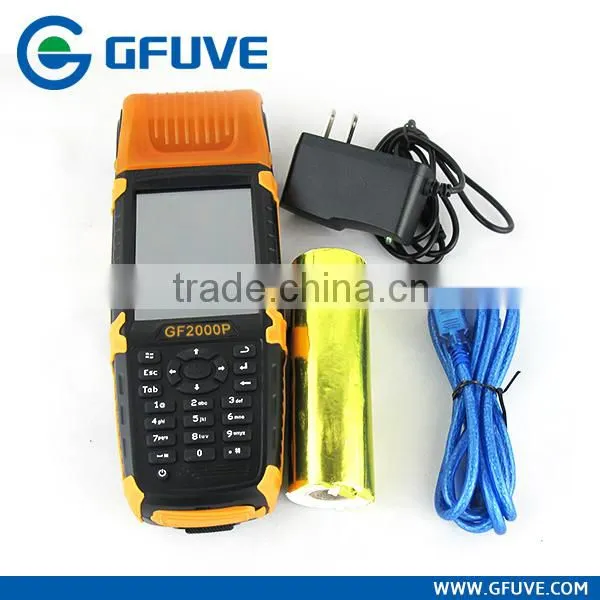

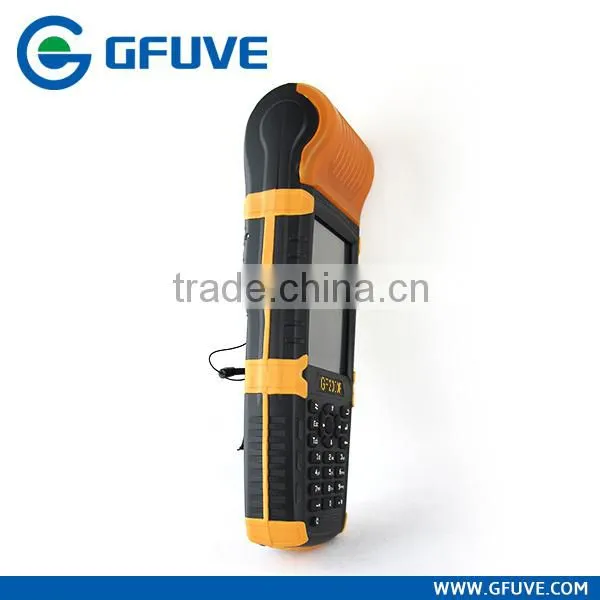

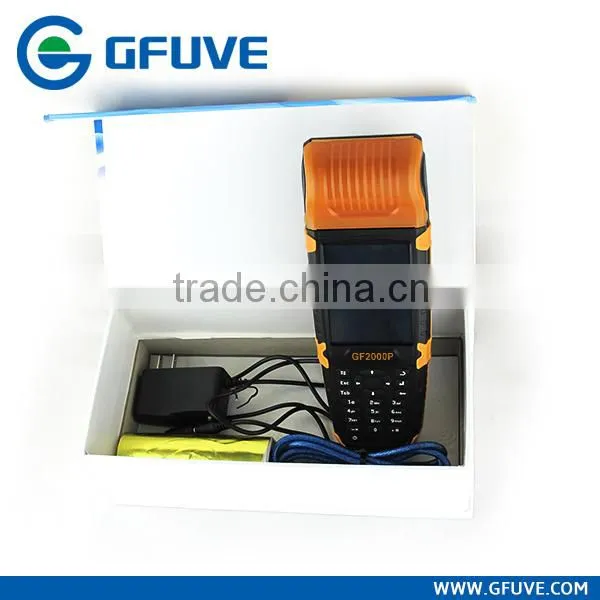

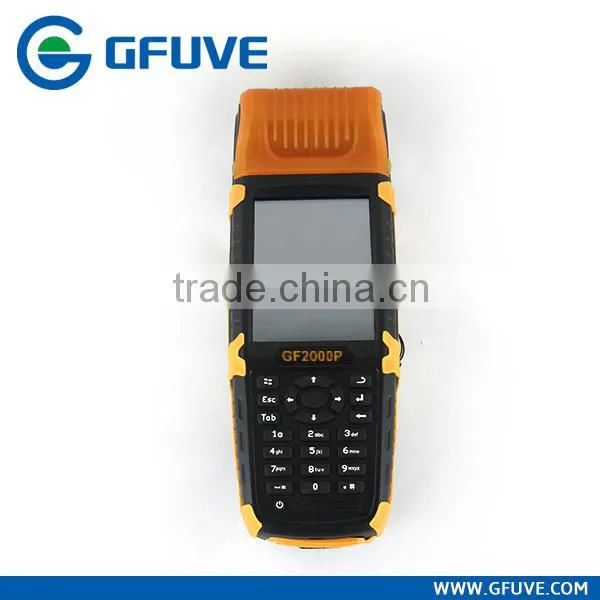

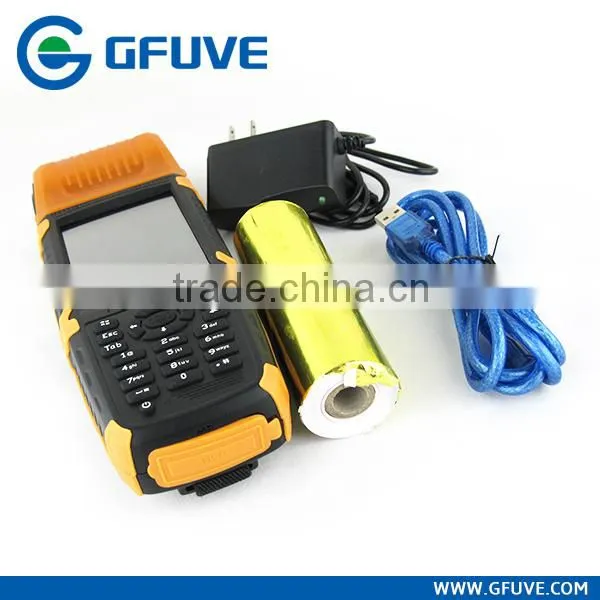

GF2000P Mobile Andriod PDA with built-in printer
Mobile Andriod PDA with built-in printer ,1GHZ CPU ,Seiko Printer
Used for Logistic Warehouse Management,Power Feild For Meter Reading
Andriod 4.0 OS, Easy for developping
1Ghz Cpu ,Runs faster
Seiko printer speed high
Free SDK is provided for customers' secondary development; Also we can customize the application software if required.
As specialized in this field for many years, we have accumulated a lot of experience in the following field
1. Travel & Ticket billing for Air Ticket, Railway, Subway, Taxi, Bus, Movie.
2. Electricity, Gas, meter reading and billing
3. Hotel/Supermarket/Retail/Restaurant/Convenience store management.
4. Lottery.
5. Surveying.
8) Other applications.
Main features:
- Android 4.0 or Wince 6.0operating system, easy to develop applications for them.
- 1G Hz ARM11 CPU makes sure the fast operating speed of the device.
- Seiko Printer 8/mm(203dpi)gives you a good resolution of the printing.
- GPRS/WCDMA/CDMA can be customized as your requirement
- RF/HF/UHF can be customized to match your system
- 1D/2D Barcode Supported
Characteristics |
|
|
|
|
|
CPU |
ARM11 1G Hz |
|
Memory |
2G |
|
Operating system |
Android 4.0 |
|
Communication |
USB2.0, 38K Infrared (Can transfer as far as 12 m.) |
|
External dimension |
200(l)*60(w)*50(h) mm |
|
Weight |
includes standardbattery320 g |
|
Display screen |
3.5-inch touch screen, 640 *480 dots |
|
Keyboard |
25Silicone Keyboard |
|
Battery |
Rechargeable battery2000mA/7.2 |
|
Expansion Slots |
MICRO SD card |
|
SIM card slot |
2 slots |
|
Audio |
High-volume speakers |
|
Camera |
300pixels, LE D flashlight |
|
Operating environment |
|
|
Working temperature -20℃to 50℃ |
|
|
Storage temperature |
-25℃ to 70℃ |
|
Humidity: |
5%RH - 95%RH(o condensation) |
|
Drop Specifications |
6 surfaces can withstand drops from 1.5 meters to concrete impact |
|
Scroll to specifications |
1,000 times 0.5 meters, six rolling contact surface |
|
Sealed environment |
IP64 |
|
|
|
|
E-Tag RF13.56mhz |
Supported Standards:EPC Gen 1 (0kind,1kind)and Gen 2 |
|
|
(Optional) |
Low working frequency:125kHz |
|
Tabdomining :EM 125KHz |
|
|
Working frequency of high frequency:13.56MHz |
|
|
protocol standard:ISO14443A/B,IS015693, |
|
|
Nominal read range:5.0cm to 10cm |
|
|
Rated write scope:5.0cm to 10cm |
|
|
Range:From the front of the device from the 70 ° angle (according to the band) |
|
|
Barcode Reader |
Optical Resolution: 0.005 inches minimum bar width |
|
|
(Optional)
|
Rotation angle: vertical deviation angle + / -30 |
|
Tilt angle: the angle from normal + / -65 ° |
|
|
Offset visual tolerance: deviation from the normal angle of + / -60 ° |
|
|
Ambient light: Sunlight: 8,000 ft.candles (86,112 Lux) |
|
|
Artificial light:450ft.candles(4,844Lux) |
|
|
Scanning Frequency: 50 scans per second (+ / -6) times (two-way) |
|
|
Scan Angle: 46.5 ° (standard) |
|
|
Laser power: 1.0 mA (standard) |
|
|
Reading accuracy:Laser greater than 6 mil |
|
|
Laser Safety: IEC 2 / FDA Ⅱ grade, standards compliance IEC60825-1/EN60825-1 |
|
|
GPS |
Accuracy of 3 m |
|
|
Wireless Communications (Optional) |
GSM/GPRS/EDGE: GSM850/EGSM900/DCS1800/PCS1900 WCDMA/HSDPA:2100M(band I),1900M(band II),850M(band V)CDMA2000 |
|
Wireless Module (Optional) Customized |
IRDA RF HF UHF |
|
|
|
|
Seiko Printer |
Paper Diameter:45mm |
|
Printing Method:Thermal line |
|
|
Resolution:8/mm(203dpi) |
|
|
Dots per line: 384dots,32 English characters/ line |
|
|
Print contents:Chinese, Numbers, English, all kinds of symbols |
|
|
Printing speed:50mm/s(adjustable) |
|
|
The way loading paper:Clamshell type paper |
|
|
Paper out test:When the printer runs out of paper function sounds |
|
|
Black Labeltest:yes |
|
|
| ||
