Specifications

Read data of electric energy meter via IR;
Support a bar code scanning;
Support WIFIaaBluetoothaaGPRS, and so many communicati

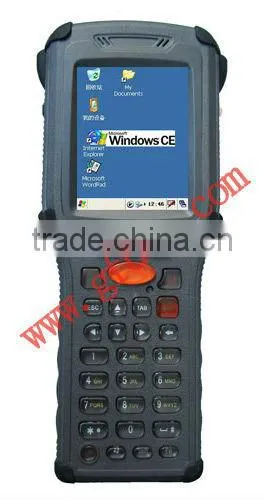

GF800D Handheld Unit For IR Meter





Overview

Operation system:WINCE 5.0
Scan module:IRDA
Communication ports:USB2.0/RS232

Features

GF800D is a professional terminal that is design for electronic meter reading. This terminal has the stability of the data collection and the characteristics of data storage.
Using WINCE 5.0 operation system, developing the application software easily;
have high standard design of industrial level and you can use the terminal in bad conditions;
the side of terminal has a seal and attaching rubber, it make the terminals waterproofing and dust-free;

Read data of electric energy meter via IR;

Support a bar code scanning;

Support WIFI,Bluetooth,GPRS, and so many communications;

Support 433M RFID module;
support the communication functions of USB2.0,RS232.

Specification

Specification	GF800D
CPU	ARM 32bit 405MHz
Memory	RAM:512M
	Flash ROM: 64MB
Display	2.8 Inch TFT display 320×240 pixels with touch screen
Keypad	27 keypads
Communication ports	USB2.0,RS232,RS485,IR
Scan module	IRDA
Physical parameter
Battery	3.7V lithium battery, 4400mAH
Drop height range	1.5 M
Weight	420g(including battery)
Dimensions	196(L)×58(W)×42(H)mm
Environment
Work temperature	-20°C ~ + 50°C
Storage temperature	-30°C ~ + 70°C
Work humidity	5% - 90% (without condensation)
Storage humidity	5% - 95% (without condensation)
Sealed classes	IP65
The specifications of laser security	Meet IEC Class 2/FDA ClassⅡ,IEC60825-1/EN60825-1
