GF800D Mobile Data Terminal
- Beijing Shanghai Shenzhen
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | GFUVE | |
| Model Number | GF800D |
Product Description
Specifications
Read data of electric energy meter via IR;Support a bar code scanning;
Support WIFIaaBluetoothaaGPRS, and so many communicati

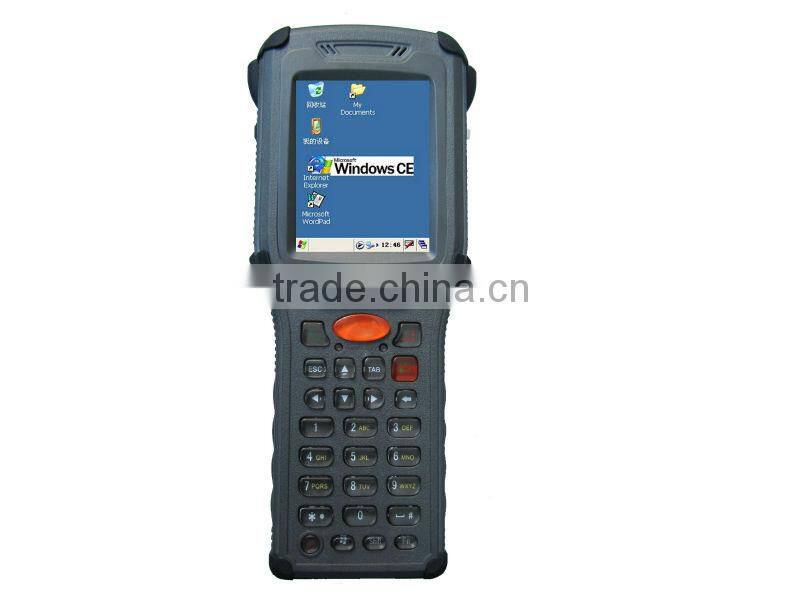

GF800D Mobile data terminal
Overview
Operation system:WINCE 5.0
Scan module:IRDA
Communication ports:USB2.0/RS232
Features
GF800D is a professional terminal that is design for electronic meter reading. This terminal has the stability of the data collection and the characteristics of data storage.
Using WINCE 5.0 operation system, developing the application software easily;
have high standard design of industrial level and you can use the terminal in bad conditions;
the side of terminal has a seal and attaching rubber, it make the terminals waterproofing and dust-free;
Read data of electric energy meter via IR;
Support a bar code scanning;
Support WIFI,Bluetooth,GPRS, and so many communications;
Support 433M RFID module;
support the communication functions of USB2.0,RS232.
Specification
Specification | GF800D |
CPU | ARM 32bit 405MHz |
Memory | RAM:512M |
Flash ROM: 64MB | |
Display | 2.8 Inch TFT display 320×240 pixels with touch screen |
Keypad | 27 keypads |
Communication ports | USB2.0,RS232,RS485,IR |
Scan module | IRDA |
Physical parameter | |
Battery | 3.7V lithium battery, 4400mAH |
Drop height range | 1.5 M |
Weight | 420g(including battery) |
Dimensions | 196(L)×58(W)×42(H)mm |
Environment | |
Work temperature | -20°C ~ + 50°C |
Storage temperature | -30°C ~ + 70°C |
Work humidity | 5% - 90% (without condensation) |
Storage humidity | 5% - 95% (without condensation) |
Sealed classes | IP65 |
The specifications of laser security | Meet IEC Class 2/FDA ClassⅡ,IEC60825-1/EN60825-1 |
