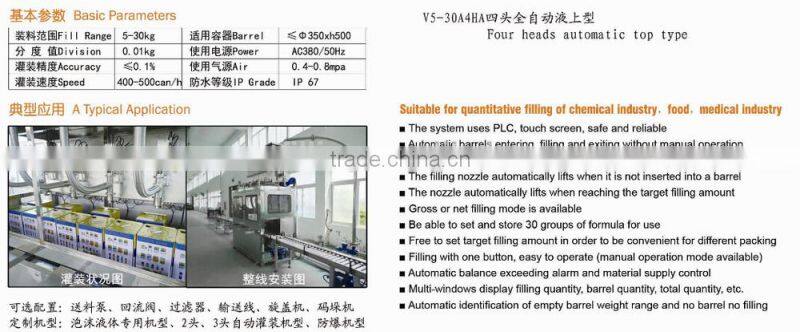

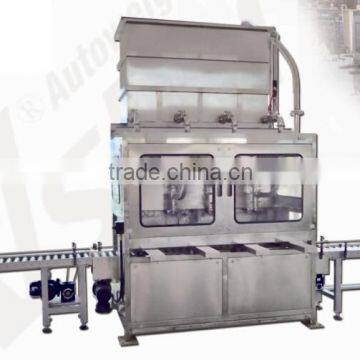

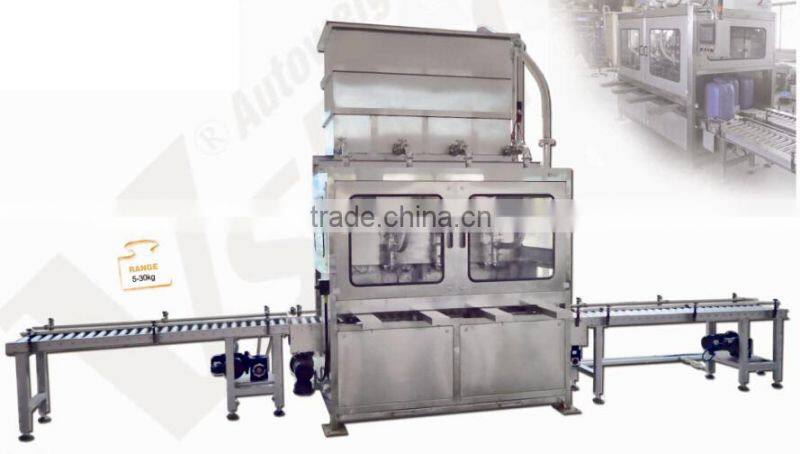

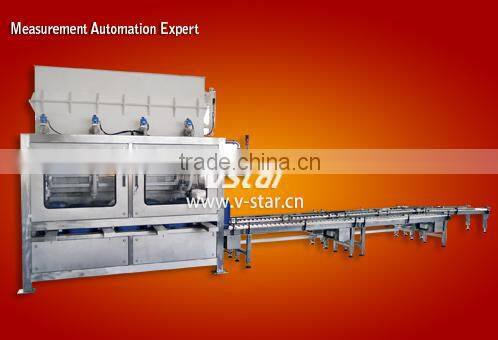

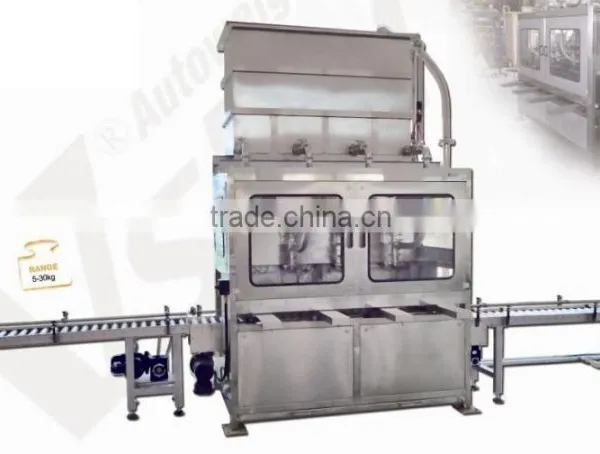

Automatic Strong Acid liquid Filling Machine V5-30AF4HA
1. Suitable for quantitative filling of sulfuric acid, hydrofluoric acid, etc.
2. The system uses PLC, touch screen, safe and reliable
3. Automatic barrels entering, filling and exiting without manual operation
4. Automatic 2-shift filling with high accuracy
5. The filling nozzle automatically lifts when it is not inserted into a barrel
6. The nozzle automatically lifts when reaching the target filling amount
7. Gross or net filling mode is available
8. Be able to set and store 30 groups of formula for use
9. Free to set target filling amount in order to be convenient for different packing
10. Filling with one button, easy to operate (manual operation mode available)
11. Automatic balance exceeding alarm and material supply control
12. Multi-windows display filling quantity, barrel quantity, total quantity, etc.
13. Automatic identification of empty barrel weight range and no barrel no filling
Basic Parameters
Fill Range |
5-30kg |
Barrel |
≤Φ350×h500 |
Division |
0.01kg |
Power |
AC380/50Hz |
Accuracy |
≤0.1% |
Air |
0.4-0.8mpa |
Speed |
400-500can/h |
IP Grade |
IP 67 |
Optional configuration:
feed pump, reflux valve, filter, conveyor line, capping machine, stacking machine
Customized type:
dedicated type for foamed acid liquid, 2-shift or 3-shift automatic filling type

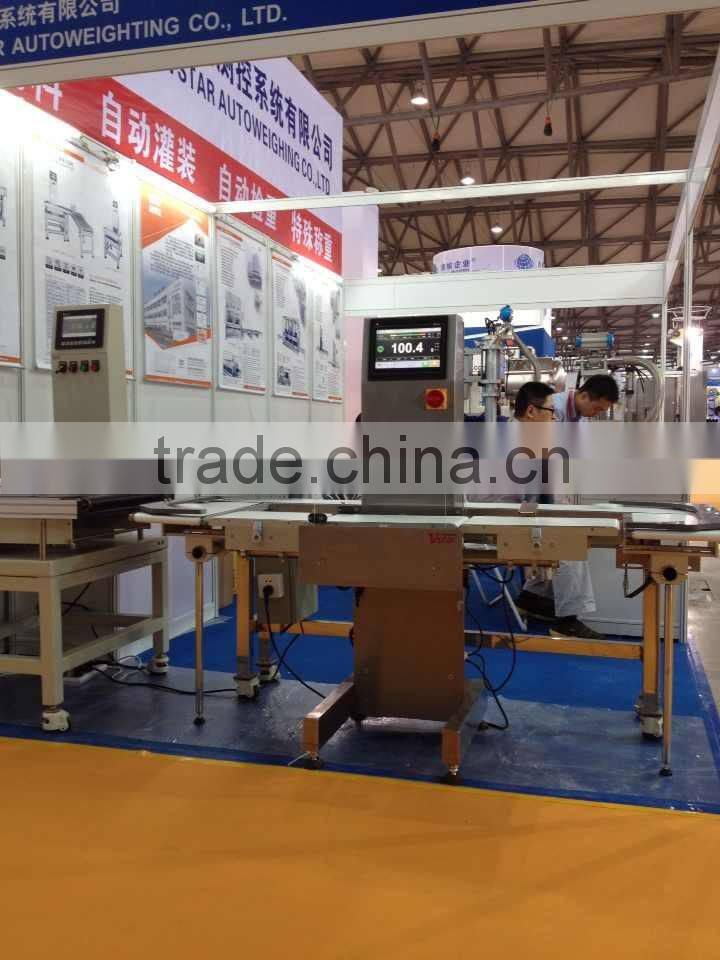

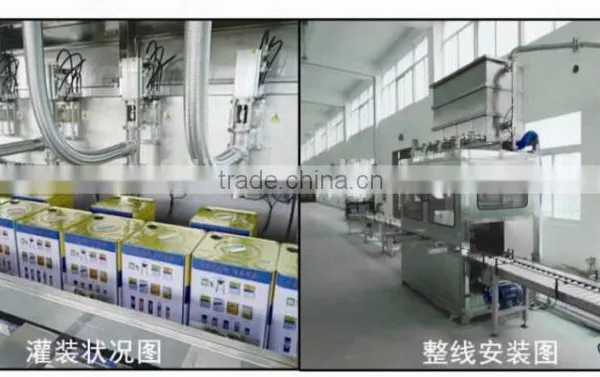

our exhibition:
