Split AC Current Probes For Ground Testers
US$ 50 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
GFUVE
Model Number:
Q8A-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Top Quality CLAMP-ON Q8 ac Current ClampUS$ 10 - 100MOQ: 1 Piece -
Split Core Test AC Clamp Current SensorUS$ 50 - 100MOQ: 1 Piece
-
FU-16 Split Core Low Cost Current TransformerNegotiableMOQ: 1 Unit
-
Mini 660V Low Voltage Current TransformerNegotiableMOQ: 1 Unit
-
10KV Toroidal High Voltage Current TransformerNegotiableMOQ: 1 Unit
Place of Origin
Beijing, China
Brand Name
GFUVE
Model Number
Q8A-1
Usage
Current
Phase
Single
Coil Structure
Toroidal
Coil Number
Autotransformer

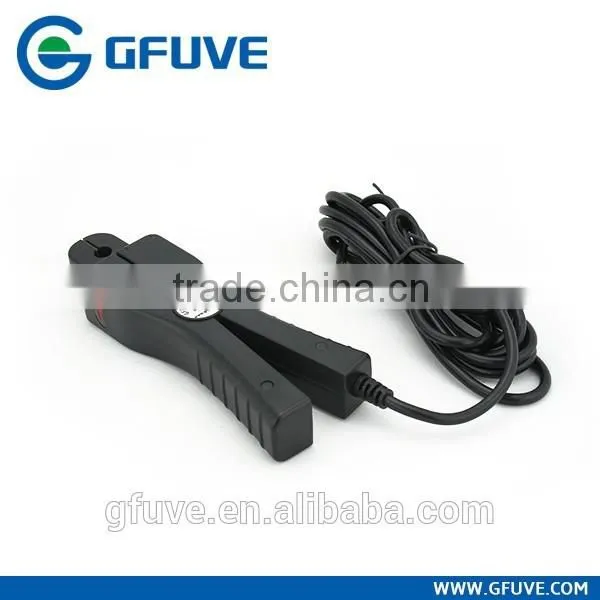

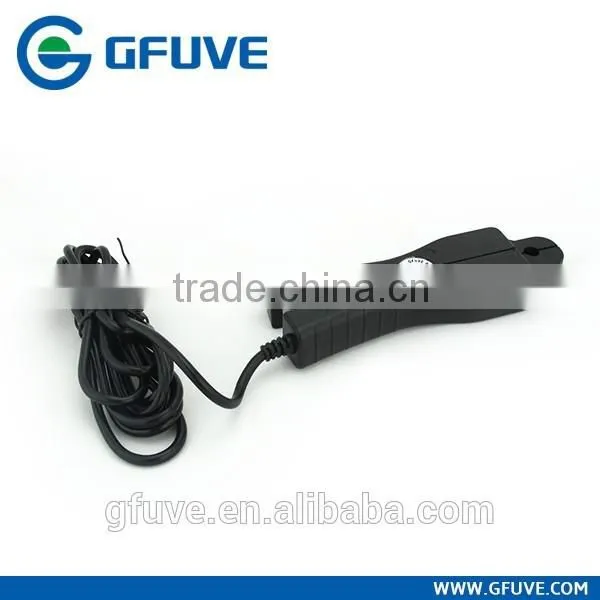

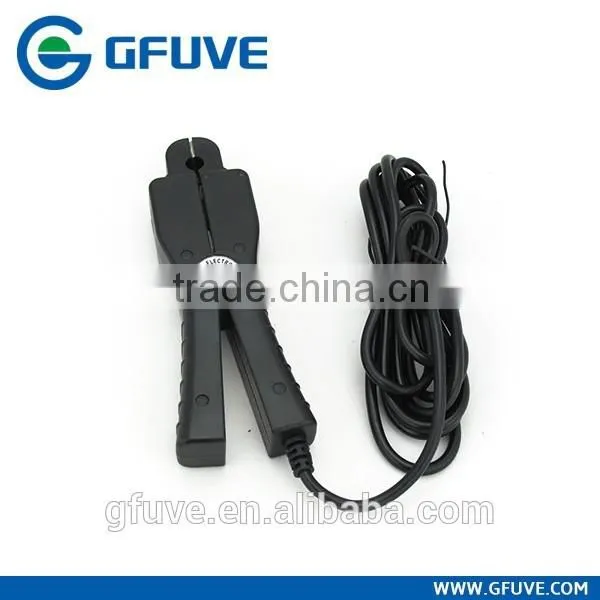

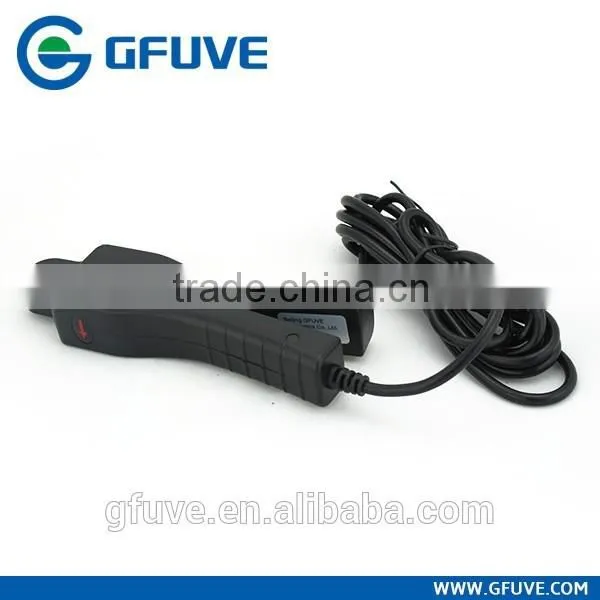

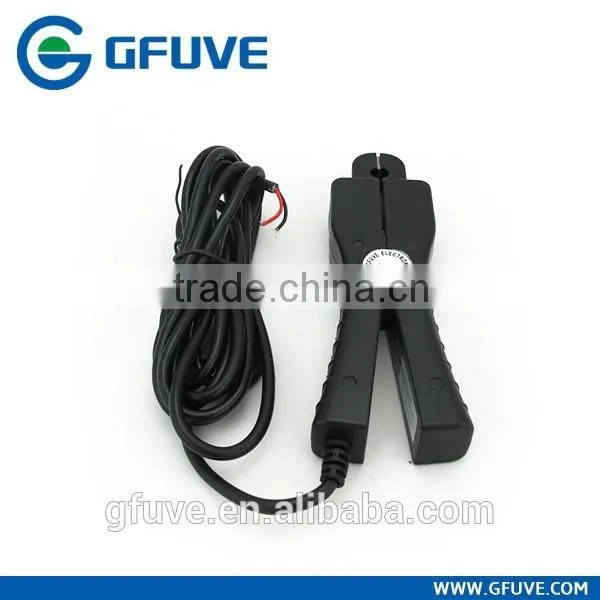

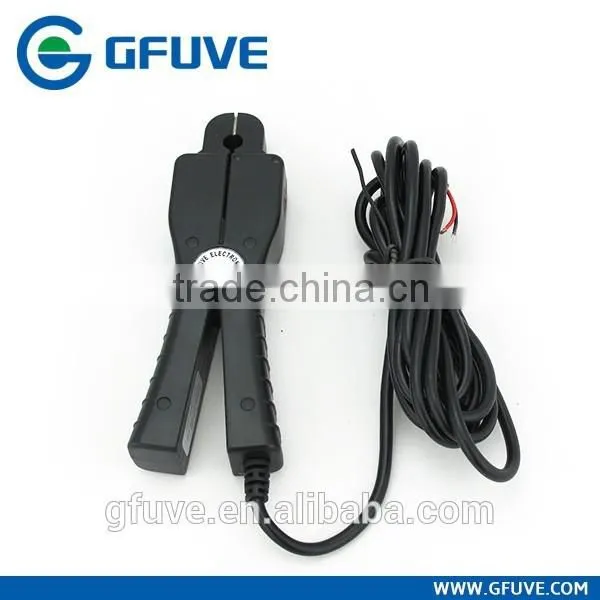

Split AC Current Probes For Ground Testers
Product Description
The model Q8A1 current probe is based on AC transformer technology for use in measurement of AC current, it is suitable for 5A, 10A cable online measurement.
FEATURES
- Suitable for 5A, 10A cable online measurement.
- Holding wire diameter: φ8mm
- Dimension: 42.6mm × 122.5mm × 23mm
- Load capacity: ≤4Ω
- Installation: clamp type
- Output mode: lead output
Parameters
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1% |
| Primary current | 0 - 10A AC |
| Secondary current | 0 - 10mA AC (customized) |
| Max. Cont. Input current | 12 A |
| Load capacity | ≤4Ω |
| Over voltage category | CAT III 600V |
| Output signal | 10mA AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 42.6x122.5x23 |
| Weight (g) | 250 |
| Holding wire diameter (mm) | φ8 |
| Max. jaw opening (mm) | 8 |
