Split Core Test AC Clamp Current Sensor
US$ 50 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
GFUVE
Model Number:
XQ13
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FU-16 Split Core Low Cost Current TransformerNegotiableMOQ: 1 Unit -
Mini 660V Low Voltage Current TransformerNegotiableMOQ: 1 Unit
-
10KV Toroidal High Voltage Current TransformerNegotiableMOQ: 1 Unit
-
Split Core Low Voltage Current TransformerNegotiableMOQ: 1 Unit
-
Ring Type Current Transformer 380 220NegotiableMOQ: 1 Unit
Place of Origin
Beijing, China
Brand Name
GFUVE
Model Number
XQ13
Usage
Current
Phase
Single
Coil Structure
Toroidal
Coil Number
Autotransformer
Split Core Test AC Clamp Current Sensor
Product Description
XQ13 HIGH PERFORMANCE HANDHELD CLAMP ON CURRENT TRANSDUCER
The model XQ13 handheld clamp on current transducer is suitable for 10A-100A cable online measurement, it belongs to high performance transducer field.
FEATURES
- Suitable for 10A-100A cable online measurement.
- Holding wire diameter: φ13mm
- Dimension: 52.5mm×136.5mm×28mm
- Load capacity: ≤4Ω
- Installation: clamp type
- Output mode: lead output
PARAMETERS
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2% |
| Primary current | 0 - 100A AC |
| Secondary current | 0 - 100mA AC (customized) |
| Max. Cont. Input current | 120A |
| Over voltage category | CAT III 600V |
| Output signal | 100mA AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 48 x 179 x 27 |
| Weight (g) | 280 |
| Holding wire diameter (mm) | φ13 |
| Max. jaw opening (mm) | 13 |

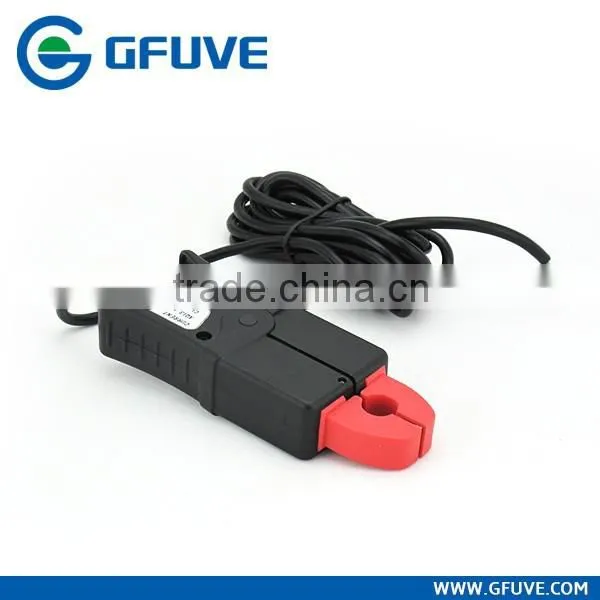

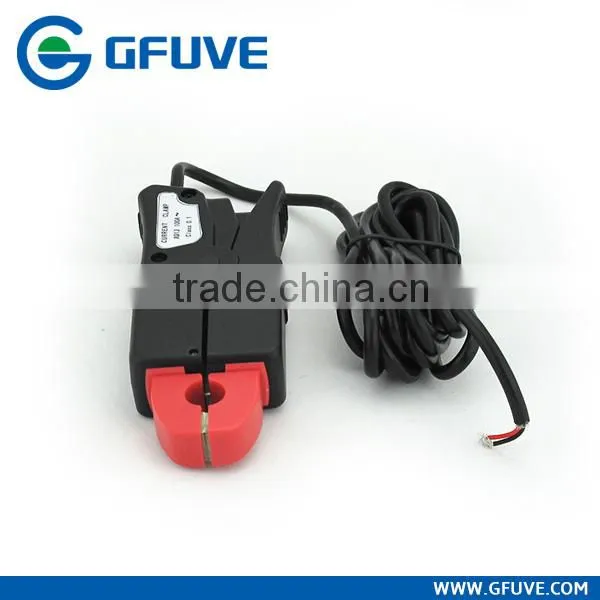

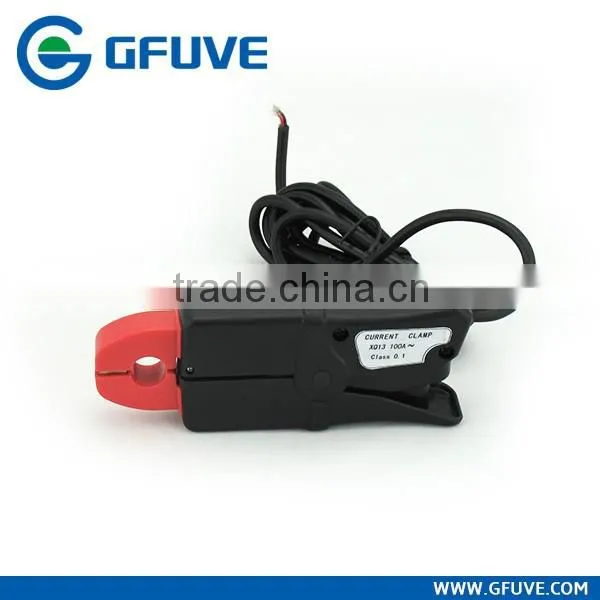

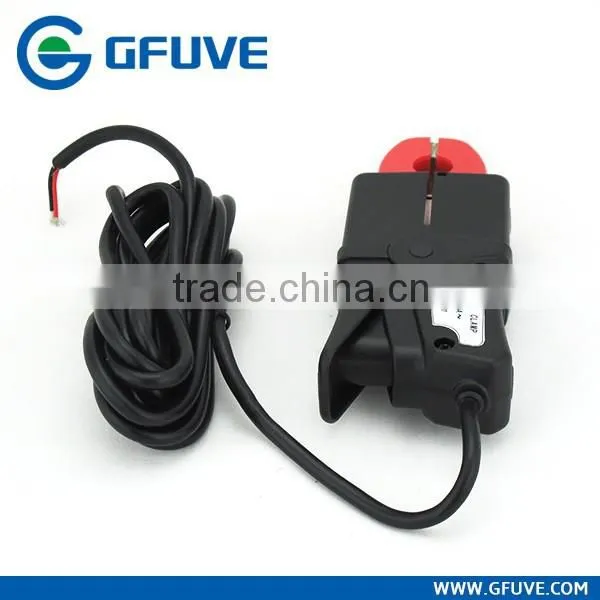

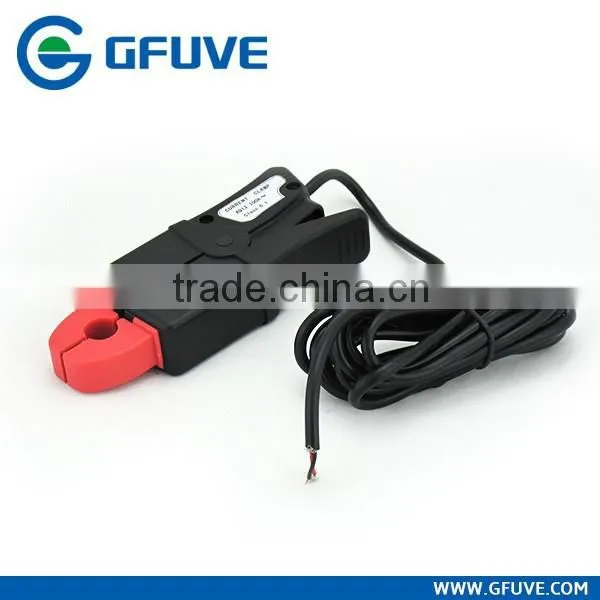

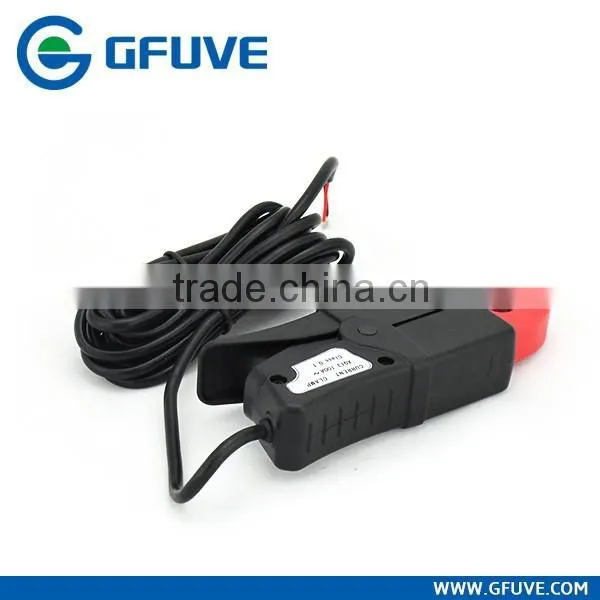

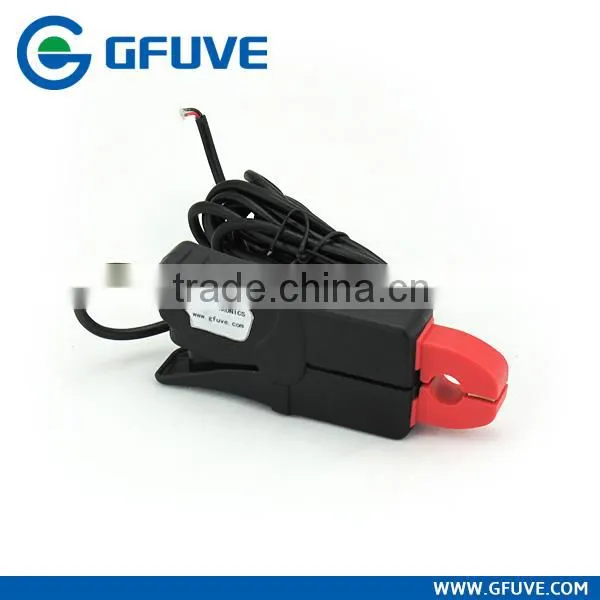

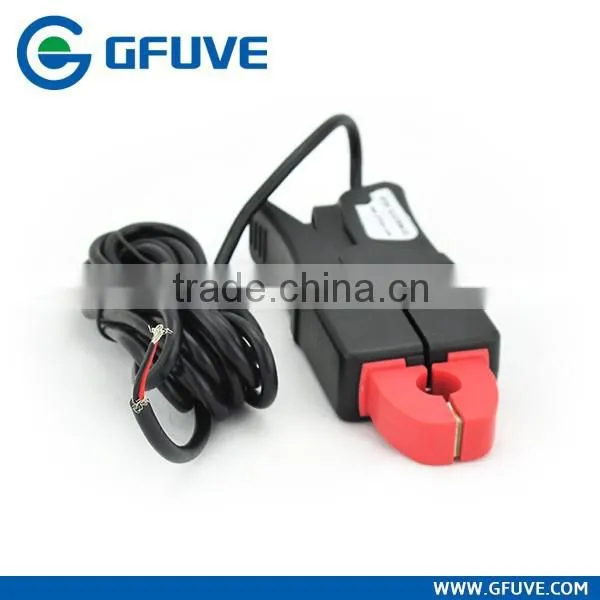

Photos
