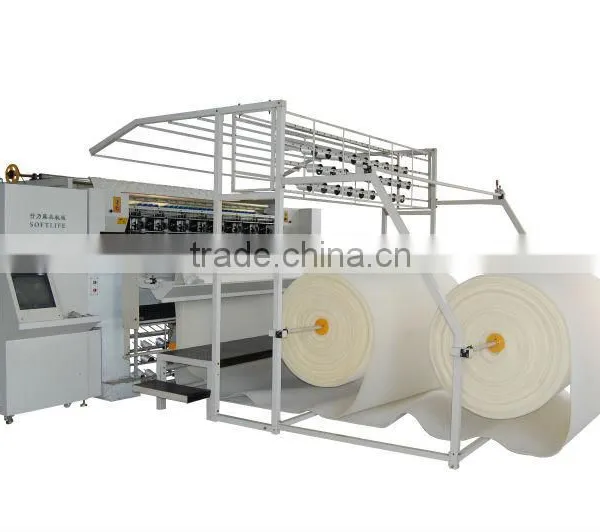

SL-Q Computerzied Quilting Machine

Name: SL-Q Computerzied Quilting Machine
Brand: SOFTLIFE
SKU: 109754877
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

SOFTLIFE

Softlife Mattress Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

WAIHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name SOFTLIFE

Model Number SL-Q

Max Sewing Speed 750-900RPM

Max Sewing Thickness 50MM

Number of Head Other

Moving Style Other

Voltage CUSTOM MAKE

Power(W) 3.5KW

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

computerized quilting machine
1.Automatic function of stop on thread breaking
2.Independent pattern design

Automatic function of stop on thread breaking and needle raising.

Faster thread cutting and fabric rolling , the production rate is 20% to 50% higher than any other quilting machine in the nation.

Using common mixed cotton thread as bottom stitch for all patterns.

Very little distortion for quilting same pattern on different thickness fabric.

Adopt pneumatic cutter, thread can be cut very rapidly and uniform.

Both X and Y axies are driven by high power Panasonic servo motors,max quilting thickness is 50mm.

Super X stroke (≤420)can quilt super large pattern.

Spacious look with the single unit design.

Earliest double independent quilting machine in nation ,(capable single and double independent all round 360ºand 180º.

Function Spec type	SL-Q Double independent patterns
Size (L * W * H )	4800×1220×2000(mm)
Weight	3500kgs
Quilting width	2450mm
Total needles	94x3=282
Running speed	750~900 rpm
Production speed	65~165 m/h
Needle type	180/24
Needle arrangement	(50.8,76.2,127)(76.2,76.2,152.4)
X movement	420mm
Needle space	25.4mm
Voltage	220V,380V
Length of stitch	3~6mm
Power	3.5KW
Quilting thickness	≤50mm(subject to type foam or fiber used)
