Computerized Multi-Needle Quilting Equipment for Mattress

Name: Computerized Multi-Needle Quilting Equipment for Mattress
Brand: Softlife
SKU: 109754903
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Industrial Sewing Machine

Place of Origin:

Guangdong, China

Softlife Mattress Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Jiangmen Waihai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Industrial Sewing Machine

Place of Origin Guangdong, China

Brand Name Softlife

Model Number SL-Q

After-sales Service Provided Engineers available to service machinery overseas

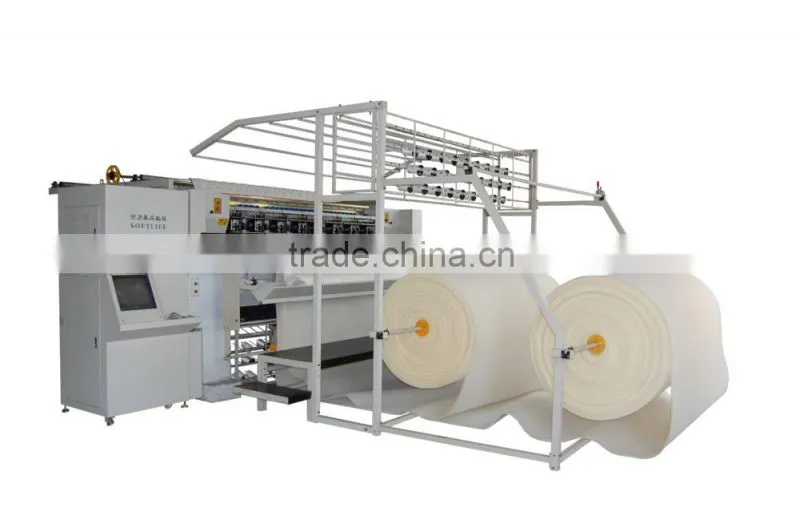

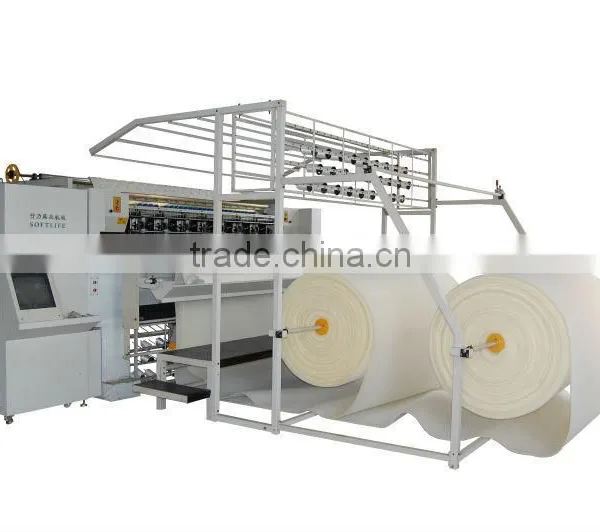

SL-Q Computerized Quilting Machine (multi-needle)

It is widely used for quilting high-quality mattress, quilt covers and household ornaments. Diffierent patterns are available.

Automatic function of stop on thread breaking and needle raising.
Faster thread cutting and fabric rolling, the production rate is 20% to 50% higher than any other quilting machine in the nation.
Using common mixed cotton thread as bottom stitch for all patterns.
Very little distortion for quilting same pattern on different thickness fabric.
Adopt pneumatic cutter, thread can be cut very rapidly and uniform.
Both X and Y axies are driven by high power Panasonic servo motors,max quilting thickness is 50mm.
Super X stroke (≤420)can quilt super large pattern.
Spacious look with the single unit design.
Earliest double independent quilting machine in nation ,(capable single and Double independent all round 360º and 180º.

Technical Specification:

Function Spec type	SL-Q Double independent patterns
Size (L * W * H )	4800×1220×2000(mm)
Weight	3500kg
Quilting width	2450mm
Total needles	94x3=282
Running speed	750~900 rpm
Production speed	65~165 m/h
Needle type	180/24
Needle arrangement	(50.8 , 76.2 , 127) (76.2 , 76.2 , 152.4)
X movement	420mm
Needle space	25.4mm
Voltage	220V,380V
Length of stitch	3~6mm
Power	3.5KW
Quilting thickness	≤50mm(subject to type of foam or fiber used)
