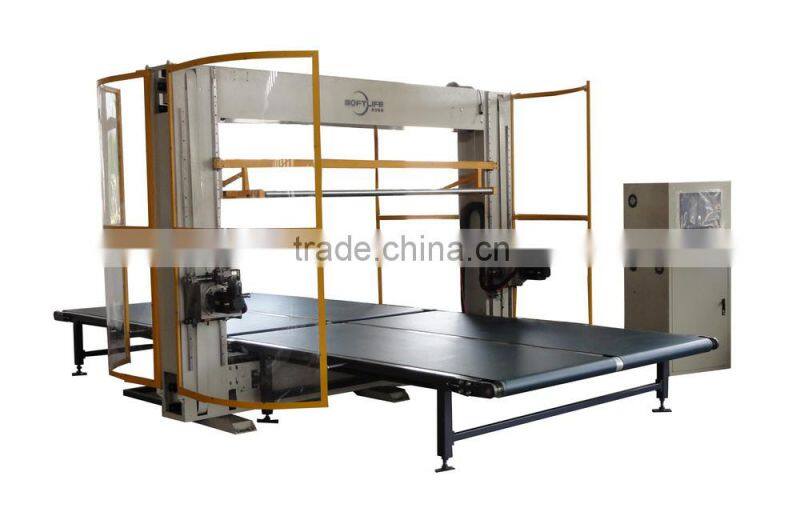

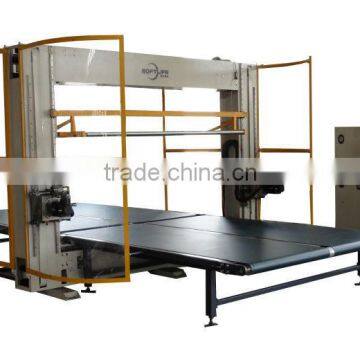

SL-CC-2Z Foam Contour Cutting Machine(Double Blade)
The machines use the Windows platform, control mode, the control becomes simple and intuitive, with a factory –designed graphics- processing software , easy to use , direct access to the machine comes with software, graphics precessing , also Auto CAD files can be directly processed. Operators only need to go through a simple computer literacy training can operate the machines . Equipped with wireless remote control, make the operation more humane convenient. The use of high precision AC servo system to control the moving of the blade and worktable to make cutting more precise graph.
SL-CC-2Z use of vibration to be cut with a blade , knife-belt can rotate at any angle , you can replace the roll-cut, flat cut , vertical cutting machine and so oncutting curves smooth and efficient.
Technical Specification:
Cutting type |
Knife |
Working table |
Conveyor table |
Max. cutting size |
2500mm×2100mm×1200mm |
Horizontal cutting speed |
6 m/min |
Vertical cutting speed |
6 m/min |
Admissible error(mm) |
±0.5mm |
Compress system |
Roller / Vaccum |
Machine size |
5400mm×3150mm×2485mm |
Power |
13.3KW |
Weight |
2300KG |
