Specifications
1. The control becomes simple and intuitive,2. The operation becomes more humane convenient.

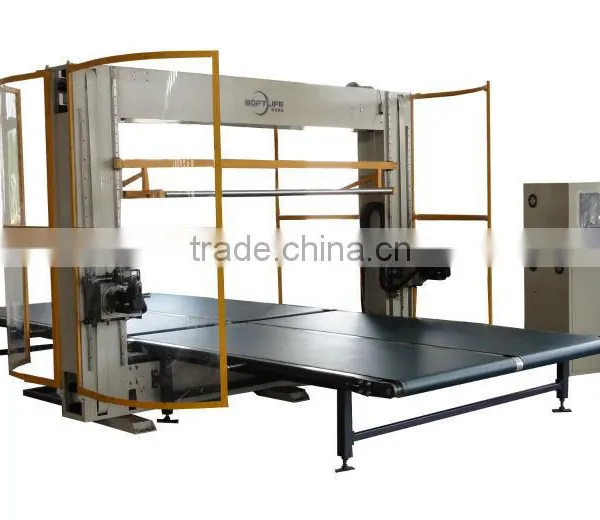

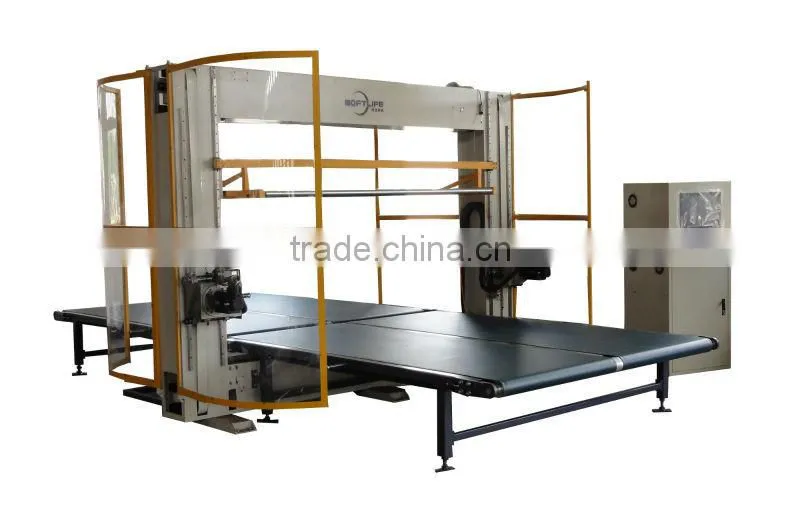

SL-CC-2Z Foam Contour Cutting Machine(Double Blade)
The machines use the Windows platform , control mode , the control becomes simple and intuitive , with a factory –designed graphics- processing software , easy to use , direct access to the machine comes with software, graphics precessing , also Auto CAD files can be directly processed. Operators only need to go through a simple computer literacy training can operate the machines . Equipped with wireless remote control, make the operation more humane convenient . The use of high precision AC servo system to control the moving of the blade and worktable to make cutting more precise graph .
SL-CC-2Z use of vibration to be cut with a blade , knife-belt can rotate at any angle , you can replace the roll-cut, flat cut , vertical cutting machine and so oncutting curves smooth and efficient .
Technical Specification:
Cutting type |
Knife |
Working table |
Conveyor table |
Max. cutting size |
2500mm×2100mm×1200mm |
Horizontal cutting speed |
6 m/min |
Vertical cutting speed |
6 m/min |
Admissible error(mm) |
±0.5mm |
Compress system |
Roller / Vaccum |
Machine size |
5400mm×3150mm×2485mm |
Power |
13.3KW |
Weight |
2300KG |
