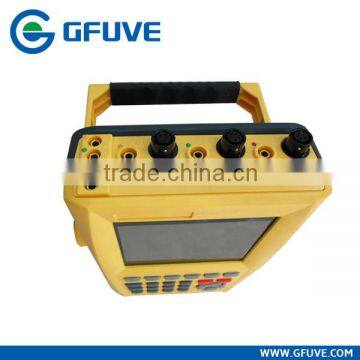

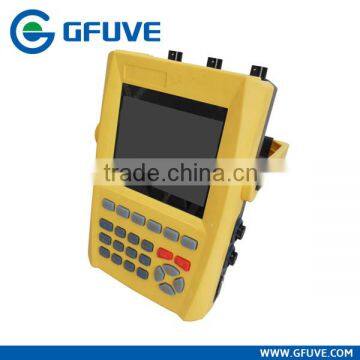

GF312D1 High Accuracy Class Handheld Three Phase Energy Meter Field Calibrator
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
GFUVE
Model Number:
GF312D1
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MTE Kwh Meter Calibration Equipment GFUVE GF312D1 Portable Three Phase Energy Meter Test EquipmentNegotiableMOQ: 1 Piece -
Three Phase Kwh Meter Testing Kit GF312D1 Energy Meter Calibration Test KitNegotiableMOQ: 1 Set
-
GF312D Hand-held Three Phase Energy Meter Field CalibratorNegotiableMOQ: 1 Set
-
GF312D Wireless Power MeasurementNegotiableMOQ: 1 Set
-
Electricity Meter Testing and Calibration Equipment GF312D1 Energy Meter Calibrator Three Phase Kwh Meter CalibratorNegotiableMOQ: 1 Set
Place of Origin
Beijing, China
Brand Name
GFUVE
Model Number
GF312D1
Power
Electronic
Usage
Universal Testing Machine
Electrical testing and meausrement equipment
CE,ISO9001:2008,IEC approved,with english version display
Accuracy class 0.05%/0.1%/0.2%
Product Description of Energy meter testing and measurement equipment GF312D1 High accuracy class Handheld Three Phase Energy Meter Field Calibrator,with CE,ISO9001:2008,IEC approved,with english version display and two years quality warranty.
The instrument is a precision AC energy meter testing instrument, mainly used to test three phase energy meter error on site and measure various of AC parameters.
Features and Functions
- Three phase active or reactive electricity energy meter;
- Calibrate three phase, single phase, active or reactive meter error;
- Measure U(voltage) of three phase or single phase;
- Measure I(current) of three phase or single phase;
- Measure active power of three phase or single phase;
- Measure reactive power of three phase or single phase;
- Measure apparent power of three phase or single phase;
- Measure power factor of three phase or single phase;
- Measure phase angle between voltage and current;
- Measure frequency of power line;
- Display vector diagram;
- Display waveform of U and I;
- Analyze and display content of harmonic of U and I;
- Store and look measured data;
- Optional 5 A, 20 A, 100 A, 500 A, 1000 A, 2000 A current clamp;
- Measure CT variable ratio;
- Measure the ratio or lag-angle of low-voltage transformer;
- Print the data of measurement on site;
- Adopt 32 bit ARM processor, multi-channel 16 bit precision A/D convertor, high resolution TFT LCD;
- Inner equipped with 0.01% wide-range current transformer and can be equipped with various type current clamps, wide range of measurement and high veracity.
- Low consumption circuit design, high energy Li batter supply, intellectual power management software, which make the instrument can continuously work up to 10 hours.
Specification
| Test Voltage | |
| Range | 5V – 480V |
| Error |
±0.05% (30V – 480V) ±0.1% (5V – 30V) |
| Harmonic | 2nd -- 63st |
| Test Current | |
| Range (direct connection) | 5mA – 20A |
| Error (direct connection) |
±0.05% (100mA – 20A) ±0.1% (10mA – 100mA) |
| Harmonic | 2nd -- 63st |
| Power measure error | |
| Active power(direct connection) |
±0.05% (0.1A – 20A) ±0.1% (0.01A – 0.1A) |
| Reactive power (direct connection) | ±0.1% (0.1A – 20A) |
| Energy measure error | |
| Active energy (direct connection) |
±0.05% (0.1A – 20A) ±0.1% (0.01A – 0.1A) |
| Reative energy (direct connection) | ±0.1% (0.1A – 20A) |
| Phase angle | |
| Range | 0º – 360º |
| Error | ±0.05º |
| Frequency | |
| Range | 45Hz – 65Hz |
| Pulse output | |
| High frequency output(CH) |
1×1011 (1mA – 10mA) 1×1010 (10mA – 0.1A) 1×109 (0.1A – 1.0A) 1×108 (1.0A – 10A) 1×107 (10A – 120A) |
| Low frequency output(CL) | 2×10-5×CH |
| Pulse ratio | 1:1 |
| Output level | 5V |
| Pulse input | |
| Input channel | 1 |
| Input level | 5 – 24V |
| Input frequency | Max. 2MHz |
| Display | |
| Input channel | 6”TFT (640×480) |
| Function | |
| Vector diagram | Yes |
| Waveform | Yes |
| Energy accummulation | Yes |
| Communication port | RS232 |
| Commuication with PC | Yes |
| Other | |
| Voltage Supply way | External power |
| Voltage Supply 1 | 220V ± 10%, 50/60Hz ± 2Hz |
| Voltage Supply 2 |
Li-polymer battery, size: 110X51X16mm Nominal output voltage: 7.2V,Capacity: 5000mAh. |
| Ambient temperature | -10°C -- 55°C |
| Relative humidity | 15% -- 85% |
| Instrument Dimension (W ×H×D) (mm) ) | 245×162×60 |
| Carry Case Dimensions (W×H×D) (mm) | 450×320×185 |
| Weight (kg) | 1.7kg |
