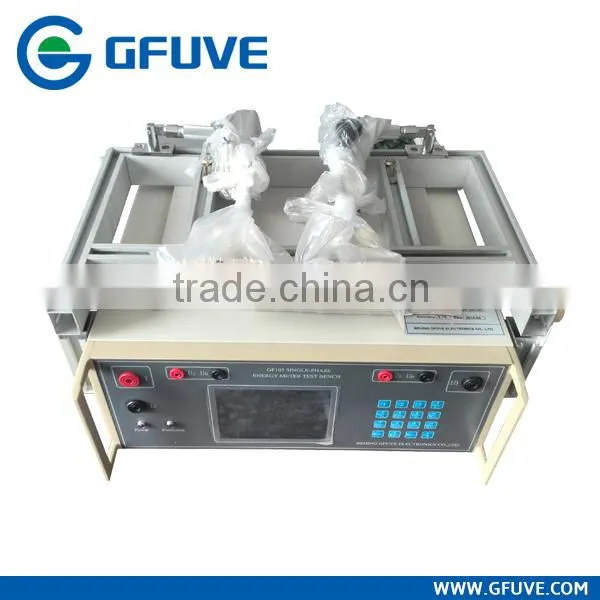

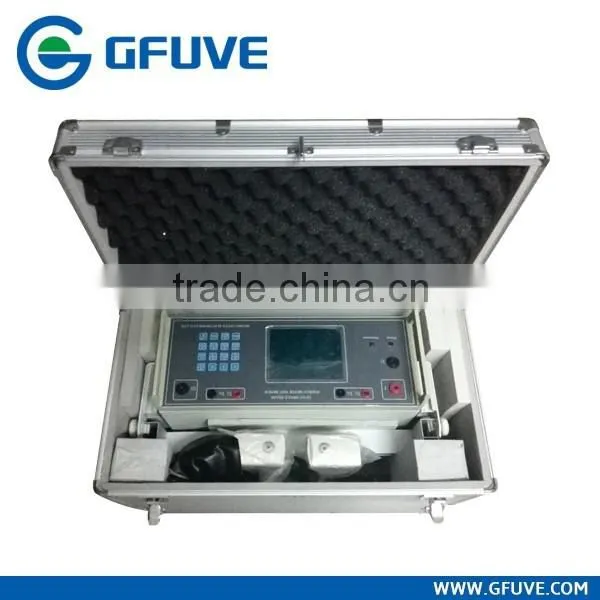

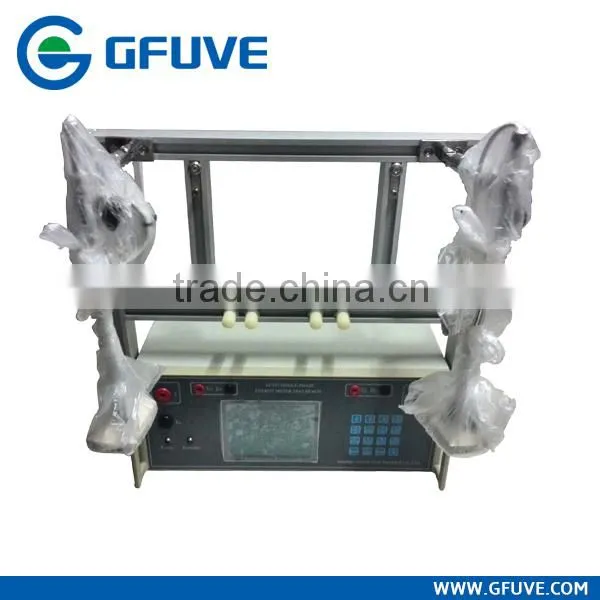

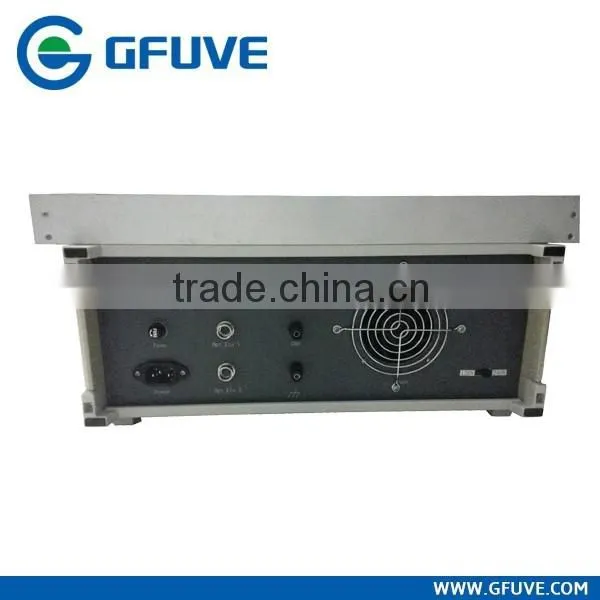

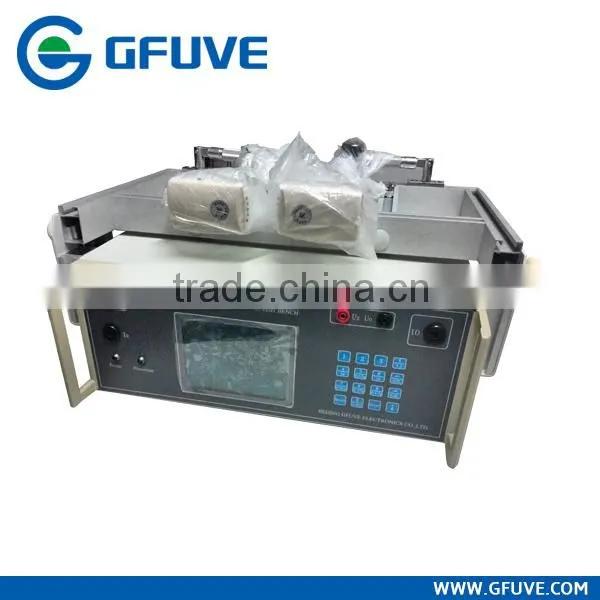

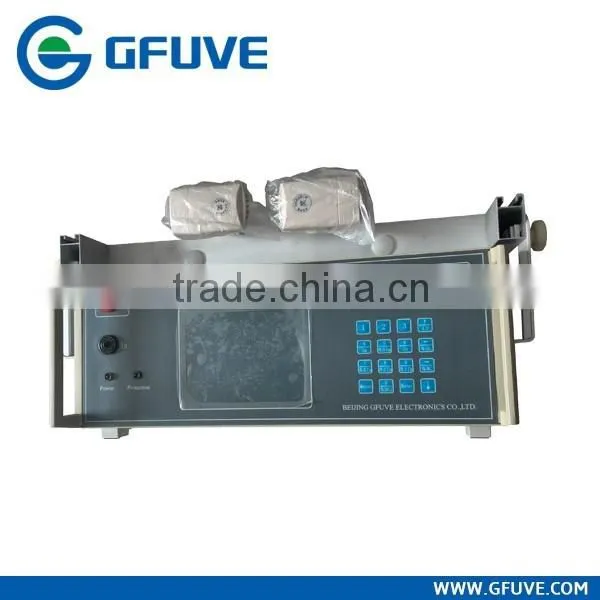

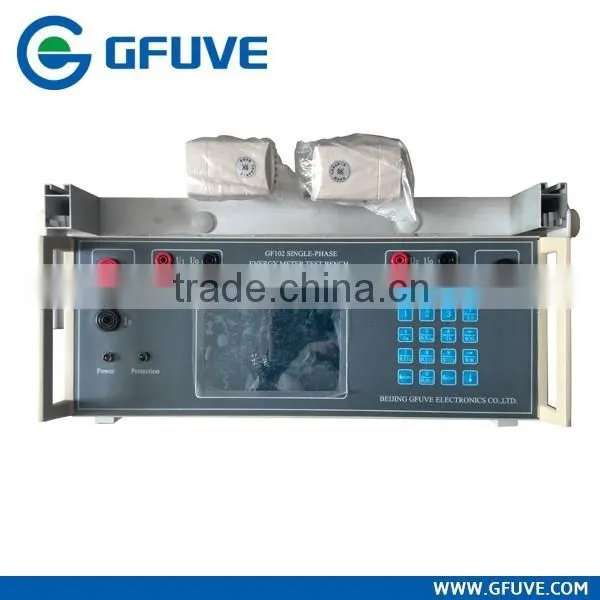

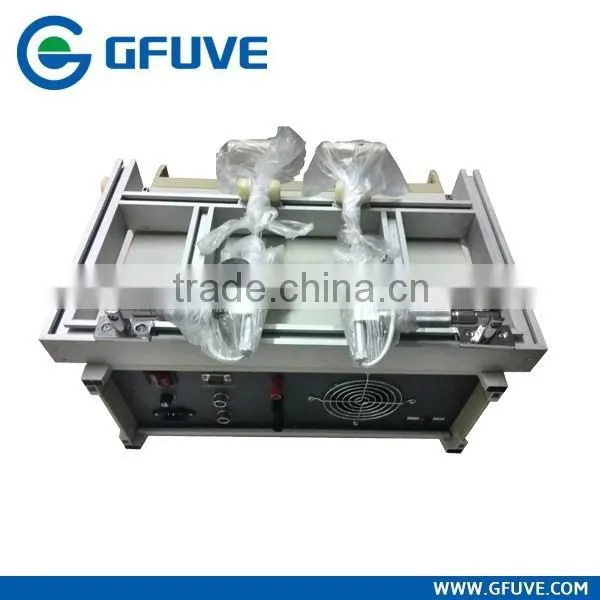

Features of Electrical testing and measurement equipment GF102 Single Phase Energy Testing Equipment with phantom load,CE,ISO9001:2008,IEC approved,with two years quality warranty.
- Meter under testing: 1P2W
- Testing mode: active power, reactive power
- Test 3pcs or 2pcs meter synchronously
- Starting test and creeping test
- Reference standard and power source integrated, easy to carry.
- Measuring mechanical meter and electric meter
- Operating by manual keyboard or PC
- With shortcut key of normal test point, speed up testing
- Internal large capacity storage device for mass memory
- Local checking the testing result
- Overload, short circuit, open circuit protection
- With self-checking function
Technical Data
Voltage | |
Test voltage output (Phase-Neutral) |
0V – 264V |
Power of the voltage output |
Max. 30VA , 15VA |
Resolution |
0.01% |
Accuracy |
0.1% , 0.2% |
Stability |
0.02%/120s , 0.05%/120s |
Distortion factor |
< 0.3% for linear resistance load |
Current | |
Test current output |
1mA – 120A , 1mA – 60A |
Power of the current output |
Max. 100VA , 30VA |
Resolution |
0.01% |
Accuracy |
0.1% , 0.2% |
Stability |
0.02%/120s |
Distortion factor |
< 0.3% for linear resistance load |
Phase angle | |
Range |
0 -- 360° |
Resolution |
0.1° |
Accuracy |
0.2° |
Frequency | |
Range |
45Hz – 65Hz |
Resolution |
0.005Hz |
Pulse output | |
High frequency output(CH) |
1.666×105 Hz |
Low frequency output(CL) |
5×10-5×CH |
Pulse input | |
Input channel |
3 |
Input frequency |
Max. 20Hz |
Other | |
Voltage Supply |
220V±10% 50/60Hz±2Hz |
Ambient temperature |
-10°C -- +40°C |
Relative humidity |
35% -- 85% |
Dimensions (W×D×H) (mm) |
445×440×180 , 410×220×150 |
Weight (kg) |
18 , 9.5 |
