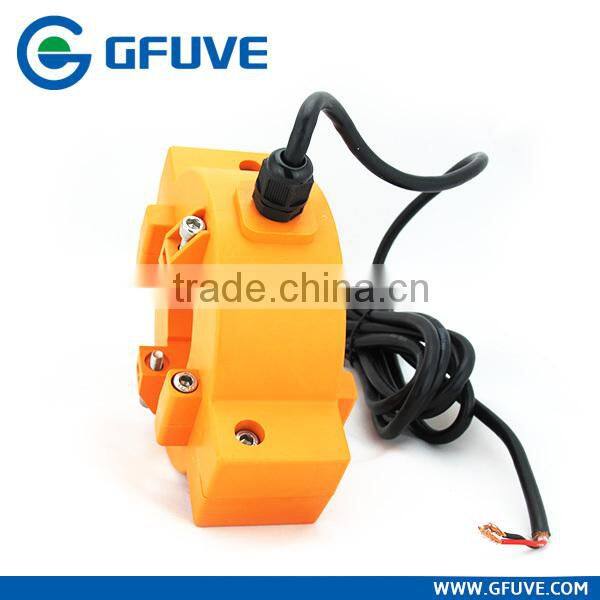

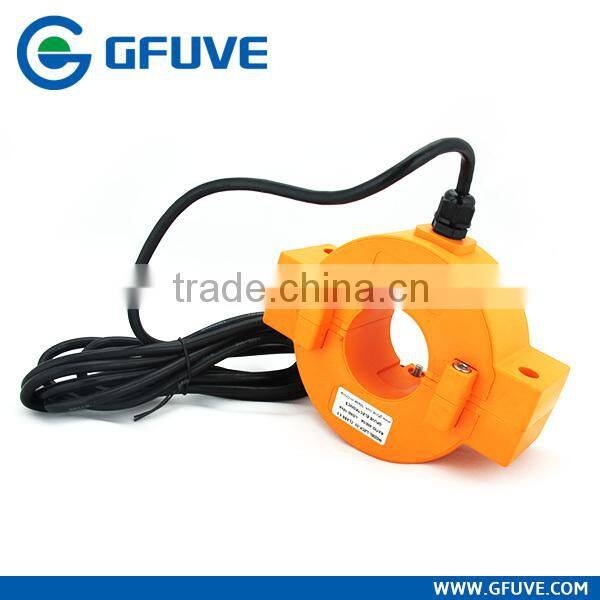

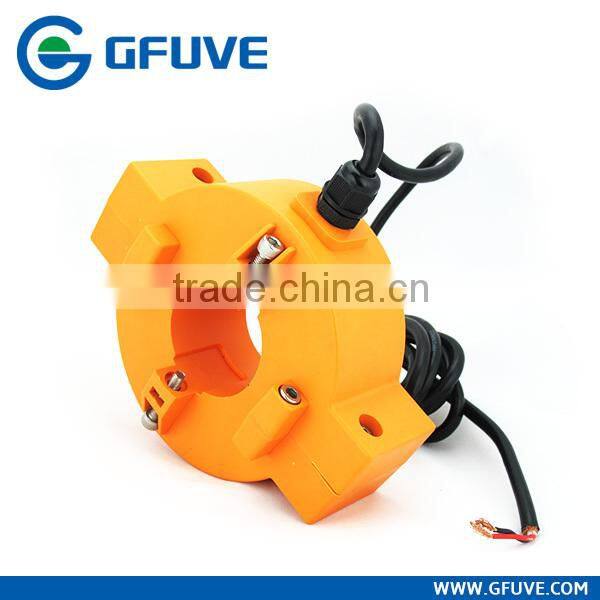

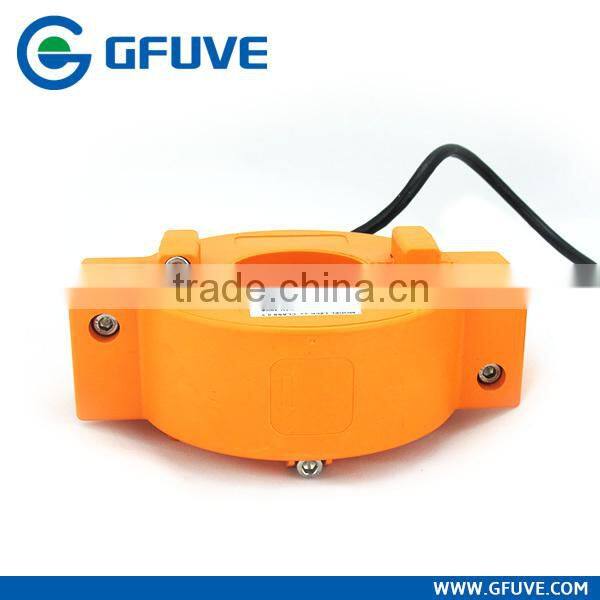

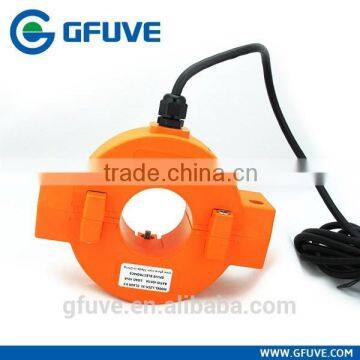

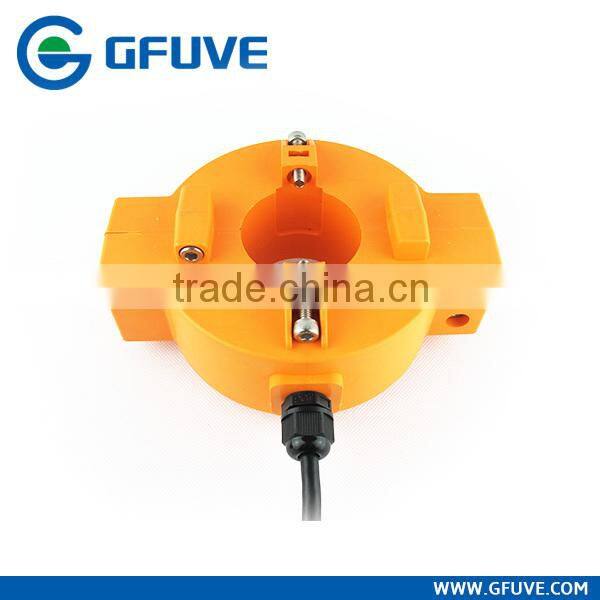

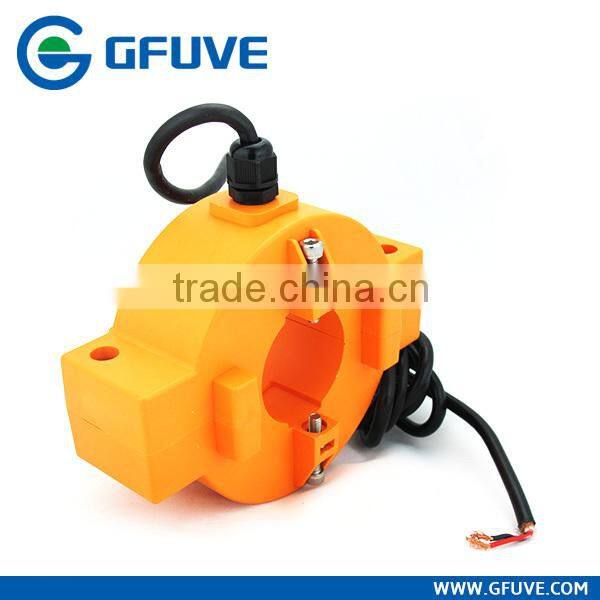

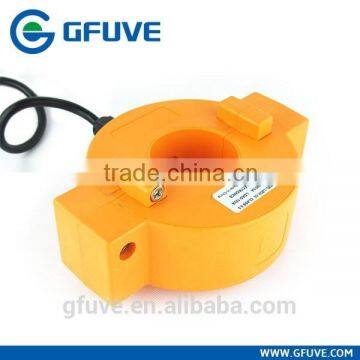

LZCK55 Split Core Current Transformer

LZCK55 Split Core Current Transformer thumbnail-1
LZCK55 Split Core Current Transformer thumbnail-2
LZCK55 Split Core Current Transformer thumbnail-3
LZCK55 Split Core Current Transformer thumbnail-4
LZCK55 Split Core Current Transformer thumbnail-5
LZCK55 Split Core Current Transformer thumbnail-6
LZCK55 Split Core Current Transformer photo-1
LZCK55 Split Core Current Transformer photo-2
LZCK55 Split Core Current Transformer photo-3
LZCK55 Split Core Current Transformer photo-4

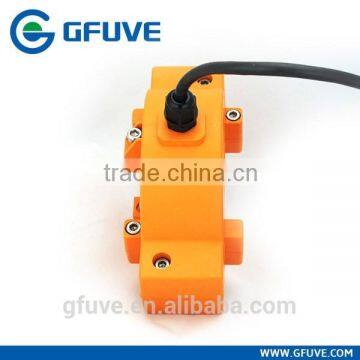

LZCK55 Split Core Current Transformer photo-5
LZCK55 Split Core Current Transformer photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GFUVE
Model Number:
LMCK055-10
Contact Supplier Request Quote Chat Now
Beijing GFUVE Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
BeijingShanghaiShenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name GFUVE
Model Number LMCK055-10
Usage Current
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer

Specifications

LZCK55 Split Core Current Transformer
Standard of Application:GB1208-2006;IEC 60044-1;NTC 2205

                                                  LMCK055-10 Outdoor  Split Core Current Transformer









Product Description







LZCK series instrument current transformers applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV,and microcomputer protection. This type of current transformer employs imported silican steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.

Working conditions:

Ambient temperature:-35°C~+55°C.

Environment: outdoors or indoors

The Height of above sea level:0~ 3000m .

Atmosphere conditions: No highly polluted, errosion, erosiveness, radioactivity gases.

(continuous working under the rated current is allowed)

(P2 represents for primary polar end,S1,S2 represent for secondary polar end

P2 and S2 are subtractive polarity.

Technical parameters::

Rated frequency::50Hz or 60Hz

Rated secondary current:5A or 1A

Secondary winding power frequency withstand voltage:3kV,1min

Safety Factor Rating (FS) < 5

Standard of Application:GB1208-2006;IEC 60044-1;NTC 2205

Accuracy Class:   0.5 or 1;

Flame retardant ABS plastic shell or PC inside the filling, jaw waterproof apron.

Item Name

Range of primary rated current

Range of Rated load

Aperture

(mm)

Description (mm)

(Weight)

(kg)

 LMCK055-10

300-1200A

≤5VA

Φ55

180×138×52

2















 LZCK55 Split Core Current TransformerLZCK55 Split Core Current TransformerLZCK55 Split Core Current TransformerLZCK55 Split Core Current TransformerLZCK55 Split Core Current TransformerLZCK55 Split Core Current Transformer
