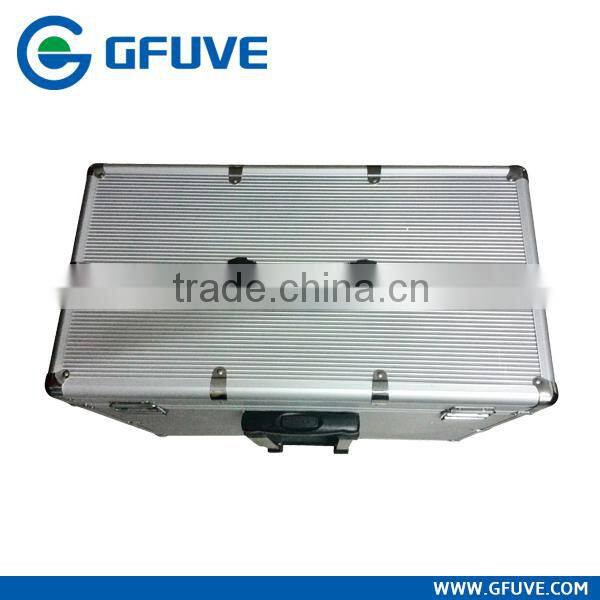

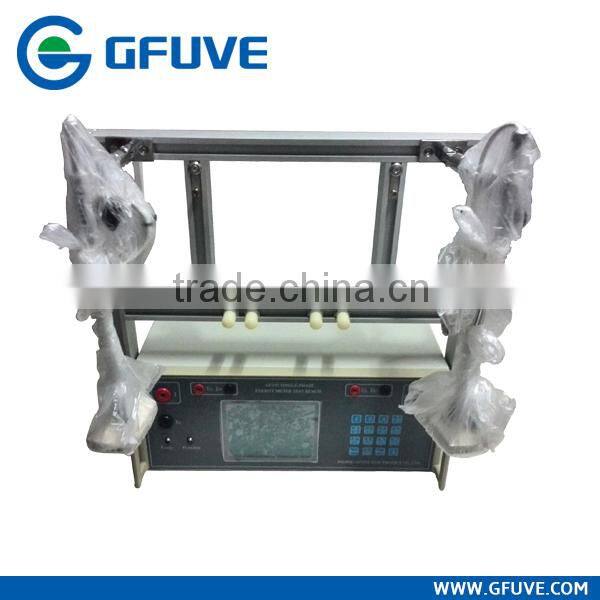

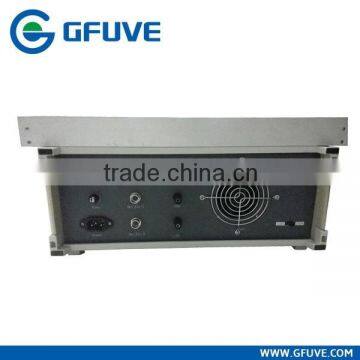

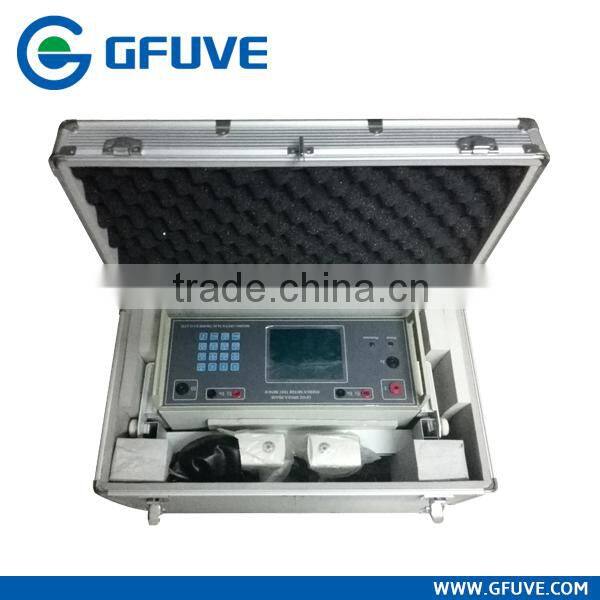

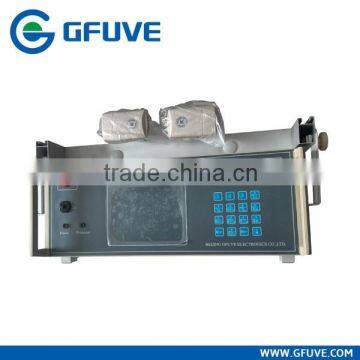

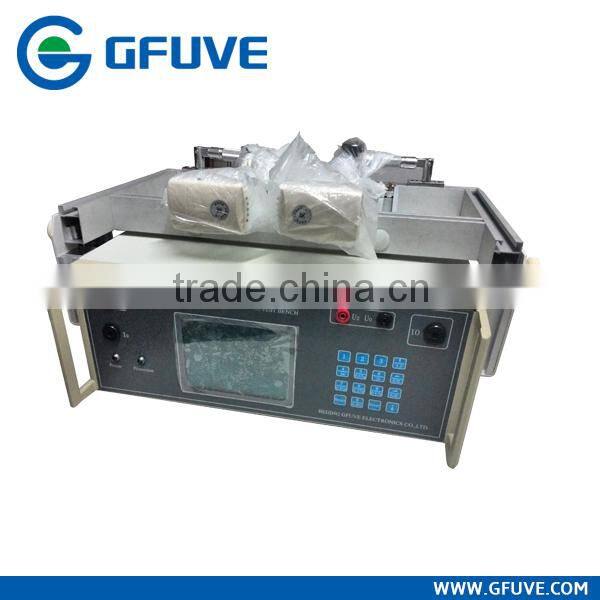

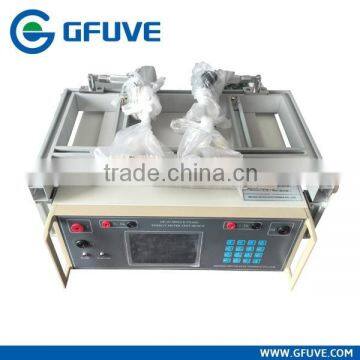

Help CenterGF102 Portable Single Phase Kwh Meter Calibrator With Power Source
Related Products
-
Multifunction Portable Meter Testing InstrumentUS$ 2,500 - 5,000MOQ: 1 Set -
GFUVE GF312V2 Portable Multifunction Energy Meter Test EquipmentNegotiableMOQ: 1 Set
-
Six Phase Primary Injection Relay Test SetNegotiableMOQ: 1 Set
-
Primary and Secondary Current Inject Device TesterNegotiableMOQ: 1 Set
-
LZCK 310-10 Resin 10Kv Splitcore Current TransformerUS$ 1 - 100MOQ: 1 Piece
Specifications
1.test single phase energy meter2. Adopt mature signal synthetic
3. High voltage and current output
4. used in lab, field
Features of Electrical testing instruments GF102 Portable Single Phase kwh meter Calibrator with power source,CE,ISO9001:2008,IEC approved,english version display.
- Meter under testing: 1P2W
- Testing mode: active power, reactive power
- Test 3pcs or 2pcs meter synchronously
- Starting test and creeping test
- Reference standard and power source integrated, easy to carry.
- Measuring mechanical meter and electric meter
- Operating by manual keyboard or PC
- With shortcut key of normal test point, speed up testing
- Internal large capacity storage device for mass memory
- Local checking the testing result
- Overload, short circuit, open circuit protection
- With self-checking function
Technical Data
Voltage | |
Test voltage output (Phase-Neutral) |
0V – 264V |
Power of the voltage output |
Max. 30VA , 15VA |
Resolution |
0.01% |
Accuracy |
0.1% , 0.2% |
Stability |
0.02%/120s , 0.05%/120s |
Distortion factor |
< 0.3% for linear resistance load |
Current | |
Test current output |
1mA – 120A , 1mA – 60A |
Power of the current output |
Max. 100VA , 30VA |
Resolution |
0.01% |
Accuracy |
0.1% , 0.2% |
Stability |
0.02%/120s |
Distortion factor |
< 0.3% for linear resistance load |
Phase angle | |
Range |
0 -- 360° |
Resolution |
0.1° |
Accuracy |
0.2° |
Frequency | |
Range |
45Hz – 65Hz |
Resolution |
0.005Hz |
Pulse output | |
High frequency output(CH) |
1.666×105 Hz |
Low frequency output(CL) |
5×10-5×CH |
Pulse input | |
Input channel |
3 |
Input frequency |
Max. 20Hz |
Other | |
Voltage Supply |
220V±10% 50/60Hz±2Hz |
Ambient temperature |
-10°C -- +40°C |
Relative humidity |
35% -- 85% |
Dimensions (W×D×H) (mm) |
445×440×180 , 410×220×150 |
Weight (kg) |
18 , 9.5 |
