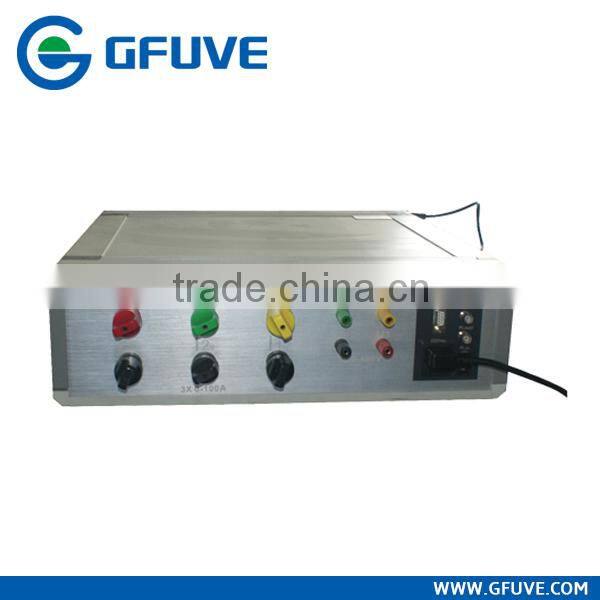

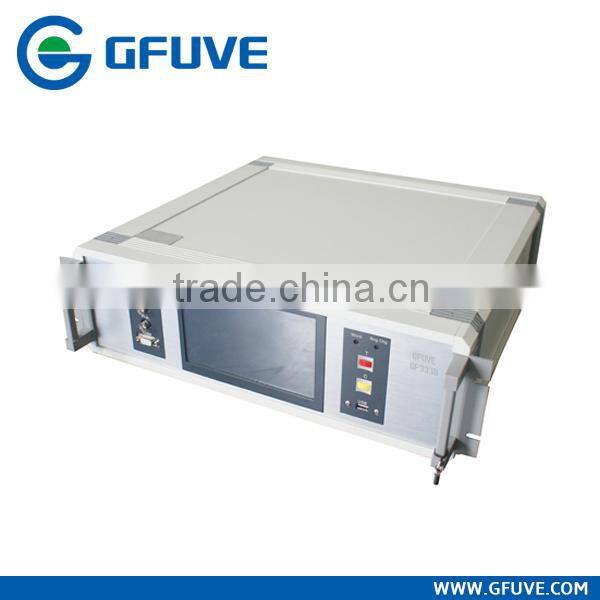

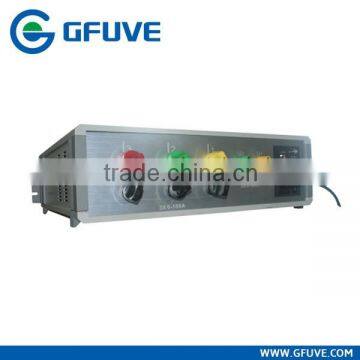

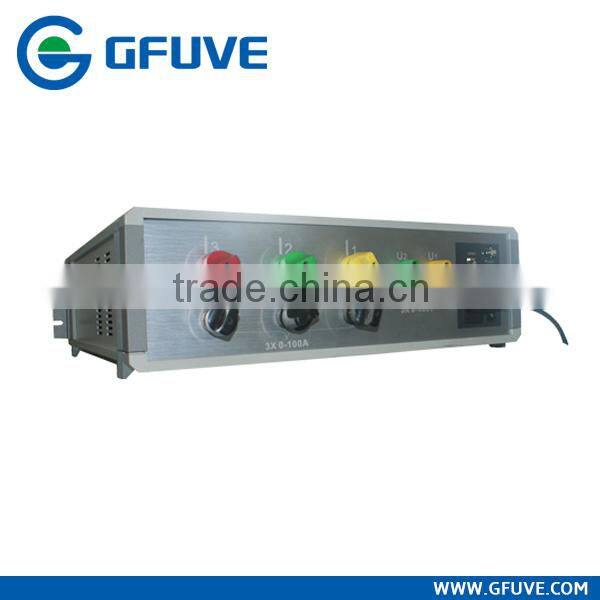

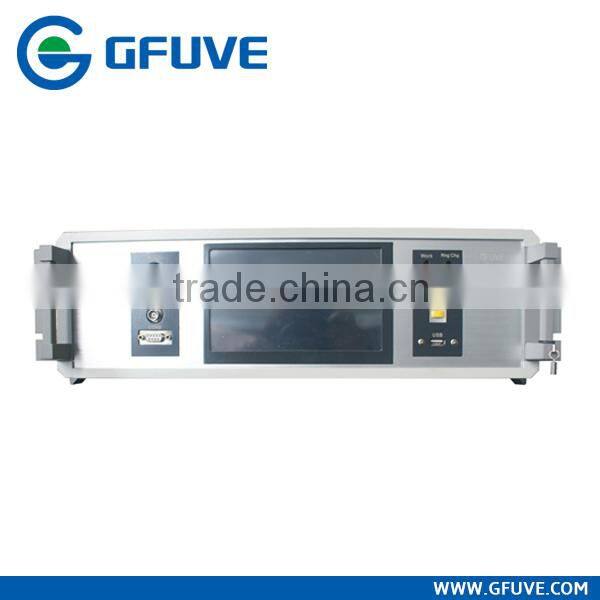

Multifunction Electrical Smart Measuring Device

Name: Multifunction Electrical Smart Measuring Device
Brand: GFUVE
SKU: 109751427
Availability: InStock

US$ 2,500 - 5,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

GFUVE

Model Number:

GF333B

Beijing GFUVE Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name GFUVE

Model Number GF333B

Power Electronic

Usage Universal Testing Machine

Specifications

test three phase meters and single phase meters
designed to work in the field or in the laboratory
accuracy up to 0.02%

Multifunction electrical smart measuring device

(Accuracy class 0.05%)

Product Description

It is a portable reference standard equipment to test single phase meters, or three phase meters, designed to work in the field or in the laboratory.

Features

Wide testing range: voltage: 5V-480V, current: 1mA-120A

Testing type:3 phase 4 wire, 3 phase 3 wire

Testing mode: active power, reactive power, cross connection reactive power

Harmonic analysis function

Waveform display function

Vector diagram function

Energy accumulating function

Internal pulse input port, testing meter’s error directly

High accuracy up to 0.02% / 0.05%

Specification

Range	5V – 480V
Error	±0.02% (50V – 480V) ±0.05% (5V – 50V)
Display range	5.000000V – 480.0000V
Harmonic	2^nd -- 64^st
Range	1mA – 120A
Error	±0.02% (0.2A – 120A) ±0.05% (1mA – 0.2A)
Display range	1.000000mA-120.0000A
Active power	±0.02% (0.2A – 120A) ±0.05% (0.01A – 0.2A) ±0.1% (0.001A –0.01A)
Reactive power	±0.05% (0.2A – 120A) ±0.1% (0.001A – 0.2A)
Apparent power	±0.05% (0.2A – 120A) ±0.1% (0.001A – 0.2A)
Active energy	±0.02% (0.2A – 120A) ±0.05% (0.01A – 0.2A) ±0.1% (0.001A –0.01A)
Reactive energy	±0.05% (0.2A – 120A) ±0.1% (0.001A – 0.2A)
Apparent energy	±0.05% (0.2A – 120A) ±0.1% (0.001A – 0.2A)
Range	0º – 360º
Error	±0.005º
Display range	0.0001º – 359.99º
Range	45Hz – 65Hz
Display range	45.0000 – 65.0000
High frequency output(C_H)	1×10¹⁰(1mA – 0.1A) 1×10⁹(0.1A – 1A) 1×10⁸(1A – 10A) 1×10⁷(10A – 120A)
Low frequency output(C_L)	2×10^-5×C_H
Pulse ratio	1:1
Output level	5V
Input level	5V
Input frequency	Max. 1MHz
Voltage Supply	220V ± 10%, 50/60Hz ± 2Hz
Ambient temperature	-10°C -- 45°C
Influence of external fields	≤ 0.05 % / mT
Relative humidity	10% -- 80%
Dimensions (W×H×D) (mm)	480mm×138mm×486mm
Weight (kg)	10kg
