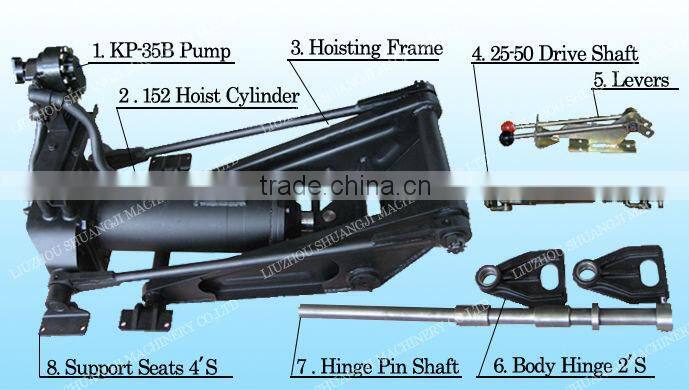

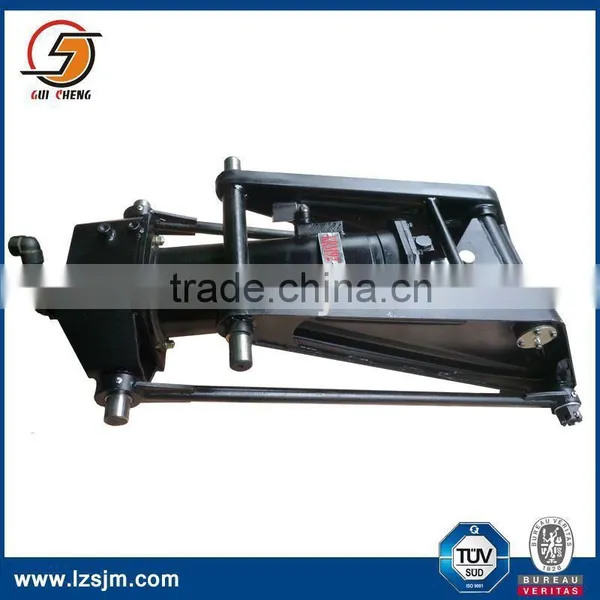

Help CenterAutomatic Hydraulic Hoist for Rear Dump Truck With Hinge Assembly
Related Products
-
Heavy Duty Work Rear Dump Truck Hydraulic Gear PumpNegotiableMOQ: 1 Set -
Rear Hinge Truck Scissor Type Hydraulic Hoist Complete With Competitive PriceUS$ 150 - 300MOQ: 1 Piece
-
Hydraulic Cylinder 3t Electric Single Beam CraneUS$ 150 - 300MOQ: 1 Piece
-
Southeast Asia Type Cross Hydraulic Cylinder Parts MechanismUS$ 150 - 300MOQ: 1 Piece
-
Tipper From Chinese Factory--hydraulic Hoist for Japan TruckUS$ 100 - 150MOQ: 1 Piece
main data of automatic hydraulic hose crimping machine
Hoist Mechanism, Dimensions and Weight (approx.)
Length(mm) |
Width(mm) |
Height(mm) |
Min. Mounting Distance(mm) |
Weight(kg) |
1120 |
528 |
350 |
749 |
122 |
Hoist Cylinder and Wheel Pump Combination Specification (approx.)
|
Hoist CylinderKRM92 |
Working Pressure (MPa) (Kgf/cm2) |
6.4 |
Gear Pump KP-35B |
Rotating Speed (rpm) |
800 |
65 | |||||
Inner Diameter (mm) |
160 |
Discharge Volume(ml/rev.) |
35 |
||
Stroke (mm) |
405 |
Max. Testing Pressure (MPa) (Kgf/cm2) |
|
||
Min. mounting (mm) distance |
666 |
17.2 |
|||
175 | |||||
Piston Rod Diameter (mm) |
45 |
Weight(kg) |
10 |
||
|
Max. pressure (MPa) (Kgf/cm2) |
14.7 |
||||
150 |
Hoist Mounting and Maximum Lifting Capacity
Recommended Truck G.W.(kg) |
Body Length(mm) |
Rear Overhang length(mm) |
Distance between Load Center and Hinge(mm) |
Distance between trunnion and the hinge(mm) |
Rated Lifting Capacity(kg) |
Designed Max. lifting Capacity(kg) (including load weight) |
4-5.5t |
3100 |
340 |
1210 |
1270 |
2000-3000 |
5500/60° |
About Us
Liuzhou Shuangji Machinery Co., Ltd is a professional hydraulic cylinder manufacturer over 10 years. We can offer wide range hydraulic cylinders, tie rod hydraulic cylinders, welded hydraulic cylinders, custom hydraulic cylinders, hydraulic pumps and hydraulic actuators, which are ISO9001 certified and patent products.
Our hydraulic cylinder are used for material handling equipment, on-highway trucks, grounds care equipment, aerial lifts, medical chairs and tables, forestry equipment, trash compactors and recycling bailers, agricultural equipment, construction equipment, log splitters, forklifts, trailers and many other fields.
Quality ControI
Our test including: Pressure test, Anti-Leakage test, Salt spray test, and Simulated field performance testing. All of the products are 100% tested before shipping to ensure reliable quality
With over 10years experiences on hydraulic cylinder, we can supply you
1. Hydraulic products with long life, superior performance and high reliability.
2. Our quality management system strictly implement ISO/TS 16949: 2009
3. Reliable quality, reasonable price and prompt delivery
4. Non-standard hydraulic cylinder according to customer's requests.

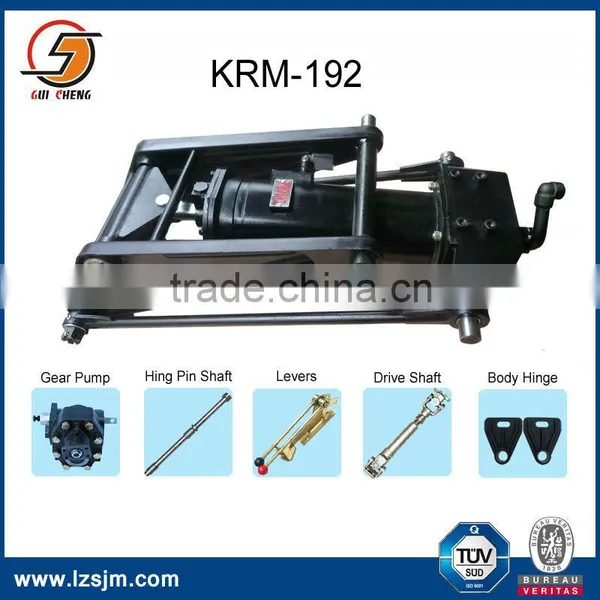

Reference Datas for KRM Series Hydraulic Cylinder:
(We also produce custom made Hydraulic Cylinder according to your specific requirments)
| Model | Cylinder Inner Hole Diameter(mm) | Piston Rod Diameter(mm) | Stroke(mm) | Lifting Capacity(Ton) |
| KRM-92 | 160 | 45 | 405 | 4-5.5 |
| KRM-143A | 140 | 60 | 530 | 6-9 |
| KRM-160S | 160 | 70 | 604 | 8-11 |
| KRM-160C | 160 | 70 | 794 | 6-8 |
| KRM-183 | 180 | 80 | 832 | 21-29 |
| KRM-201 | 200 | 100 | 878 | 25-32 |
| KRM-220(48") | 220 | 100 | 1123 | 18-25 |
| KRM-220(68") | 220 | 100 | 1620 | 20-29 |
