High tensile strength 630 stainless steel round bar Quality Choice
USD $5,000 - $6,500
/ Metric Ton
1 Metric Ton(Min.Order)
- 1500 Metric Ton / Metric Tons per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Standard | ASTM, AISI, DIN, EN, GB, JIS | Dimensions | Diameter 6mm~400mm | |
| Grade | 600 Series | Place of Origin | Jiangsu, China | |
| Brand Name | Yuanheng | Model Number | 17-4PH, 630, UNS S17400, din 1.4542 | |
| Type | Round | Application | Shipbuilding, marine shaft, pump shaft, valve parts, paper mill | |
| Shape | Round | Certification | BV | |
| Special Use | Valve Steels |
Product Description
1) Product feature:
| 1. Product: | High tensile strength 630 stainless steel round bar |
| 2. Steel type: | * American name: AISI 630, also known as 17-4PH, UNS 17400 |
| * Chinese name: 00Cr17Ni4Cu4Nb | |
| * Germany name: Din 1.4542 | |
| 3. Standard: | ASTM A564 |
| 4. Diameter: | From Ø1/4'' to Ø16'' ( Diameter: 6mm~400mm ) |
| Such as Ø1'', Ø2'', Ø2.5'', Ø3'', Ø3.5'', Ø4'', Ø4.5'', Ø4.5'', Ø5'',Ø6'', Ø7'', Ø8'' | |
| 5. Length: | 1~ 8meters |
| 6. Surface: | Bright |
| 7. Diameter tolerance: | H9, H11, H13, K9, K11, K13 etc…as per clients’ request etc |
| 8. Length tolerance: | 0/+50mm |
| 9. Finishing: | Solution treated + age hardening heat treated ( H900, H1100, H1150 etc ) |
| 10. Feature of 630: | High Tensile strength, high hardness after heat treated. |
| 11. Mechanical property: | T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5 |
| 12. Application: | * Shipbuilding industry, marine shaft, propeller shaft, rudder shaft, boat shaft, vessel shaft, |
| * pump shaft, machine-made industry, valve parts, paper mill equipment. | |
| 13. Delivery time | Generally within 25 days, as per the q’ty. |
| 14. Certificate: | ISO, BV, TUV, SGS, mill test certificate |
| 15. Package: | Good quality & fumigated wooden box, can better protect the bars. ( See pictures below ) |
| 16. More information: | Contact Vivian Zhu ( MP: +86-139 21352562 ) skype: vivian.316L |
2) Chemical composition:
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Cu | Nb |
| 630 | ASTM A564 | ≤0.07 | ≤1.0 | ≤1.00 | ≤0.04 | ≤0.03 | 15.0~17.0 | 3.0~5.0 | 3.0~5.0 | 0.15~0.45 |

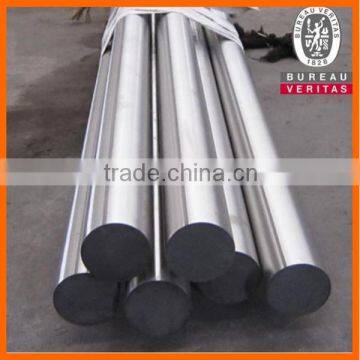

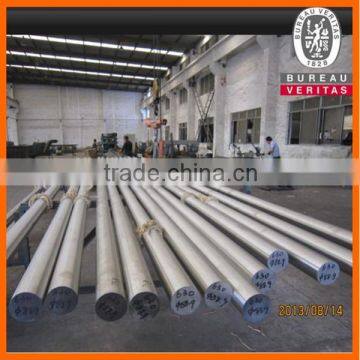

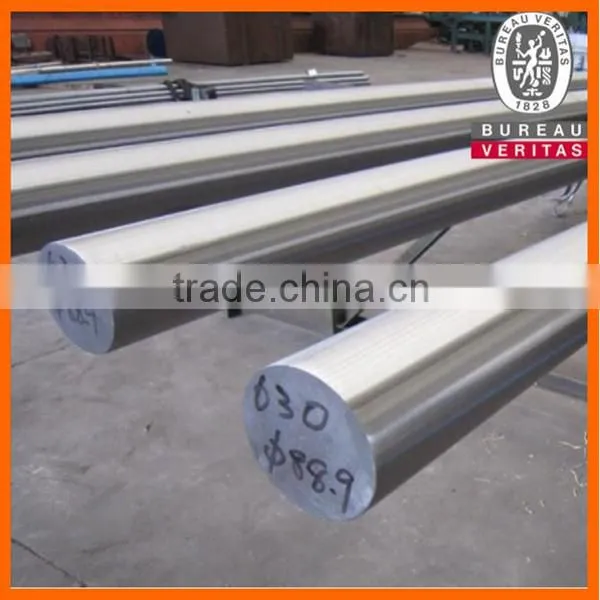

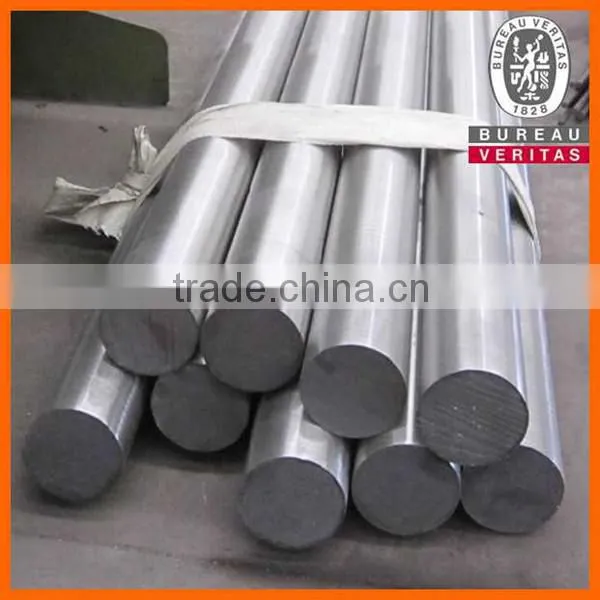

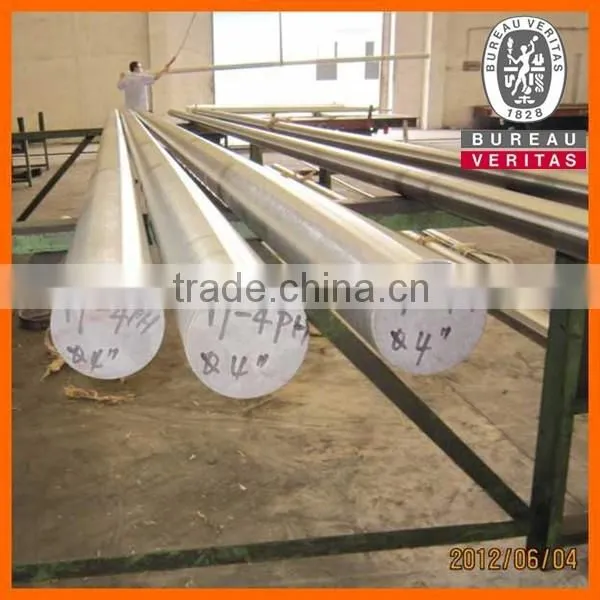

3): Product display:
4) Package:
5) Quality control:

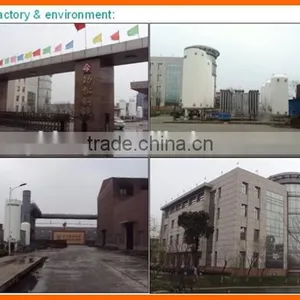

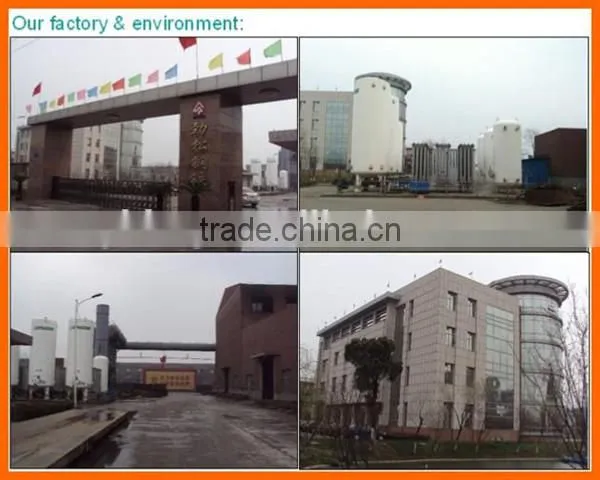

6) Factory:
7) Pass BV audit:
8) More information:
Jiangyin Yuanheng Stainless Steel Co., Ltd
Tel: +86-510-8358 1005
Fax: +86-510-8358 1004
Mobile/ WhatsApp/ Viber: 0086-139 21352562
Contact: Vivian
Skype: vivian.316L
Website: http://yhbxg.en.china.cn
Whatever your requirements - large or small - "Jiangyin Yuanheng" is prepared to put its experience to work for you. Challenge us to meet your need...(!!!)
Your success is our business!!!
