17 4ph Stainless Steel Rod
US$ 4.8 - 5.8
MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Standard:
ASTM, AISI, DIN, EN, GB, JIS
Dimensions:
1/4''~15''
Grade:
600 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard
ASTM, AISI, DIN, EN, GB, JIS
Dimensions
1/4''~15''
Grade
600 Series
Place of Origin
Jiangsu, China
Brand Name
Jiangyin Yuanheng
Model Number
630
Type
Round
Application
Construction industry, ship manufacturing, chemical industry
Shape
Round
Certification
BV
1) Product feature:
| 1. Product: | 17-4 PH stainless steel round bars, 630 stainless steel round rod |
| 2. Steel type: | * American name: AISI 630, also known as 17-4PH, UNS 17400 |
| * Chinese name: 00Cr17Ni4Cu4Nb | |
| * Germany name: Din 1.4542 | |
| 3. Standard: | ASTM A564 |
| 4. Diameter: | From Ø1/4'' to Ø16'' ( Diameter: 6mm~400mm ) |
| Such as Ø1'', Ø2'', Ø2.5'', Ø3'', Ø3.5'', Ø4'', Ø4.5'', Ø4.5'', Ø5'',Ø6'', Ø7'', Ø8'' | |
| 5. Length: | 1~ 8meters |
| 6. Surface: | Bright |
| 7. Diameter tolerance: | H9, H11, H13, K9, K11, K13 etc…as per clients’ request etc |
| 8. Length tolerance: | 0/+50mm |
| 9. Finishing: | Solution treated + age hardening heat treated ( H900, H1100, H1150 etc ) |
| 10. Feature of 630: | High Tensile strength, high hardness after heat treated. |
| 11. PH condition | Condition H900, H925, H1025, H1075, H1100, H1150 |
| 11. Mechanical property: | T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5 |
| 12. Application: | * Shipbuilding industry, marine shaft, propeller shaft, rudder shaft, boat shaft, vessel shaft, |
| * pump shaft, machine-made industry, valve parts, paper mill equipment. | |
| 13. Delivery time | Generally within 25 days, as per the q’ty. |
| 14. Certificate: | ISO, BV, TUV, SGS, mill test certificate |
| 15. Package: | Good quality & fumigated wooden box, can better protect the bars. ( See pictures below ) |
| 16. More information: | Contact Vivian Zhu ( MP/ WhatsApp/ Viber: 0086-139 21352562 ) skype: vivian.316L |
2) Chemical composition:
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Cu | Nb |
| 630 | ASTM A564 | ≤0.07 | ≤1.0 | ≤1.00 | ≤0.04 | ≤0.03 | 15.0~17.0 | 3.0~5.0 | 3.0~5.0 | 0.15~0.45 |

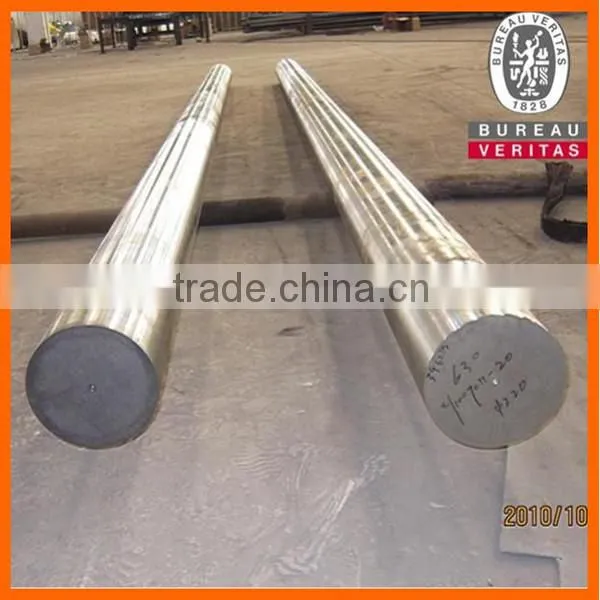

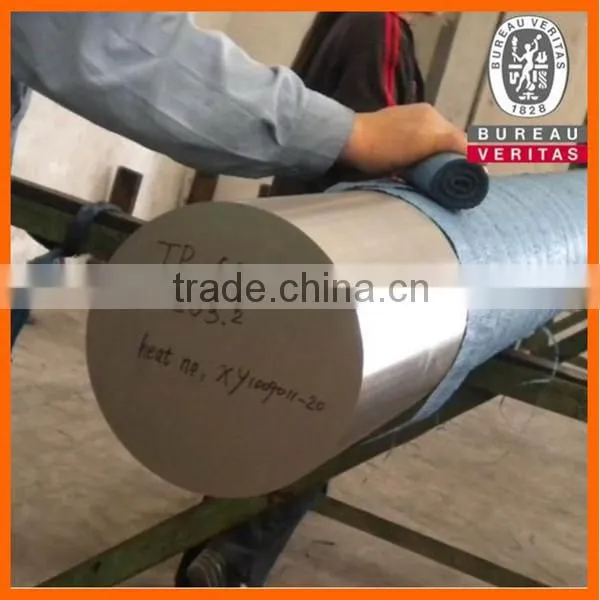

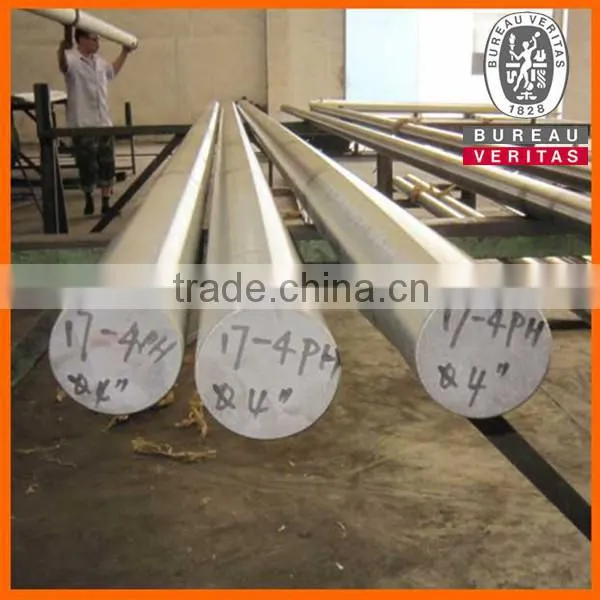

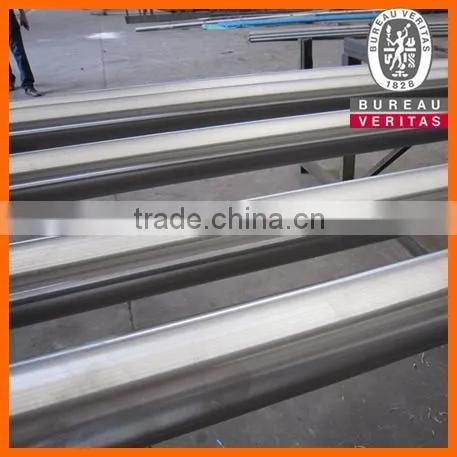

3): Product display:
4) Package:

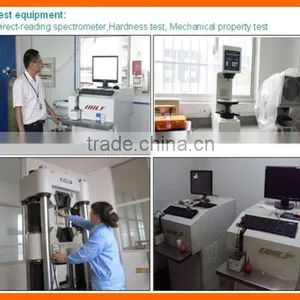

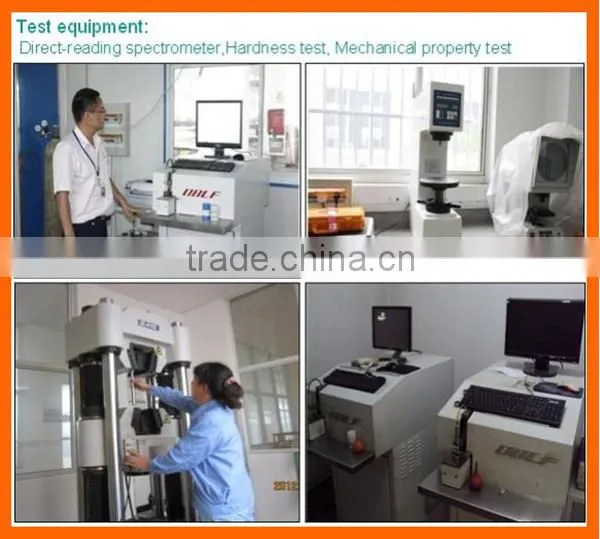

5) Quality control:
6) Factory:
7) Pass BV audit:
8) More information:
