304L Stainless Steel Round Bar
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Steel Grade:
304L
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Dimensions:
mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
316 Stainless Steel Round BarNegotiableMOQ: 1 Piece -
Professional Supplier of Stainless Steel 17-4ph Bright Round BarUS$ 5,800 - 6,800MOQ: 1 Ton
-
High Tensile Strength 630 Stainless Steel Round Bar Quality ChoiceUS$ 5,000 - 6,500MOQ: 1 Metric Ton
-
40 RodsUS$ 3,300 - 5,800MOQ: 1 Metric Ton
-
4.0 BarUS$ 3,300 - 5,800MOQ: 1 Metric Ton
Steel Grade
304L
Standard
AISI, ASTM, BS, DIN, GB, JIS
Dimensions
mm
Place of Origin
Jiangsu, China
Brand Name
yuanheng
Model Number
304L
Technique
Cold Drawn
Application
Tool Steel Bar
Alloy Or Not
Is Alloy
Special Use
Cold Heading Steel
Type
Other, stainless steel
1) Product feature:
| 1. Product: | 304L stainless steel round bar, 304L stainless steel bright round bar |
| 2. Steel type: | AISI 304L |
| 3. Standard: | ASTM A276, ASTM A484 |
| 4. Diameter: | From Ø1/4'' to Ø16'' ( Diameter: 6mm~400mm ) |
| Such as Ø1'', Ø2'', Ø2.5'', Ø3'', Ø3.5'', Ø4'', Ø4.5'', Ø4.5'', Ø5'',Ø6'', Ø7'', Ø8'' | |
| 5. Length: | 1~ 8meters |
| * Bright: peeled & polished, CNC machined, centreless grinding | |
| 6. Surface: | * Black |
| 7. Diameter tolerance: | H9, H11, H13, K9, K11, K13 etc…as per clients’ request |
| 8. Length tolerance: | 0/+50mm |
| 9. Finishing: | Solution treated |
| 10. Feature of 316L: | Addition of Molybdenum prevents specific forms of corrosion. Also known as "marine grade" |
| 11. Mechanical property: | T.S.: ≥515Mpa, Y.S.: ≥205Mpa, EL: ≥40%, Ruduction of area: ≥50% |
| 12. Application: | Shipbuilding industry, marine shaft, propeller shaft, transmission shaft |
| bolt & nuts, machine-made industry, food industry, paper mill equipment. | |
| 13. Delivery time | Generally within 15~20 days upon receipt the PO, as per the q’ty. |
| 14. Certificate: | ISO, BV, TUV, SGS, mill test certificate |
| 15. Package: | Good quality & fumigated wooden box, which can better protect the bars. ( See pictures below ) |
| 16. Experience:: | * Specialized in producing SS 316L round bar for propeller shaft purpose; |
| * Have a close connection with overseas shipyards , such as Indonesia, Thailand, Philippines, | |
| Singapore, Brazil, Canada etc., so have much experience in this field. | |
| 17. More information: | Contact Vivian Zhu ( MP: +86-139 21352562 ) skype: vivian.316L |
2) Steel grade:
| Type 301 | highly ductile, for formed products. Also hardens rapidly during mechanical working; |
| Good weldability. Better wear resistance and fatigue strength than 304. | |
| Type 302 | same corrosion resistance as 304, with slightly higher strength due to additional carbon. |
| Type 303 | easier machining version of 304 via addition of sulfur and phosphorus. |
| Type 304 | the most common grade; the classic 18/8 stainless steel. |
| Type 309 | better temperature resistance than 304 |
| Type 316 | the second most common grade (after 304); for food and surgical stainless steel uses; |
| Alloy addition of molybdenum prevents specific forms of corrosion. Also known as "marine grade" | |
| stainless steel due to its increased resistance to chloride corrosion compared to type 304. | |
| SS316 is often used for building nuclear reprocessing plants; Most watches that are made of stainless | |
| Type 321 | Similar to 304 but lower risk of weld decay due to addition of titanium. |
| See also 347 with addition of niobium for desensitization during welding. | |
| Type 416 | easy to machine due to additional sulfur |
| 600 Series | martensitic precipitation hardening alloys |
| Type 630—most common PH stainless, better known as 17-4; 17% chromium, 4% nickel |

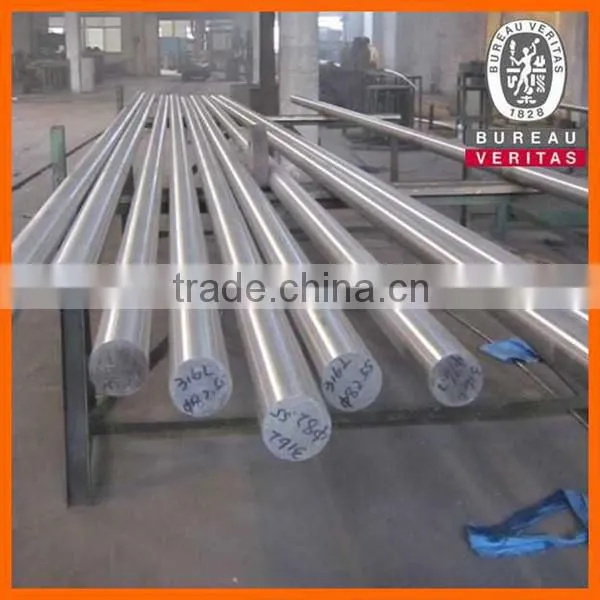

3): Product display:

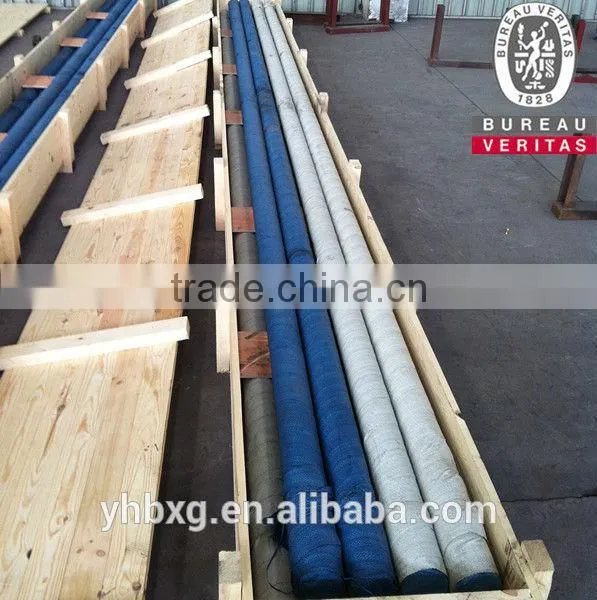

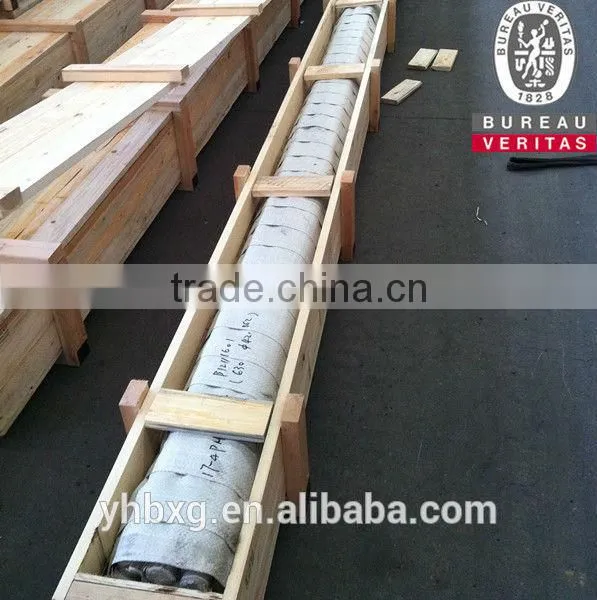

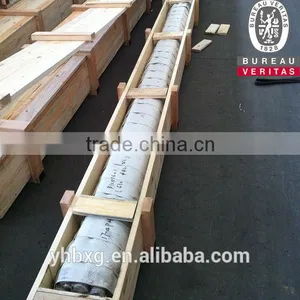

4) Package:
5) Quality control:
6) Factory:
7) Pass BV audit:
8) More information:
Jiangyin Yuanheng Stainless Steel Co., Ltd
Tel: +86-510-8358 1005
Fax: +86-510-8358 1004
Mobile: 86-139 2135 2562
Contact: Vivian
Skype: vivian.316L
Website: https://img13.fr-trading.com
Whatever your requirements - large or small - "Jiangyin Yuanheng" is prepared to put its experience to work for you. Challenge us to meet your need...(!!!)
Your success is our business!!!
