630 Stainless Steel Round Bar

Name: 630 Stainless Steel Round Bar
Brand: yuanheng
SKU: 109733093
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Steel Grade:

630

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Dimensions:

Jiangyin Yuanheng Stainless Steel Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Steel Grade 630

Standard AISI, ASTM, BS, DIN, GB, JIS

Dimensions mm

Place of Origin Jiangsu, China

Brand Name yuanheng

Model Number 630

Technique Cold Drawn

Application Tool Steel Bar

Alloy Or Not Is Alloy

Special Use Cold Heading Steel

Type Other, stainless steel

Quick Details

Packaging Details:	630 stainless steel round bars packed in good quality & fumigated wooden boxes.
Delivery Detail:	Generally within 25~30 days upon receipt the PO

1) 630 stainless steel
2) Dia.: 1/4''~16''
3) Standard: ASTM A564
4) Solution + H1150
5) Pass BV audit

1) Product feature:

1. Product:	17-4 PH stainless steel round bars
2. Steel type:	* American name: AISI 630, also known as 17-4PH, UNS 17400
	* Chinese name: 00Cr17Ni4Cu4Nb
	* Germany name: Din 1.4542
3. Standard:	ASTM A564
4. Diameter:	From Ø1/4'' to Ø16'' ( Diameter: 6mm~400mm )
4. Diameter:	Such as Ø1'', Ø2'', Ø2.5'', Ø3'', Ø3.5'', Ø4'', Ø4.5'', Ø4.5'', Ø5'',Ø6'', Ø7'', Ø8''
5. Length:	1~ 8meters
6. Surface:	Bright
7. Diameter tolerance:	H9, H11, H13, K9, K11, K13 etc…as per clients’ request etc
8. Length tolerance:	0/+50mm
9. Finishing:	Solution treated + age hardening heat treated ( H900, H1100, H1150 etc )
10. Feature of 630:	High Tensile strength, high hardness after heat treated.
11. Mechanical property:	T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5
12. Application:	* Shipbuilding industry, marine shaft, propeller shaft, rudder shaft, boat shaft, vessel shaft,
12. Application:	* pump shaft, machine-made industry, valve parts, paper mill equipment.
13. Delivery time	Generally within 25 days, as per the q’ty.
14. Certificate:	ISO, BV, TUV, SGS, mill test certificate

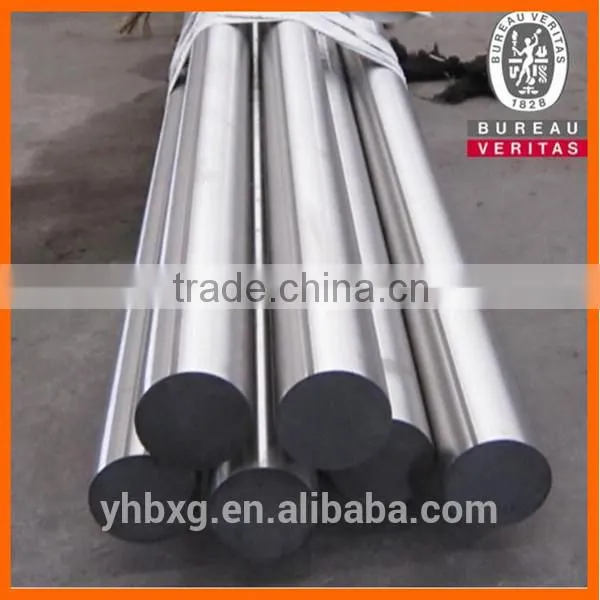

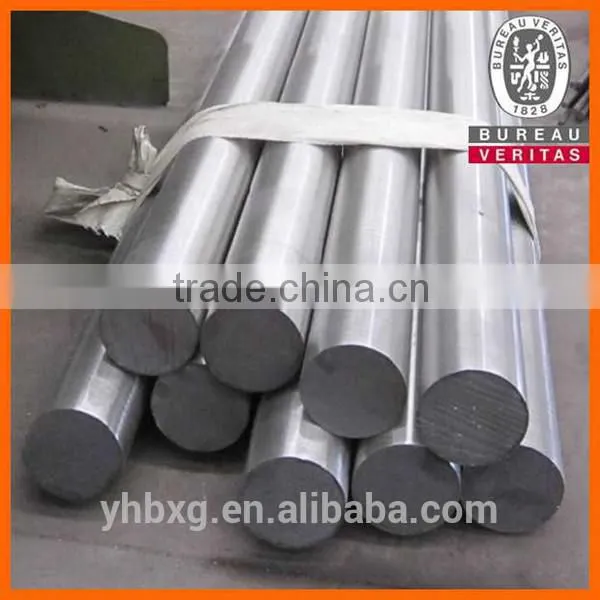

15. Package:	Good quality & fumigated wooden box, can better protect the bars. ( See pictures below )
16. More information:	Contact Vivian Zhu ( MP: +86-139 21352562 ) skype: vivian.316L
