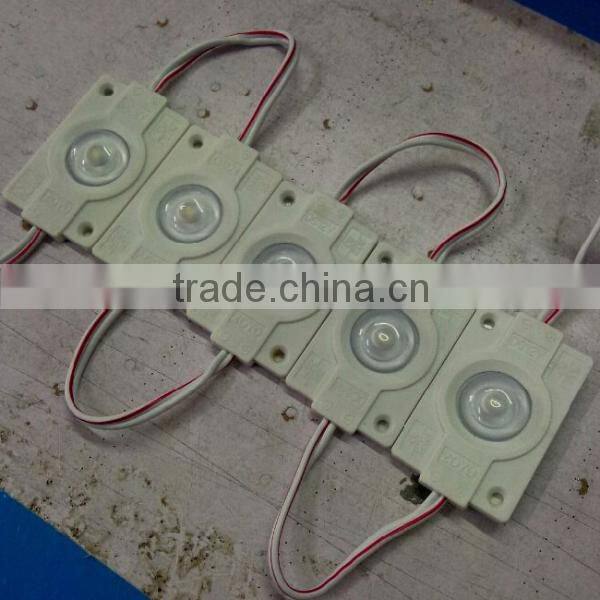

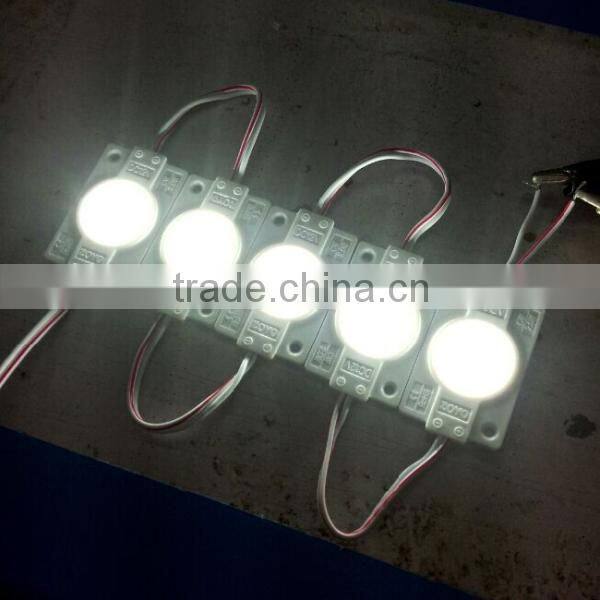

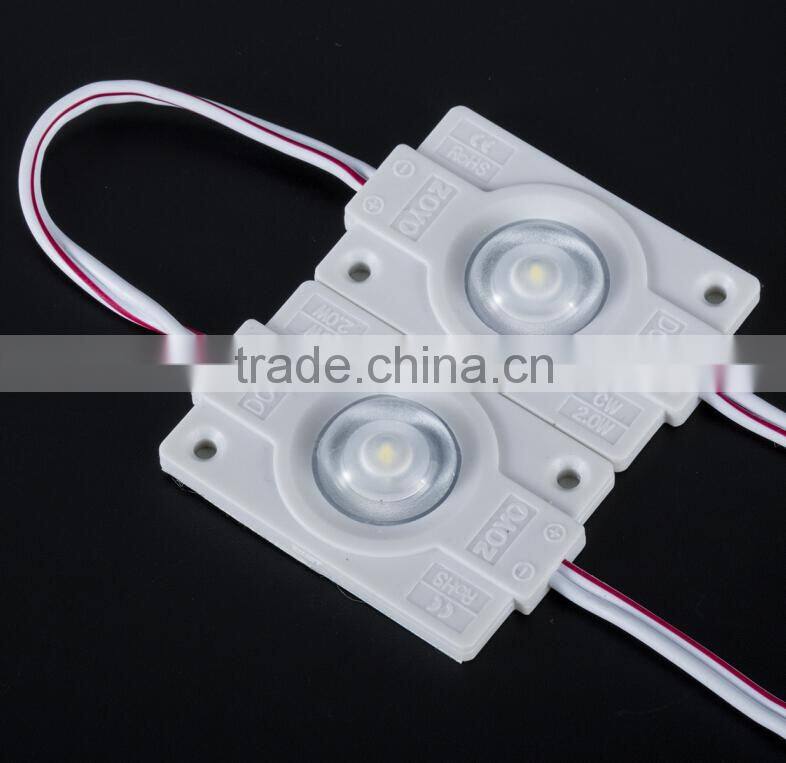

High Power Led Module 2W With Lens Waterproof Led Module 12V 5 Year Warranty
- Shenzhen Port/HK Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
3*2835 Smd Led Module Advertising Light Box and Channel Letter Led Light
-
Waterproof 2835 Led Module 0.72w 12v Led for Advertisment High Power Led Injection Module for Light Box With CE ROHS
-
Shenzhen EXW Price High Power Advertising SMD Led Modules
-
CE Rohs High Brightness Smd2835 RGB Led Module Made in Shenzhen
-
SMD Led Module 1.5W With Lens Injection Led Module Samsung Led Module Rgb Led Module
-
Injection Led Module for Led Letters 5050 Led Module Led Display Module 12V Led Sign Module Light Led Sinage Lighting
Product Details
| Model Number | Loong series-MD451F | Chip Material | InGaN | |
| Emitting Color | Other, warm white/cold white | Luminous Flux(lm) | 160 | |
| Power | Other, 2W | Color Rendering Index(Ra) | 83 | |
| Color Temperature | 3000k/6000k | Operating Temperature(℃) | -20, +45 | |
| Storage Temperature(℃) | -30, +60 | Place of Origin | Guangdong, China | |
| Brand Name | ZOYO | Certification | CE |
Product Description

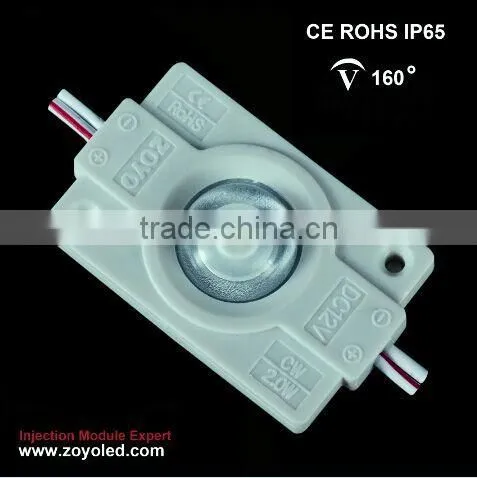

High power led module 2W with lens waterproof led module 12V 5 year warranty
Product Advantage
1. Epistar LED, 5 Year Warranty
2. Constant current driving mode
3. Wide Beam Angle 165 degree
4. PMMA optic lens
5. High lumen & high power
6. Patented unique design
7. OEM/ODM available
8. CE & RoHS certified

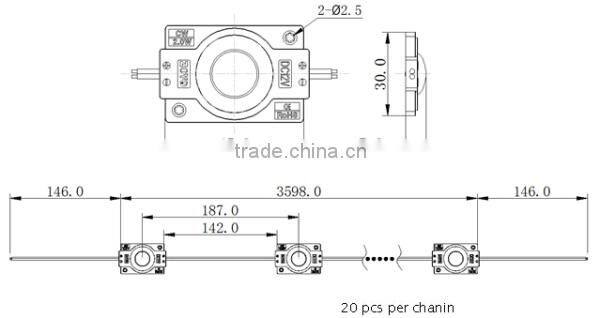

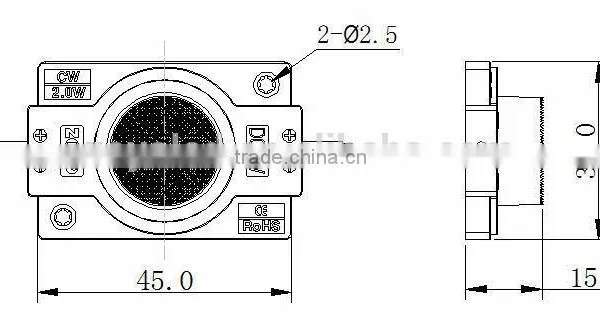

Product Sketch
Product Parameter
Parameters (Room temperature =25℃) | |||||||
Items | Parameter | Unit | |||||
LED Type | 3030 |
| |||||
LED Quantity | 1 | PCS | |||||
Concatenation | 20 | PCS | |||||
Dimension | 45*30*7.6 | mm | |||||
Power | 2 ±10% | W | |||||
Modules’ Centre Dis. | 187 | mm | |||||
Input V. | DC12V | V | |||||
Input C. | 0.167 | A | |||||
Drive Mode | Constant Current |
| |||||
Surface Temp. | < 45 | ℃ | |||||
Working Temp. | -20 ~ +45 | ℃ | |||||
Storage Temp. | -30 ~ +60 | ℃ | |||||
Protect Level | IP65 | - | |||||
Optical and Electrical Parameters (Room temperature =25℃) | |||||||
Test Item | Test Condition | Symbol | Parameters | Unit | |||
Min. | Typical | Max. | |||||
Color Temperature | DC12V | CCT | 5800 | 6500 | 7300 | K | |
CRI | DC12V | CRI | 70 | 75 | 80 | Ra | |
Luminous Flux | DC12V | Φ | 145 | 150 | 155 | lm | |
Light Efficiency | DC12V | LPW | 73 | 75 | 78 | lm/W | |
Visual Angle | DC12V | Wd | 155 | 160 | 165 | Deg | |
High power led module 2W with lens waterproof led module 12V 5 year warranty

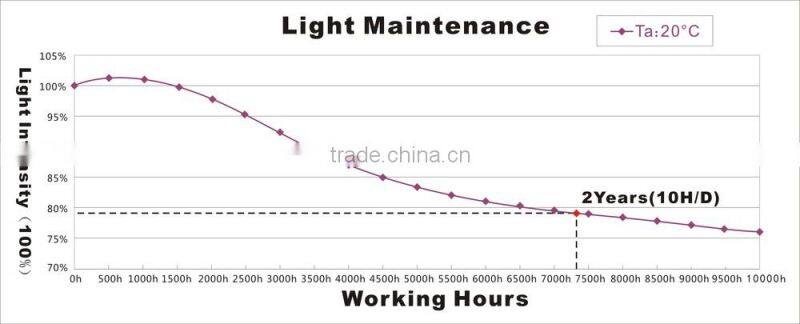

Light Attenuation Graph

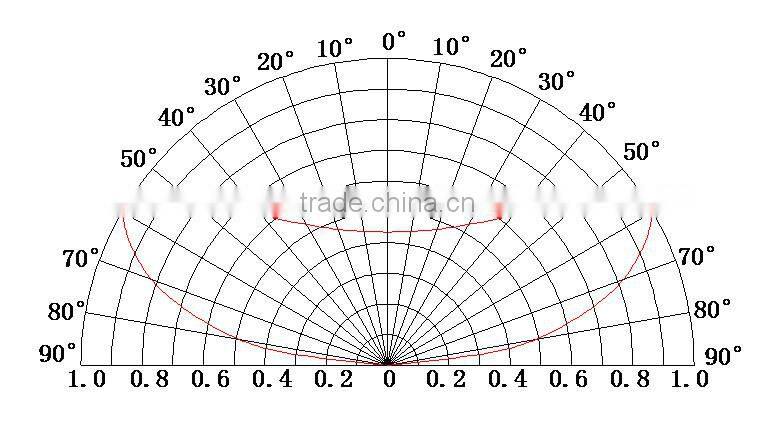

Light Distribution Curve:
Instructions

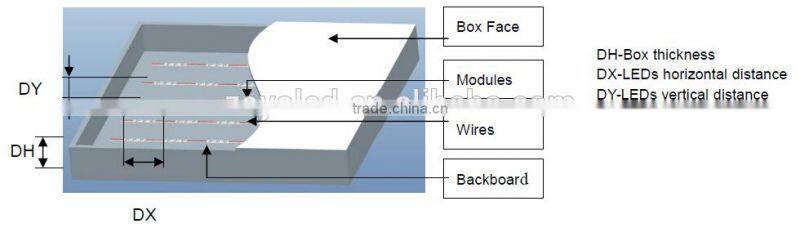

1. Modules Positioning (Vertical and Horizontal)
Item Code | Light box thickness DH(mm) | Module horizontal distance DX(mm) | Module vertical distance DY(mm) | Module Qty. in 1m2 (pcs/m²) | Surface illumination (lux) |
MD451F | 150 | 170 | 170 | 35 | 780 |
Remarks: 1.The box panel is 3mm height acrylic board, 60% transmittance. | |||||
2.Installation
-- Clean the fixation board and stabilize it.
-- Position the module with double sided tape and stick on the back of board.
-- Use silicon glue to fix modules (if needed).
-- Screw mounting the modules on the fixation board.
High power led module 2W with lens waterproof led module 12V 5 year warranty
Product Application
Product Package
Shipping
1.FedEx/DHL/UPS/Russian express/ARAMEX for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3.Customers specifying freight forwarders or negotiable shipping methods;
4.Delivery Time: 3-5 days for samples; 10-15 days for batch goods.
Payment terms:
1. Payment: T/T, Western Union, PayPal,irrevocable L/C at sight; 30% deposits; 70% balance before delivery
2.MOQ:20 pcs
3.Warranty: 5 years
4.Package informations:1000pcs per carton/The volume of the box is 530mmx330mmx200mm.
Why choose us?
1.We are Alibaba Assessed Gold Supplier;
2.We are a factory professional manufacturing Injection molding LED modules,Best production
capability,best quality control,Best service.
3.We have our own R&D engineers team,best product innovation capabilities;
4.100% QC inspection Before Shippment;
5.CE/ROHS listed,factory direct sales,competitive price.
