Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
MA823F
Chip Material:
InGaN
Emitting Color:
Cool White
Contact Supplier Request Quote Chat Now
Shenzhen ZOYO Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number MA823F
Chip Material InGaN
Emitting Color Cool White
Luminous Intensity 1820lux
Luminous Flux(lm) 155
Optical Attenuation(%) 0.5
Power 3W
Power Dissipation 1.6W
Color Rendering Index(Ra) 80
Color Temperature 3000k~15000k
Operating Temperature(℃) -20, 45
Storage Temperature(℃) -30, 60
Place of Origin Guangdong, China
Brand Name ZOYO
Certification CE

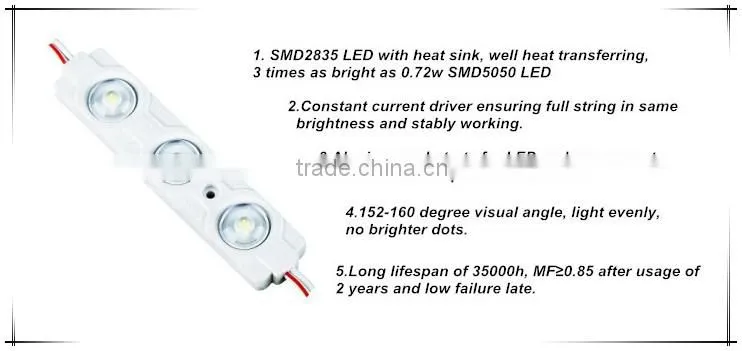

Product Characteristics:

1. Adopted with SMD2835 / 5630 / 5730 LED.

2. Constant Current Driving.

3. Special lens design, 160° viewing angle and light evenly.

4. With aluminum PCB for LED heat dissipation.

5. One time injection molding technology, reliable sealed, IP65.

6. CE/Rosh certifications with 3 years warranty.

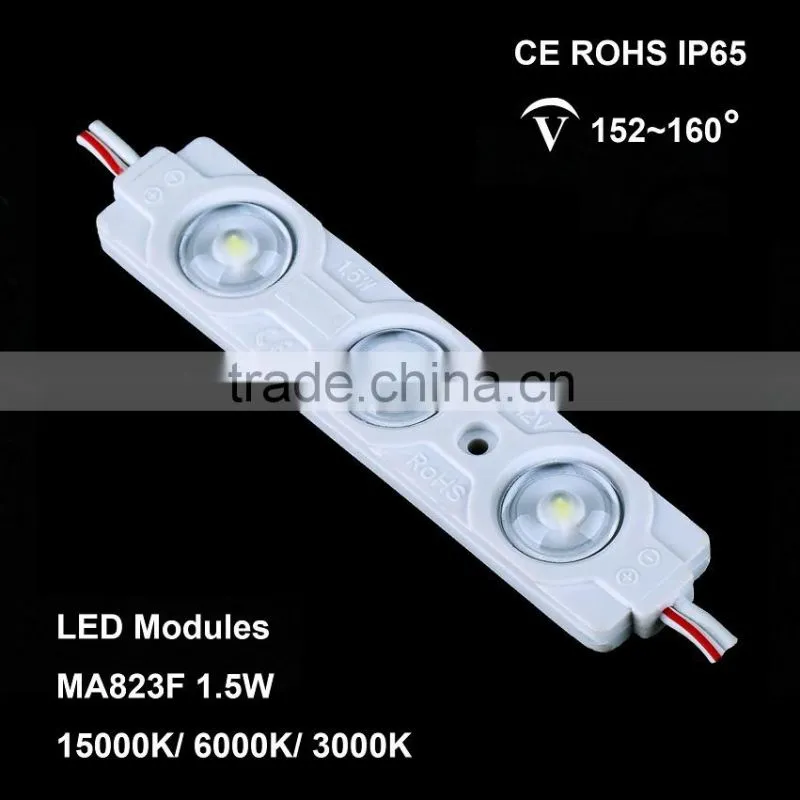

Product Photo:

samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt

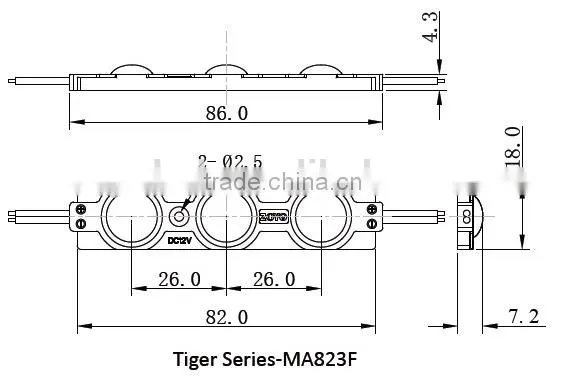

Product Sketch:

samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt

  samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt



Product Parameters: (Room temperature =25°C)

Items

Parameter

Unit

LED type

SMD2835



LED Quantity

1

PC

Concatenation

20

PCS

Dimension

82*18*7.2

mm

Power

1.6

W

Beam Angle

152~160

°

CCT

15000

K

CRI

80

Ra

Input V.

DC12

V

Input C.

0.125

A

Surface Temp.

< 40

°C

Working Temp.

-20 ~ +45

°C

Storage Temp.

-30 ~ +60

°C

Protect Level

IP65

-



Light Attenuation Graph:

samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt



Light Distribution Curve:

   samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt



Instructions:

1. Modules Positioning (Vertical and Horizontal)




Item Code

Light box thickness

 DH (mm)

Module horizontal

distance

DX (mm)

Module vertical

distance

DY mm

Modules average

in 1m2

(pcs/m²)

Surface illumination

(lux)

MA823F

150

244

244

48

1820

Remarks: The panel is 3mm acrylic board with transmittance 56%.

samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt

2. Installation

-- First position the module with double sided tape onto the back of board, then fix with Silicon glue.

-- Silicon glue directly fixing modules, but before installation, cleaning or polishing module surface.

-- Screw mounting the modules on the board.





Packaging:

Anti-static bag & standard export carton box:

20pcs in a string,5 strings/100pcs in an bag,12bags/1200pcs/G.W.19.5kg/52*46*26cm/carton.

samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt

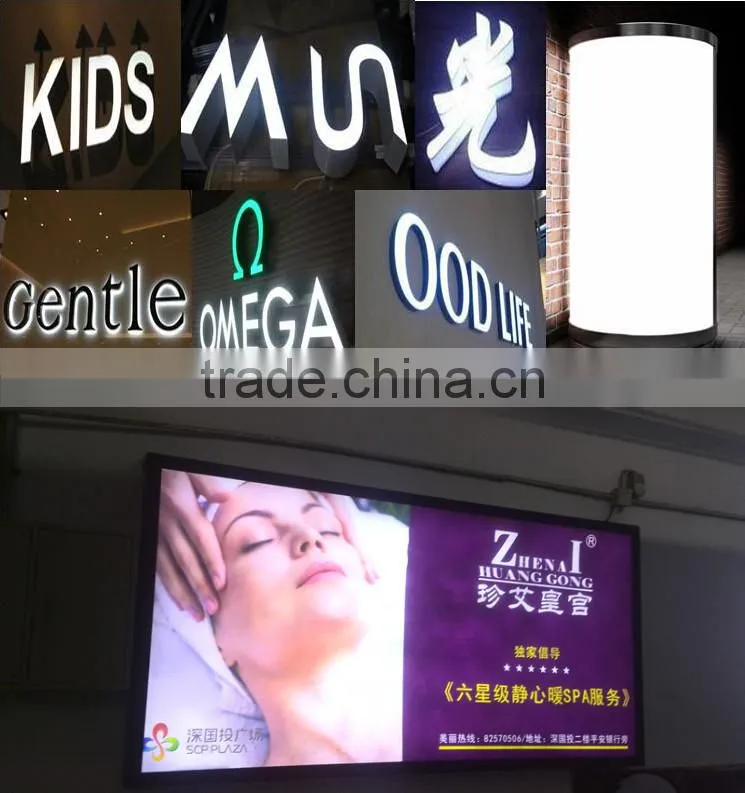

Product Applications:

Applications: channel letter lighting, sign lighting, metro sign, advertising box of commercial centre’s & highway, bus station board, airport light board, back light source.

samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt

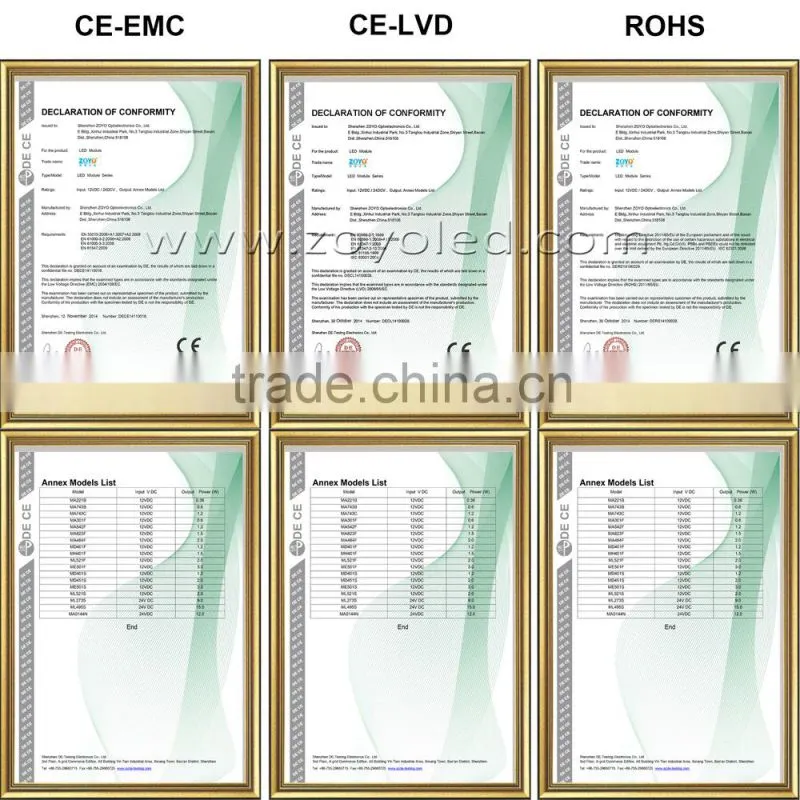

Product Certificates:

samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt

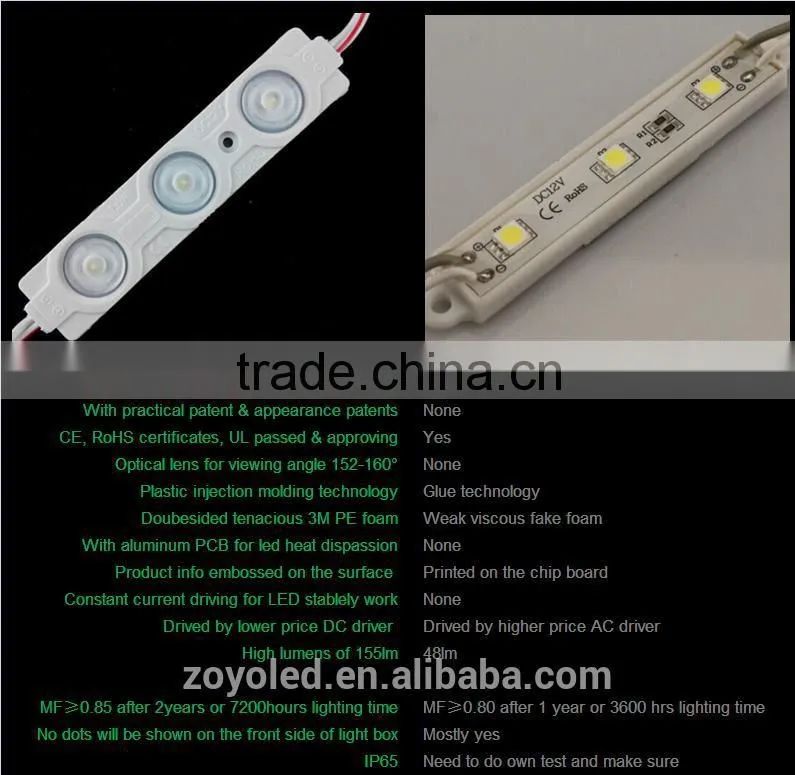

Comparing with Old Version with 3LEDs:

samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt



Factory View:

Our factory set up in 2006, director of R&D Dept. has nearly 15years experience in LED module design; We focus on injection LED module; with constant current driving for LED stablely working; high power led module max. 3watt/pc with aluminum PCB for heat dispassion, wide beam angle of 160 degree.

samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt



Payment Terms:

1. Payment: 30% deposits before production, 70% balance to be paid before delivering.

2. Sample can be delivered in 1day, order around 10days.

3. Discounts are offered based on order quantities.

4.  T/T or irrevocable L/C at sight; accept Western Union, PayPal payment.



Shipping Method and Shipping Time:

1. Express (DHL, UPS, FEDEX, TNT): around 3-6 days.

2. Ocean shipping: around 15days to 1month.



Our Services:

1. For all your inquires of us or our products, we will reply you in details within 12 hours.

2. Own well-trained and professional sales & after- sale services who can speak fluent English language.

3. Offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.

4. Experienced R&D engineers and we have strong ability to do ODM projects.



Dear Sir or Madam,

Thanks for your showing keen interest in our new design -high power 3chips LED module MA823F.

Fore more details, pls contact us freely.



samsung led module korea led module 5050 led module 0.36w 0.6w 0.72w 1w 1.2w 1.5w 2w 3w 6w 9 w 12 watt 15watt





Sincerely,

Monkoon

Sales Supervisor
