Product Details
Model Number: | ME501S | Chip Material: | InGaN | Emitting Color: | Other, Daylight White |
Luminous Flux(lm): | 295 | Power: | 3W | Power Dissipation: | 3 |
Color Rendering Index(Ra): | 80 | Color Temperature: | 6000K/ 3000K/ 9000K | Operating Temperature(℃): | -40, 60 |
Storage Temperature(℃): | -50, 60 | Place of Origin: | China | Brand Name: | ZOYO |
Certification: | CE |
Product Description
SMD5050 LED Modules High Power LED Modules 3W 9w 12 w 15 watt 15w SMD LED Modules China led modules korea high power rgb led modules nichia waterprrof led modules for ceiling lights injection module with lens samsung led modules cree led modules LED Module LED Display Module WIFI Module
What are the details of high power LED module ME501S?
high power LED modules Edge Emitting for doublefaced doublesided sign illumination
No. | Items | Parameters |
1. | Product No. | ME501S |
2 | Size | 52*30*7.6mm |
3 | LED | 3watt/pc |
4 | Drive type | Constant current driving IC |
5 | Input voltage | DC12V |
6 | Input Current | 0.25A |
7 | Power | 3W |
8 | Luminous Flux | 295 lm |
9 | Color Temperature | 8000K/ 6000K/ 3000K |
10 | Beam angle | 45*15 degree |
11 | IP rate | IP65 |
12 | Structure & material | Pure Aluminum PCB, ABS process, PMMA optic lens |
13 | Warranty | 5 years warranty |
14 | Quick Delievery | 1-7days |
15 | Certificate | CE (EMC+LVD) & ROHS |
16 | Working temperature | -40~+60°C |
17 | Stock temperature | -50~+60°C |
18 | Wire distance | 192mm |
19 | QTY. /Square meter | 8-12pcs |
20 | Application | advertising signs / channel letters / light boxes, and etc.. |
21 | Other | ODM service available |

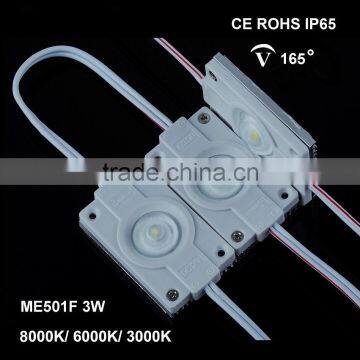

Product Photo:
Product Structure:
Applications & Installation:
1.As backlight source for signages, channel letters, advertising boards, outdoor or indoor projects.
2.Illuminating ceiling panels in elevators, offices, conforence rooms, shopping mall, and etc..
What are the most popular LED modules and popular color tempreture?
Product Name | Items | Power | Color Tempreture | Size | Remark |
Bee Series | MA221B | 0.36w | 15000K/ 6000K/ 3000K | 22*10*4.8mm | Backlit |
Bee Series | MA743B | 0.6w | 15000K/ 6000K/ 3000K | 74*12*4.8mm | Backlit |
Bee Series | MA743C | 1.2w | 15000K/ 6000K/ 3000K | 74*12*4.8mm | Backlit |
Tiger Series | MA301F | 0.6w | 15000K/ 6000K/ 3000K | 30*18*6.4mm | Backlit |
Tiger Series | MA542F | 1.2w | 15000K/ 6000K/ 3000K | 54*18*6.4mm | Backlit |
Tiger Series | MA653F | 0.72w | 15000K/ 6000K/ 3000K | 65*14.5*4.8 | Backlit |
Tiger Series | MA823F | 1.5w | 15000K/ 6000K/ 3000K | 82*18*7.2mm | Backlit |
Tiger Series | MA484F | 2w | 15000K/ 6000K/ 3000K | 48*36*6.4mm | Backlit |
Loong Series | MD451F | 2w | 6000K/ 3000K/ 9000K | 45*30*8.8mm | Backlit |
Loong Series | MH401F/MD401F | 1.5w | 6000K/ 3000K/ 9000K | 40*28*7.4mm | Backlit |
1.2w | 6000K/ 3000K/ 9000K | ||||
CREE XBD LED | ML521F | 2w/3w | 6000K/ 3000K | 52*28*7.4mm | Backlit |
Eagle Series | MD401S | 1.2w | 6000K/ 3000K | 40*35*15mm | Edge light |
Eagle Series | MD451S | 2w | 6000K/ 3000K | 45*35*15mm | Edge light |
CREE XBD LED | ML521S | 2w/3w | 6000K/ 3000K | 52*35*15mm | Edge light |
CREE XBD LED | ML273S | 9w | 6000K/ 3000K | 273*26*15mm | Edge light |
CREE XBD LED | ML495S | 15w | 6000K/ 3000K | 495*26*15mm | Edge light |
Where do ZOYO LED modules apply for signage outdoor projects?
1.Advertising signs, LOGO & Channel Letters backlight.
2.Light source for advertising boxes or cabinets.
3.Ceiling lighting for elevators, conforence rooms, office, builidings.
4.And etc..
Packaging, Shipping &Trading Terms:
Strong package, standard export carton:
Fast Shipping & instent delivery:
1.FedEx/DHL/UPS/Russian express/ARAMEX for samples, Door-to-Door. Less than 10,000pcs orders are due to instent delivery.
2.Delivery by customer's own forwarder.
Trading Terms:
T/T, Western Union, PayPal, irrevocable L/C at sight.
Why choose us?
1.We are Alibaba Assessed Gold Supplier.
2.We are a factory professional manufacturing Injection molding LED modules with present 16 injection machines, SMT machines, wire solderings for large production capability of 1million pieces a month, ISO9001:2008 quality control system, instant services.
3.We have our own R&D engineers’ team, strong product innovation capabilities.
4.100% Quality assured before shipment, 0 complain after customers received cargo.
5. factory direct sales, most competitive prices for LED Modules distributors & wholesalers.
Company View:
CE (EMC+LVD) & ROHS certificates:
Our Exhibitions:
FAQs:
Q1: Can I get some free samples for testing?
A1: Yes, free samples are available for your test, with freight collect or prepaid by Paypal or Western Union or T/T.
Q2: How can I test ZOYO LED modules?
A1: Connect the wire of modules to your own power supply whose output voltage should be DC12V or DC24V.If you do not have such a power supply, please ask us to provide with samples. Meanwhile, pls kindly note the +/- marks on the wire and connect to the +/- pole of power supply correctly.
Q3: What are the advantages of constant current circuit driving LED modules?
A3: Constant current driving ensures full string of 20pcs working in same brightness and stably working, also greatly benefits the fluctuating power efficiency and maintain longer lifespan of LEDs.
Q4: Do you also sell power supplies or extra connectors for ZOYO LED modules?
A4: Yes. But please make sure the power supply should allow some capacity to protect itself and modules with 20%~30% capacity unused, i.e. Power Input is 20%~30% more than the exact power consumption of modules connected to it.
Q5: What is the max quantity of one string?
A5: Normally we suggest max 20pcs a string, then connect to a power supply directly. Meanwhile, if you really need more quantity of a string, please contact us to check the possibility.
Q6: Are ZOYO LED modules dimmable?
A6: Most of our LED modules are non-dimming. As constant current driving circuit not allow the voltage through LEDs varying. But we can do whatever you request based on MOQ no less than 10,000pcs. By the way, RGB modules are only available with ODM service at present.
Q7: Can I install the high power LED modules into outdoor advertising boards or use in opening conditions directly?
A7: Our modules’ protection level is IP65, are suitable to be used in outdoor lights boxes, channel letters or carbines, but we suggest better not to be exposed to opening conditions avoid damages.
Q8: Do you accept OEM or ODM service?
A8: Yes. Lead time for ODM sample is around 3 days and for bulk order needs around 2 weeks.
Q9: Is there any cheap shipping method importing to our country?
A9: For small orders, express will be best; for bulk orders, shipment by sea is the cheapest way but takes longer time.
For urgent orders, we suggest DHL or Fedex IP with door to door service.
Kindly be assured we will always check the best shipping way for you.
Q10: Can we get a good price for your high power injection LED modules, as we are selling low power modules mostly at present?
A10: You can inform us your own present market demands, we can help you to learn more advantages of high power, such as lower cost for one square meter, lower installing charge, bright enough for thicker structures, and so on. Regard prices, we offer discounts based on order quantity.
Q11: Can you tell me the differences of ZOYO LED modules with optical lens and without?
A11: Kindly note the truth optic lens occurs is to avoid brighter dots and to get evenly light effect of high power LED modules. It's unnecessary to use lens for low power LED modules such as 0.24w, 0.48w, 0.72w. If evenly light needed, our 0.72w MA653F with 3 lens, 170 degree angle with promotion prices US$0.2 can meet demands of thin light boxes of 30mm to 100mm depth economically. Additionally, as LED modules would be the perfect light sources for advertising signs, high power modules with lens are suitable for various applications.
Q12: What's the differences between 3M and fake 3M double faced adhesive tape?
A12 For the details, please contact Ms. Monkoon to Email: info1 at or to Skype /WeChat/ WhatsApp ID: monkoonjou.
Q13: What is the warranty for your injection LED modules with lens?
A13: We offer 3 years' warranty for Samsung, Epistar or Sanan LED injection modules with lens, 5 years warranty for Cree or Osram LED. If any product problems occurred during warranty, we take responsibility to send you replacements immediately.
How to contact us?
Contact Ms. Monkoon via info1 at or via Trade Manager ID: cn1511651355 or write down your inquiry in the below blank column, and click "Send" now! Free samples are waiting for you.
Finally, hope ZOYO LED and bellow Monkoon Jou have the honor to support you well in future!
