Specifications
2014 new Hot sale led module light 9watt/15wattInjection molding,
Constant Current driver,
Optical lens.
2014 new Hot sale led module light 9watt/15watt

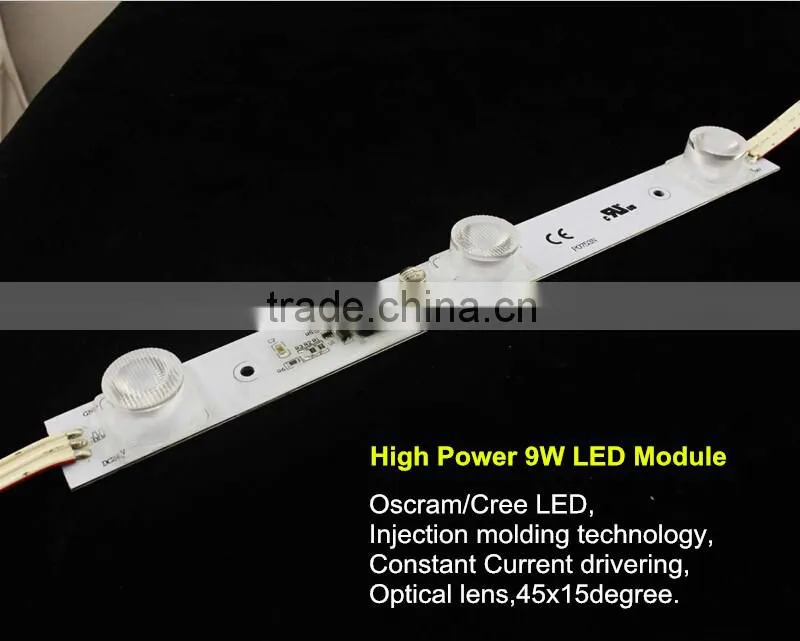

Products Characteristics :
1.Adopting super bright CREE/OSCRAM LED.
2.Constant Current Driver.
3.Special lens design,45X15° beaming angle and light evently.
4.With aluminum PCB for heat dissipation.
5.Injection molding technology,reliable sealed,IP65.
6.CE/Rohs certifications with 5 years warranties.
Products Parameters
No. |
Item |
Parameter |
1 |

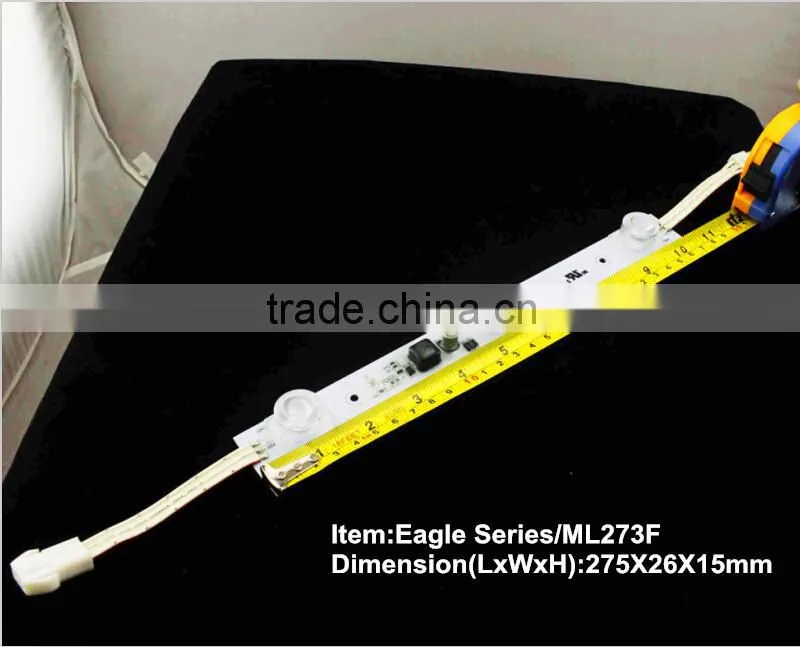

Module Size |
L275*W26*H15mm |
2 |
LED |
1 pcs XBD SMD LED |
3 |
Drive type |
Constant current drive |
4 |
Input voltage |
DC24V |
5 |
Beam angle |
45*15 degree |
6 |
Power(single module) |
9 W |
7 |
Luminous Flux |
810lm |
8 |
Color Rendering Index |
83 |
9 |
Color Temperature |
3000/6000K |
10 |
Emitting Color |
Warm white/Cool white |
11 |
Structure & material |
Aluminum PCB. PVC cover |
12 |
Certificated |
CE/ROHS |
13 |
IP Level |
IP65 |
14 |
Working temperature |
-20~+45°C |
15 |
Stock temperature |
-30~+60°C |
16 |
Qty.(pcs)/square meter |
4~6 pcs |
17 |
Box thinckess(mm) |
150~350 |
18 |
Light side |
Doublesided |
19 |
Driver type |
Constant current |
20 |
Warranty |
5 years |
Product Show
Instructions
1. Installation
-- First position the module with double sided tape onto the back of module,then fix with glue.
-- Silicon gel directly fixing modules,but before installation,cleaning or polishing module surface.
-- Screw mounting the modules on the board.

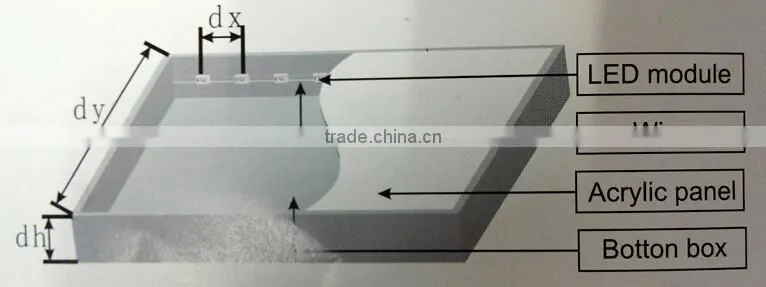

2. Modules Positioning (Vertical and Horizontal)
Item Code |
Light box thickness dh (mm) |
Module horizontal distance dx (mm) |
Module vertical distance dy mm |
Modules average in 1m2 (pcs/m²) |
Surface illumination (lux) |
ML273F |
250 | 110 |
1200 |
6 |
837 |
Remarks:1.The panel is 3mm acrylic board with transmittance 56% | |||||
Packaging
Anti-static package & standard export carton box 1000pcs /carto.
Product Applications
For solid lighting character LED signs,LED lighting box,scenery designs and decor,etc
Product Certification
Factory view
Payment Term:
1. Payment: 30% deposits before production, 70% balance to be paid before delivering.
2. Sample can be delivered in 5-7 days, order 10-15 days.
3. Discounts are offered based on order quantities.
4. T/T or irrevocable L/C at sight; accept Western Union, Paypal payment.
Shipping method and shipping time:
1. Express (DHL, UPS, FEDEX, TNT): around 5-7 working days
2. Transport by air: around 5-8 working days
3. Ocean shipping: around 1-2 month
Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 12 hours
2. Own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. Offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. Experienced R&D engineers and we have strong ability to do ODM projects.
Products series:

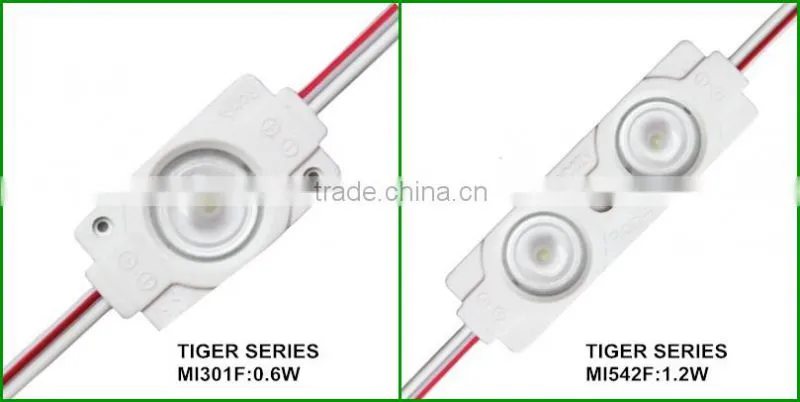

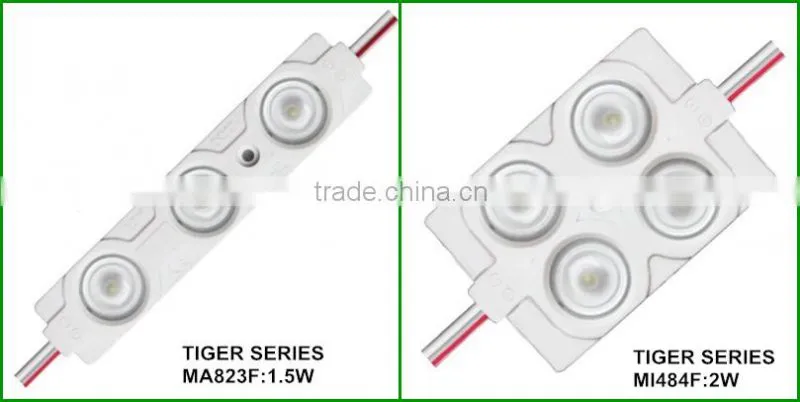

Tiger series

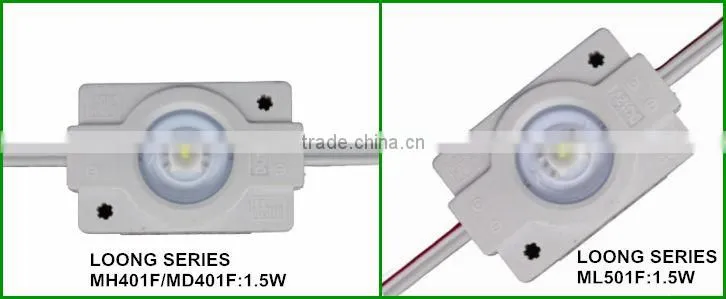

Loong series

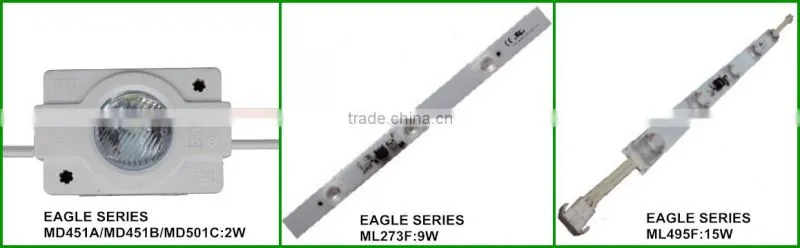

Eagle series
More information,please feel free to contact us or send e-mail to info3 at .
