Specifications
1) 48,108 led SMD28352) alumunium enclusure and acrylic
3) constant current driver
4) beam angle 110 degree
5) CE RoHS
Product Characteristics:
1. Adopted with super bright 108 pcs of SMD2835 LED.
2. Constant Current Driving.
3. working voltage with 40W.
4. panel size L*W*H with 596*596*10.
5. working life with 35000-50000hrs.
Product Demention:
Product Parameters: (Room temperature =25°C)
Test Item |
Test Condition |
Symbol |
Parameters |
Unit |
||
Min. |
Typical |
Max |
||||
Color Temperature |
AC220V/50Hz |
CCT |
3000 |
4000 |
6000 |
K |
CRI |
AC220V/50Hz |
CRI |
70 |
80 |
85 |
Ra |
Luminous Flux |
AC220V/50Hz |
Φ |
3050 |
3150 |
3250 |
lm |
Light Efficiency |
AC220V/50Hz |
LPW |
76 |
78 |
81 |
lm/W |
Visual Angle |
AC220V/50Hz |
Wd |
100 |
110 |
120 |
Deg |
Light Attenuation Graph:

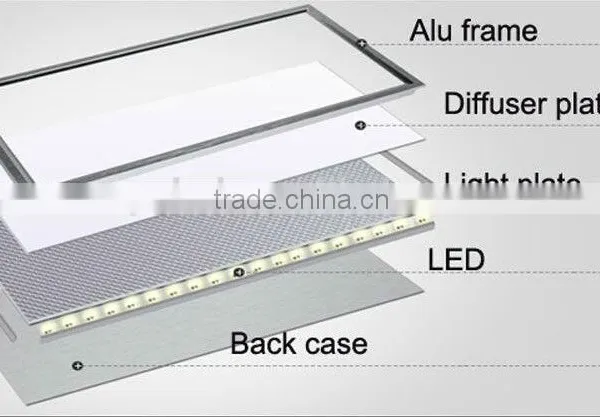

Typical Features:
1.Surface design with the Anti-glare,appearance and structure are patented.
2.Frame material with high purity aluminum, better heat dissipation.
3.High quality and transmittance PC diffuser plate insuring high Light Efficiency.
4.Wide Input voltage,no strobe and start response without delay.
5.Isolated power and cover Separation type designing resulting good security and reliability.
6.More than5 years life span if working 10 hours per day.

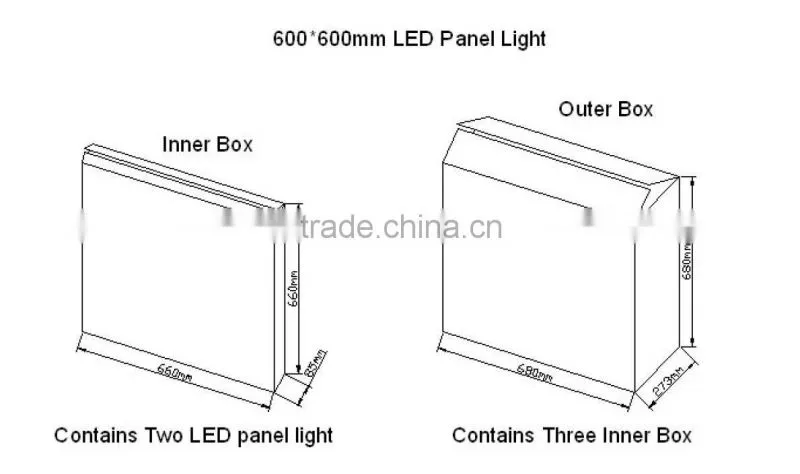

Packaging:
Anti-static bag & standard export carton box:

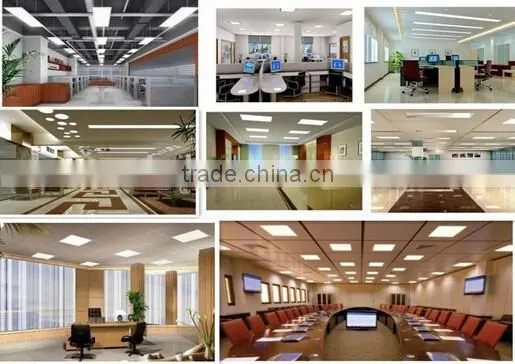

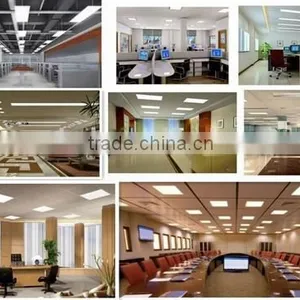

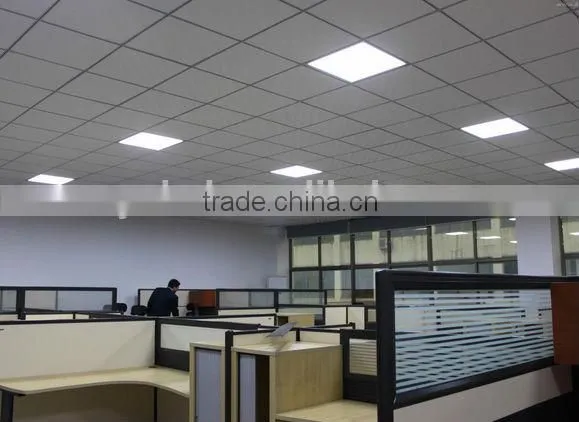

Product Applications:
Applications: the product can be applied in factory, office, entainment, bank, hospital, supermarket, metro, school, shop and other commercial energy saving place.

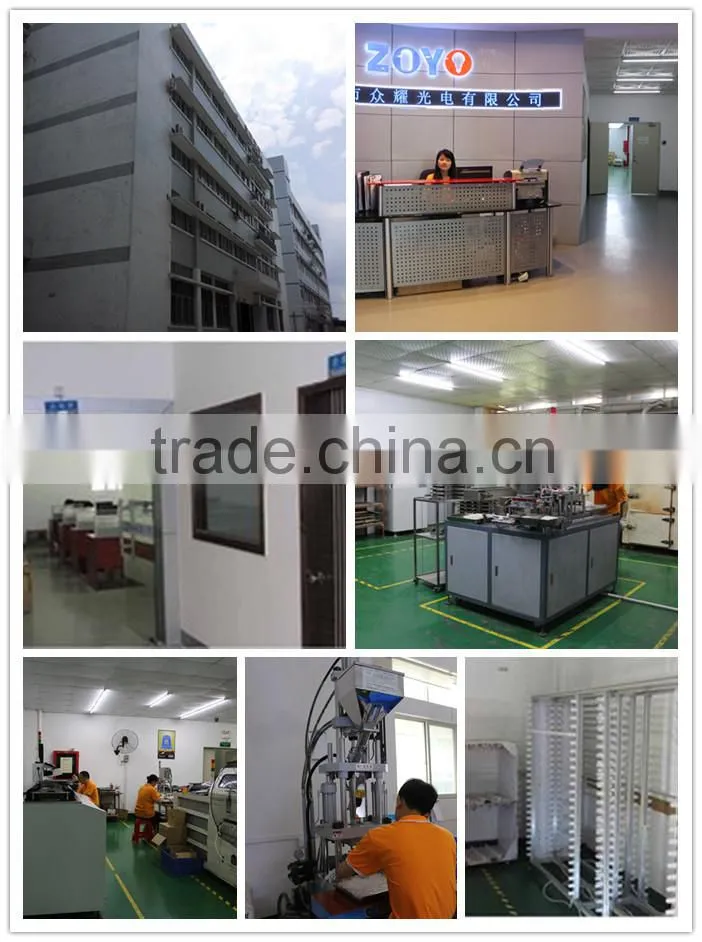

Factory View:
Our factory set up in 2006, director of R&D Dept. has nearly 15years experience in LED module design;
We focus on injection LED module, flexible strip,led panel light, tube light,down light etc.
Payment Terms:
1. Payment: 30% deposits before production, 70% balance to be paid before shipping.
2. Sample can be provided on condition client bear the freight charge.
3. Discounts are offered based on high volume order qty.
4. T/T at sight; accept Western Union, PayPal payment.
Our Services:
1. For all your inquires of us or our products, we will reply you in details within 12 hours.
2. Own well-trained and professional sales & after- sale services who can speak fluent English language.
3. Offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. Experienced R&D engineers and we have strong ability to do ODM projects.
