Product Name

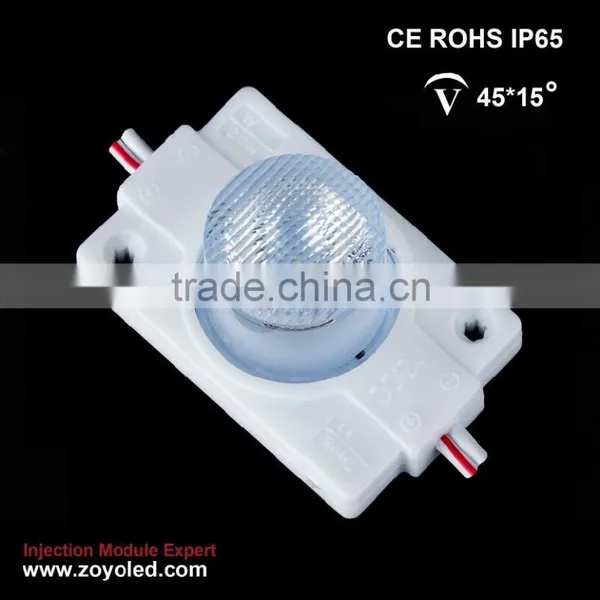

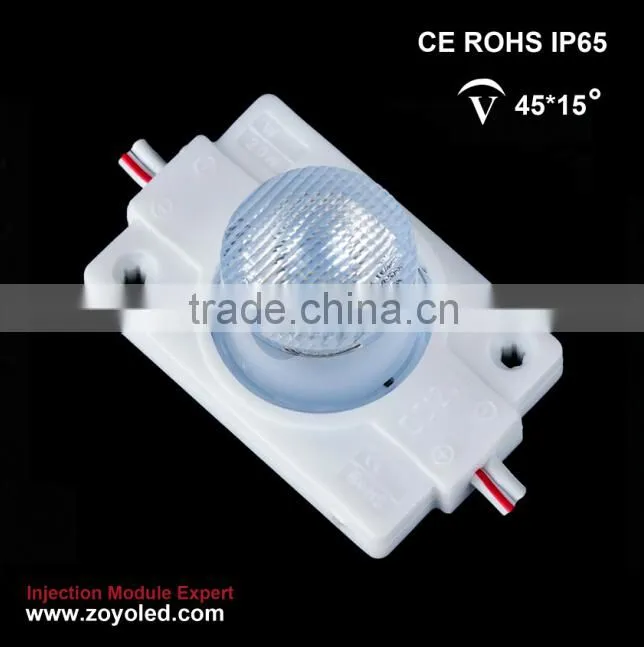

Side Emitting 1pcs*SMD3030 DC12V Constant Current IP65 LED Injection Module 1.2W
with PMMA optic lens-Eagle series
Product Advantage
1. Use high brightness high power SMD3030 as light source
2. Al substrate for LED components with well heat transfer
3. 45*15 degree wide Beam Angle
4. One-time Injection molding with own patent
5. Best sealed, waterproof IP65; 3-year Warranty
6. CE RoHS certified
Product Parameter
Parameters (Room temperature =25℃) | |||||||
Items |
Parameter |
Unit |
|||||
LED type |
SMD3030 |
|
|||||
LED Qty |
1 |
PCS |
|||||
Concatenation |
20 |
PCS |
|||||
Dimension |
40*28*16 |
mm |
|||||
Power |
2.0±10% |
W |
|||||
Input V. |
DC12 |
V |
|||||
Input C. |
0.1 |
A |
|||||
Surface Temp. |
< 40 |
℃ |
|||||
Working Temp. |
-20 ~ +45 |
℃ |
|||||
Storage Temp. |
-30 ~ +60 |
℃ |
|||||
Protect Level |
IP65 |
- |
|||||
Optical and Electrical Parameters (Room temperature =25℃) | |||||||
Test Items |
Testing Condition |
Symbol |
Parameters |
Unit |
|||
|
|
|
Min |
Typical |
Max |
|
|
Color Temperature |
DC12V |
CCT |
5700 |
6000 |
6300 |
K |
|
Ra |
DC12V |
CRI |
|
80 |
|
-- |
|
Luminous Flux |
DC12V |
Φ |
- |
113 |
- |
lm |
|
Light Efficiency |
DC12V |
LPW |
- |
95 |
- |
lm/W |
|
Visual Angle |
DC12V |
Wd |
-- |
45*15 |
-- |
Deg |
|
Product Sketch

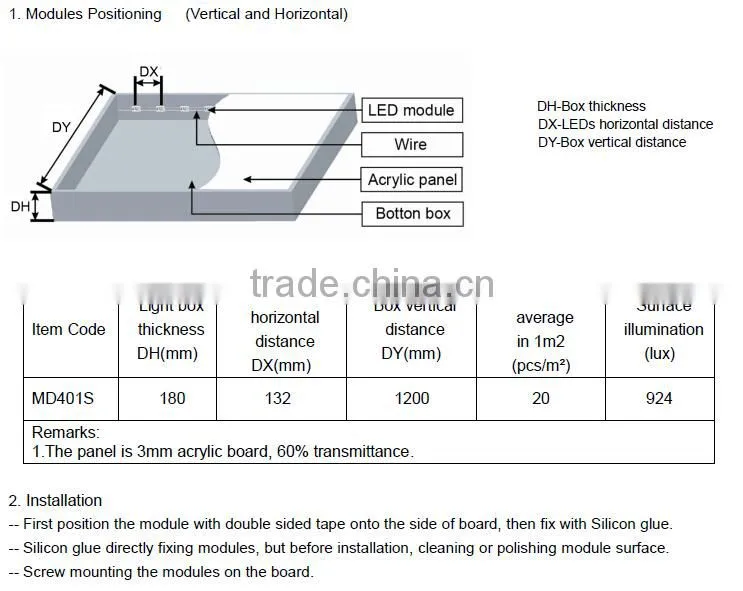

Product Instructions
Light Attenuation Graph
Light Distribution Curve:
Product Package
Product Application
Light boxes, Logo lighting, Advertising Signs, Back light source, Channel letters, etc.
Product Showcase
Factory View
Product Shipping
Our Exhibition
