Help CenterPvc Abs Injection Led Module in Shenzhen China Led Module for Channel Letter
Related Products
-
Epistar Best Quality Led Advertising Module ce RohsUS$ 0.21 - 0.36MOQ: 100 Pieces -
160 Degree Lighting Angle Led Lens Module Led Sign ModuleUS$ 0.21 - 0.36MOQ: 100 Pieces
-
CREEled Backlight Module Lamp 160 Degree Led Injection ModuleUS$ 0.95 - 1.45MOQ: 20 Pieces
-
High Power Mid-power Led Injection Module With Lens Samsung Osram LedUS$ 0.21 - 0.56MOQ: 20 Pieces
-
Smd2835/smd5050/smd3030 Led Module Creeled Module Samsung Led Injection ModuleUS$ 0.21 - 0.56MOQ: 20 Pieces
Product Name

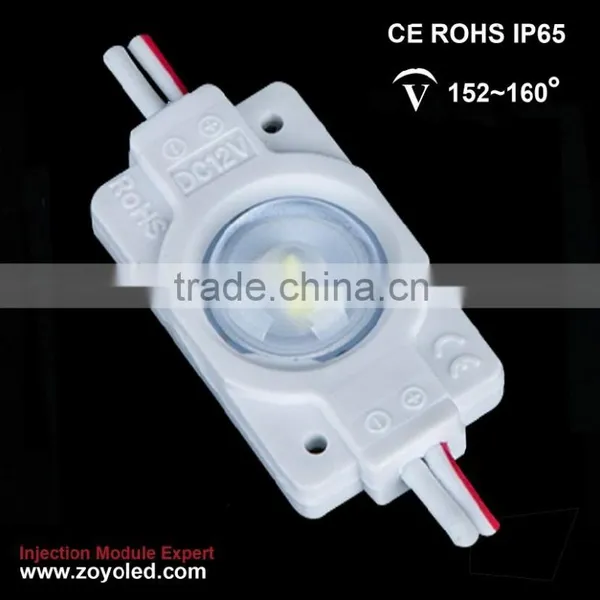

1pcs SMD2835 LED injection Module with lens for signage 0.6W DC12V led advertising module
Product Advantage
1. Epistar LED, 3-Year Warranty
2. Constant current driving mode
3. Wide Beam Angle 160 degree
4. PMMA optic lens
5. High lumen & high power
6. Patented unique design
7. OEM/ODM available
8. CE & RoHS certified
Product Parameter
Parameters (Room temperature =25℃) | |||||||
Items |
Parameter |
Unit |
|||||
LED Type |
2835 |
|
|||||
LED Quantity |
1 |
PCS |
|||||
Concatenation |
20 |
PCS |
|||||
Dimension |
30*18*7.2 |
mm |
|||||
Power |
0.6±10% |
W |
|||||
Modules’ Centre Dis. |
122 |
mm |
|||||
Input V. |
DC12V |
V |
|||||
Input C. |
0.05 |
A |
|||||
Drive Mode |
Constant Current |
|
|||||
Surface Temp. |
< 40 |
℃ |
|||||
Working Temp. |
-20 ~ +45 |
℃ |
|||||
Storage Temp. |
-30 ~ +60 |
℃ |
|||||
Protect Level |
IP65 |
- |
|||||
Optical and Electrical Parameters (Room temperature =25℃) | |||||||
Test Item |
Test Condition |
Symbol |
Parameters |
Unit |
|||
Min. |
Typical |
Max. |
|||||
Color Temperature |
DC12V |
CCT |
12000 |
15000 |
18000 |
K |
|
CRI |
DC12V |
CRI |
70 |
80 |
85 |
Ra |
|
Luminous Flux |
DC12V |
Φ |
41 |
45 |
49 |
lm |
|
Light Efficiency |
DC12V |
LPW |
68 |
75 |
82 |
lm/W |
|
Visual Angle |
DC12V |
Wd |
147 |
152 |
157- |
Deg |
|
Product Sketch
Light Attenuation Graph
Light Distribution Curve:
Product Package

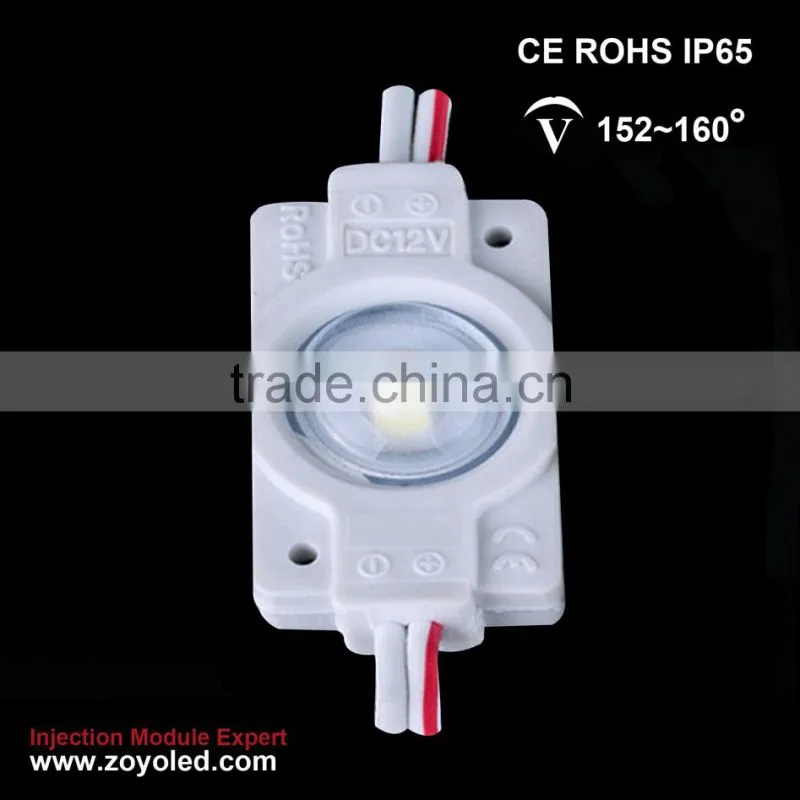

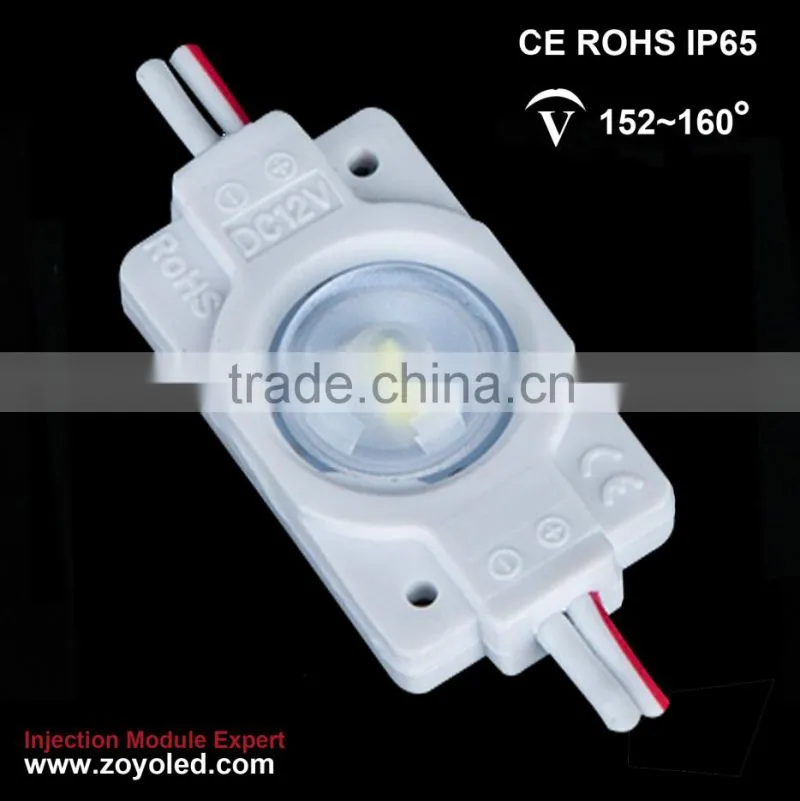

Product Showcase

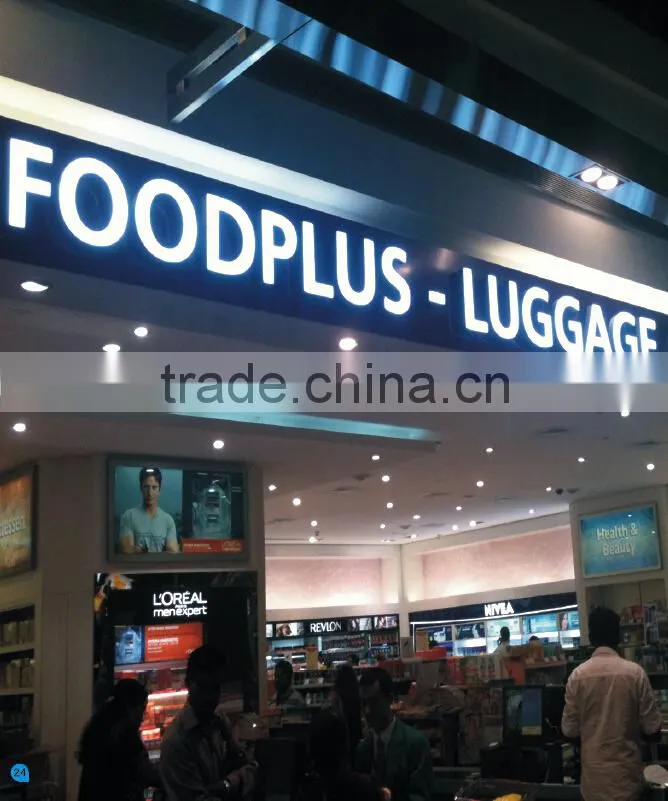

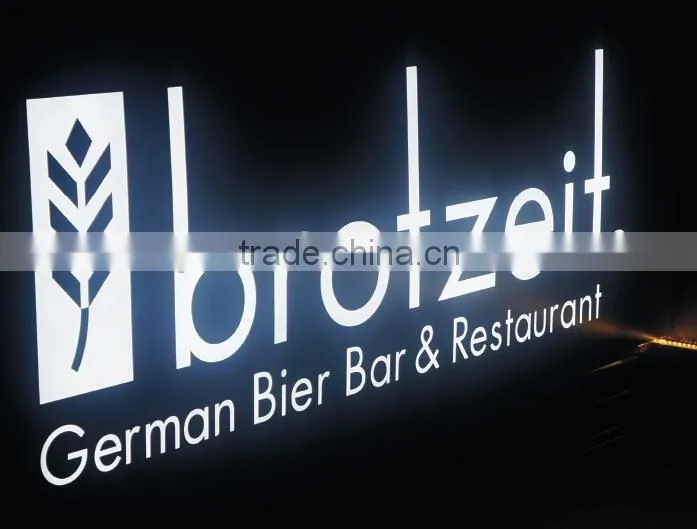

Product Application
Why choose ZOYO LED?
1> Factory direct pricing
2> Factory customer support and service
3> In-house design and development
4> Experienced engineering
5> Quality assurance
6> Cost control due to vertical integration
7> In-house control of production
8> On time delivery control
Our Service
1. All your inquires will be replied within 12 hours
2. Well-trained and passional sales consultant who can speak fluent English
3. Offer OEM & ODM services. Can print your logo on product, can customize the retail box packing and other things.
4. Experienced R&D engineers with strong ability to do ODM projects.
More information, please feel free to contact us or send e-mail to info4(at). FREE samples are waiting for you. ^_^
Thanks & Best regards,
Jacey Wu
Sales Manager
Mobile: +86-15919423655
