High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module

High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module thumbnail-1
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module thumbnail-2
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module thumbnail-3
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module thumbnail-4
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module thumbnail-5
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module thumbnail-6
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module photo-1
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module photo-2
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module photo-3
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module photo-4
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module photo-5
High Power Led Module Sign P10 Led Module Rgb Injection Led Module 5050 Samsung Led Module photo-6
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
Loong series-MD451F
Chip Material:
InGaN
Emitting Color:
Other, warm white/cold white
Contact Supplier Request Quote Chat Now
Shenzhen ZOYO Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port/HK Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number Loong series-MD451F
Chip Material InGaN
Emitting Color Other, warm white/cold white
Luminous Flux(lm) 160
Power Other, 2W
Color Rendering Index(Ra) 83
Color Temperature 3000k/6000k
Operating Temperature(℃) -20, +45
Storage Temperature(℃) -30, +60
Place of Origin Guangdong, China
Brand Name ZOYO
Certification CE

High power led module sign p10 led module rgb injection led module 5050 samsung led module



Product Advantage



1. Epistar LED, 5 Year Warranty

2. Constant current driving mode

3. Wide Beam Angle 165 degree

4. PMMA optic lens

5. High lumen & high power

6. Patented unique design

7. OEM/ODM available

8. CE & RoHS certified

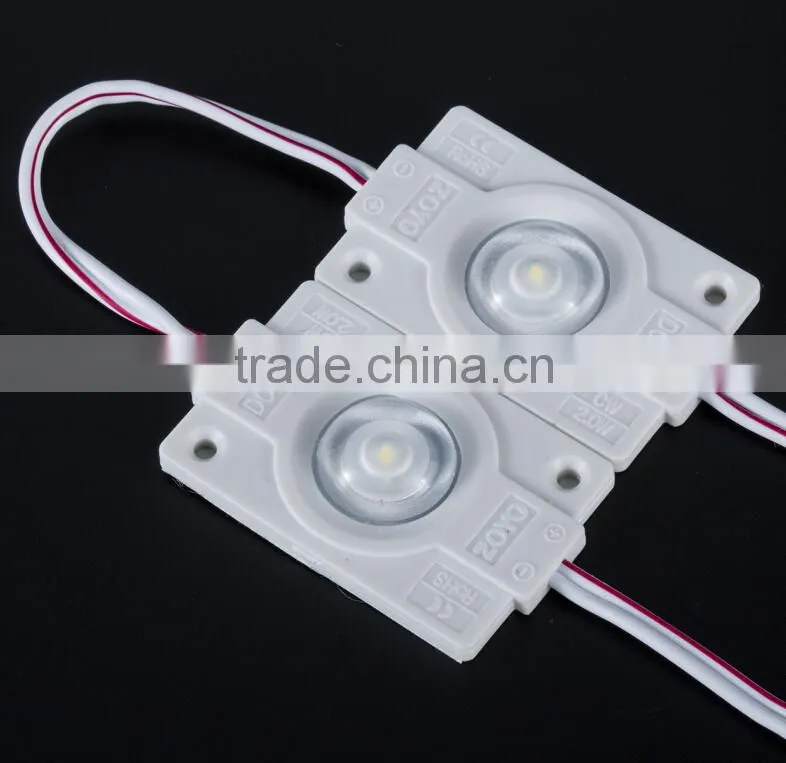

Product Sketch

High power led module sign p10 led module rgb injection led module 5050 samsung led module



High power led module sign p10 led module rgb injection led module 5050 samsung led module





High power led module sign p10 led module rgb injection led module 5050 samsung led module


Product Parameter

 Parameters                          (Room temperature =25℃)

Items

Parameter

Unit

LED Type

3030



LED Quantity

1

PCS

Concatenation

20

PCS

Dimension

45*30*7.6

mm

Power

2 ±10%

W

Modules’ Centre Dis.

187

mm

Input V.

DC12V

V

Input C.

0.167

A

Drive Mode

Constant Current



Surface Temp.

< 45

℃

Working Temp.

-20 ~ +45

℃

Storage Temp.

-30 ~ +60

℃

Protect Level

IP65

-

 Optical and Electrical Parameters               (Room temperature =25℃)

Test Item

 Test Condition

Symbol

Parameters

Unit

Min.

Typical

Max.

Color Temperature

DC12V

CCT

5800

6500

7300

K

CRI

DC12V

CRI

70

75

80

Ra

Luminous Flux

DC12V

Φ

145

150

155

lm

Light Efficiency

DC12V

LPW

73

75

78

lm/W

Visual Angle

DC12V

Wd

155

160

165

Deg





High power led module sign p10 led module rgb injection led module 5050 samsung led module







High power led module sign p10 led module rgb injection led module 5050 samsung led module




Light Attenuation Graph

High power led module sign p10 led module rgb injection led module 5050 samsung led module



Light Distribution Curve:



 High power led module sign p10 led module rgb injection led module 5050 samsung led module



High power led module sign p10 led module rgb injection led module 5050 samsung led module





Instructions



1. Modules Positioning   (Vertical and Horizontal)



Item     Code

Light box thickness

DH(mm)

Module horizontal distance

DX(mm)

Module vertical

distance

DY(mm)

Module Qty.

in 1m2

(pcs/m²)

Surface illumination

(lux)

MD451F

150

170

170

35

780

Remarks:

1.The box panel is 3mm height acrylic board, 60% transmittance.





















2.Installation



-- Clean the fixation board and stabilize it.



-- Position the module with double sided tape and stick on the back of board.



-- Use silicon glue to fix modules (if needed).



-- Screw mounting the modules on the fixation board.





High power led module sign p10 led module rgb injection led module 5050 samsung led module

High power led module sign p10 led module rgb injection led module 5050 samsung led module







High power led module sign p10 led module rgb injection led module 5050 samsung led module



Product Application



High power led module sign p10 led module rgb injection led module 5050 samsung led module



High power led module sign p10 led module rgb injection led module 5050 samsung led module





Packaging & Shipping

Product Package





Shipping

1.FedEx/DHL/UPS/Russian express/ARAMEX for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3.Customers specifying freight forwarders or negotiable shipping methods;

4.Delivery Time: 3-5 days for samples; 10-15 days for batch goods.



Payment terms:

1. Payment: T/T, Western Union, PayPal,irrevocable L/C at sight; 30% deposits; 70% balance before delivery

2.MOQ:20 pcs

3.Warranty: 5 years

4.Package informations:1000pcs per carton/The volume of the box is 530mmx330mmx200mm.

Our Services

Why choose us?

1.We are Alibaba Assessed Gold Supplier;

2.We are a factory professional manufacturing Injection molding LED modules,Best production

capability,best quality control,Best service.

3.We have our own R&D engineers team,best product innovation capabilities;

4.100% QC inspection Before Shippment;

5.CE/ROHS listed,factory direct sales,competitive price.

Company Information

 Company View

High power led module sign p10 led module rgb injection led module 5050 samsung led moduleHigh power led module sign p10 led module rgb injection led module 5050 samsung led module

  High power led module sign p10 led module rgb injection led module 5050 samsung led module



Our certifications:CE/ROHS



High power led module sign p10 led module rgb injection led module 5050 samsung led module
