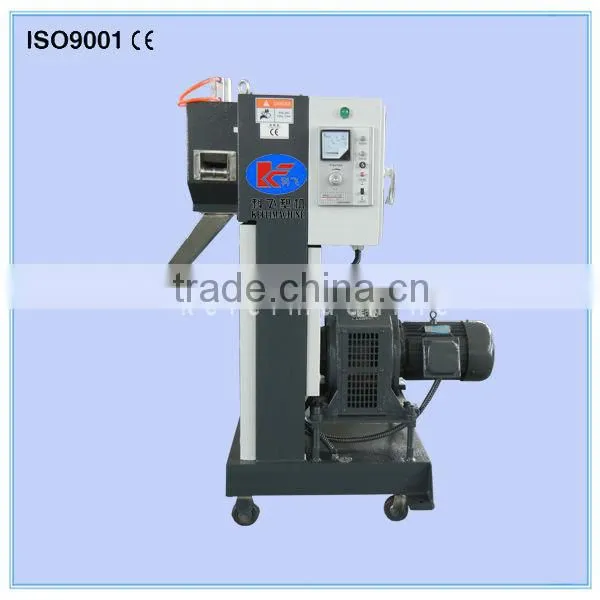

Help CenterRecycle Plastic Pellet Making Production Line
Related Products
-
PP PET PVC ABS Plastic Granule Process LineUS$ 1,000 - 2,000MOQ: 1 Set -
PP PET PVC ABS Plastic Pellet Process LineUS$ 1,000 - 2,000MOQ: 1 Set
-
Pvc pp ABS PET PE Plastic Recycling MachineUS$ 1,000 - 2,000MOQ: 1 Set
-
Plastic Recycling MachineUS$ 1,000 - 2,000MOQ: 1 Set
-
KEFEI PP PE PVC PC PET ABS PS PPS Cantilever Type Plastic Pelletizing Production LineUS$ 1,300 - 2,000MOQ: 1 Set
INTRODUCTION:
We are the special plastic pellet cutting machine manufacturer, was authenticated by Alibaba company, enjoying more than 10 years of honesty, cooperating with thousands of customers all the time, ensuring zero risk for your order, and the long term after-sale service for the plastic palletizing machine you buy from our company.
CHARACTER:
1,Using tungsten-carbide alloy from special alloy factory, ensuring the enduring time of cutting knife.
2,Adopting wear resistant and high temperature resistant modified rubber, is nearly more than two times the service cycle of normal rubber roller.
3.,All plastic pelletizing machine applies the imported bearings to make sure the stability, precision and low voice.
4,
3mm thickness of ss304 plate would be applied for panel of normal model, the bottom and feeding inlet which would easily erode is made of aluminium alloy.
5,The contacting part with raw material inside the cutting bin is completely made of ss304, also for cutting blade.
6,The cutting machine is all made of ss304, including cutting blade and panel.
7,Referring to the Germany cutting machine, the body of machine is much bigger, the stability and heat dispersion is much better, and there is quake proof rubber blanket installed under the cutting bin, the noise is reduced largely
Model |
Motor power (kw) |
Speed change |
Strip cutting no.
|
Max. traction speed (m/min) |
Granule size(mm) |
Max. production capacity (kg/h) |
Dia. X L of Rotating blade (mm) |
Blade number |
Dia. X L of Rubber roll (mm) |
Dimension LxWxH (mm) |
LQ-25 |
0.75 |
Electromagnetic slip or VFD |
<=3 |
72 |
Φ3x3 |
<=40 |
Φ90x50 |
14 |
Φ60x50 |
550x500x1200 |
LQ-6 |
1.1/1.5/2/2 |
|
<=8 |
72 |
Φ3x3 |
<=60 |
Φ120x96 |
14 |
Φ90x70 |
600x500x1300 |
|
LQ-300 Gantry |
3~4 |
|
<=18 |
96 |
Φ3x3 |
<=300 |
Φ160x150 |
24 |
Φ100x150 |
950x850x1600 |
|
LQ-300 Cantilever |
3~4 |
|
<=14 |
96 |
Φ3x3 |
<=300 |
Φ200x100 |
32 |
Φ120x100 |
1270x750x1510 |
|
LQ-500 Gantry |
5.5~7.5 |
|
<=30 |
96 |
Φ3x3 |
<=600 |
Φ200x200 |
32 |
Φ100x200 |
1000x950x1700 |
|
LQ-500 Cantilever |
5.5~7.5 |
|
<=30 |
96 |
Φ3x3 |
<=500 |
Φ200x200 |
32 |
Φ120x200 |
1380x800x1700 |
