High power led module

Specifications

High power led module

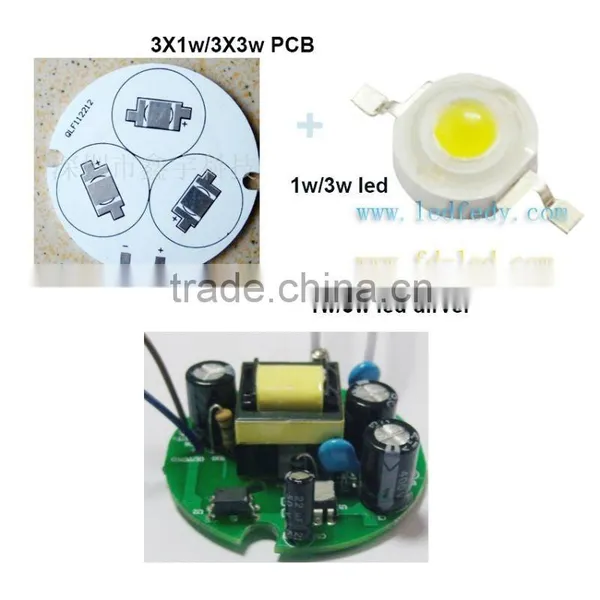

1. PCB+ led + Constant current driver
2, ROHS ,Class A 50000hours
3, Epistar/Brigelux chip
4, 2yrear

High power led module

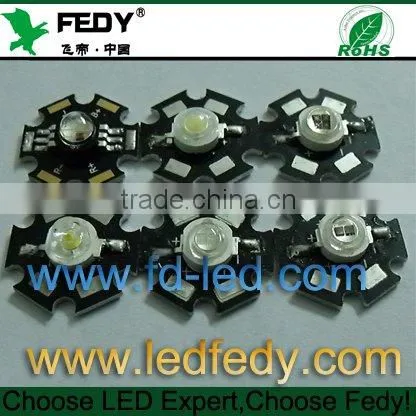

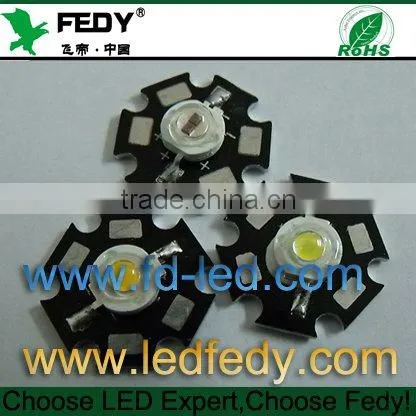

*  CUSTOMIZED MCPCB is available. Please provide us detailed spec of the MCPCB, we will make the MCPCB for you.
*  Be aware that the temperature must be controlled in 70°C, and the lower the temperature, the longer the life of LED.
*  MCPCB requires additional heat sink to dispatch heat into the air. For further information, please refer to our Thermally Conductive Tape & AL Heat Sink

 Lens : 8/ 12/ 25/ 40/ 60 deg.

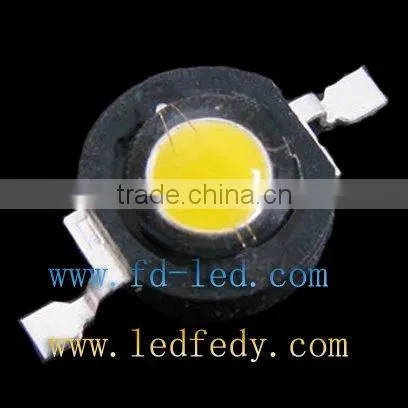

Part No.	FD-1W120-N1	Color	White
Luminous Intensity	100-120lm	Viewing Angle	120degree
Forward Current	350mA	Forward Voltage	3.0-3.4V
Color Termperature	2800-10000K	Lens Color	Transparent PC
Warranty  :	1 Year
Packing  :	ESD box
Leadtime :	3days for sample, 5days for order
Payment  :	TT, Western union



Professional factory of 1w and 3w high power led.

street light led100-120lm, 140degree. best solution for led street light application.

Best quality with 1 year warrant .

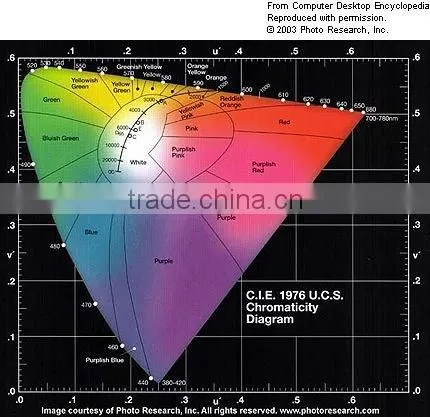

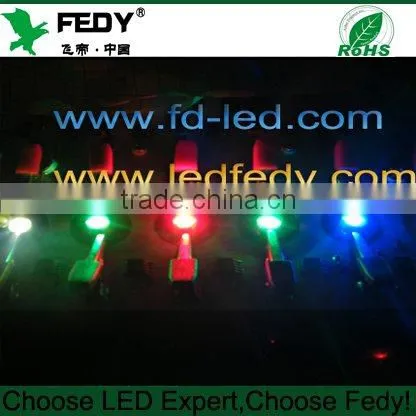

Item	Color	Wavelength/ Chromaticity	Intensity	Electrical data		Angle
				Voltage	Current
1W	Red	620-630nm	30-40 lm	2.2-2.6V	350mA	60,90,120,140°
	Yellow	585-595nm	30-40 lm	2.2-2.6V
	Amber	600-607nm	30-40 lm	2.2-2.6V
	Green	515-525nm	60-70 lm	3.2-3.8V
	Blue	460-470nm	10-20 lm	3.2-3.6V
	White	2500-15000k	80-90 lm 100-120lm	3.2-3.6V





Application:
1. Indoor and outdoor commercial lighting
2. Architectural Lighting
3. General lighting
4. Automotive lights
5. Mood Lighting, LED module
6. Traffic Light
7. LCD TV / monitor backlights
8. LED display
9. Reading light, LED torch
10. Craft flashlights, headlights









1.  We are professional factory of Power led, led diode, led strips . With experience of 11 years.  Class A quality with 1-2 years warrany for all items. Orignal Epistar/Bridgelux chips with 100% Class A. All leds 100% QA passed before shipped.  Fually automatic production machine and quality checking machines insures great quality of goods , and fast delivery .
