Help Center5w Blue Led Diode
Related Products
Specifications
5w blue led diode1. Lifespan : 50000hours
2, With ROHS , Class A
3, Epistar/Bridge lux Chip
4. 90-100lm/w . 1 year warr

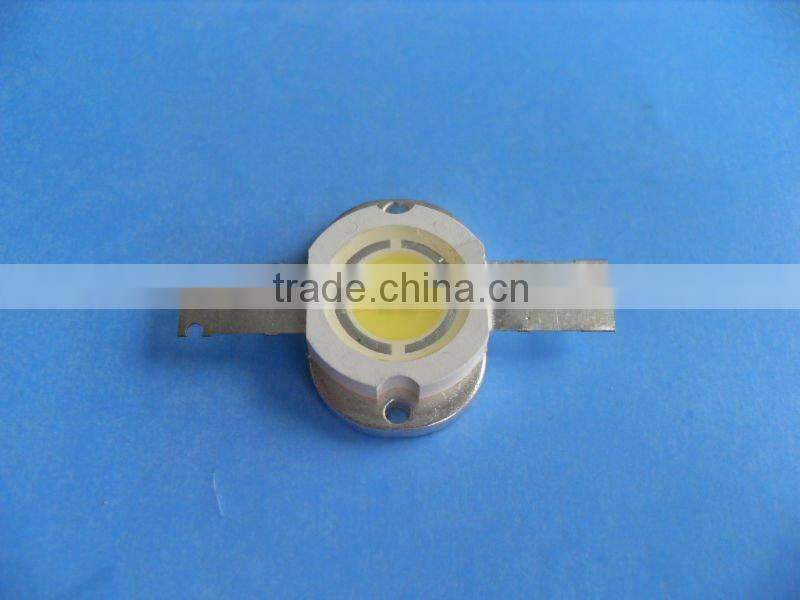

5w blue led diode
Part No. |
FD-5W500 |
Color |
White |
Luminous Intensity |
400-450lm |
Viewing Angle |
160degree |
Forward Current |
700mA |
Forward Voltage |
7.8-8.0V |
Color Termperature |
2800-10000K |
Lens Color |
Transparent PC |
|
|
|
|
Warranty : |
1 Year |
|
|
Packing : |
ESD box |
|
|
Leadtime : |
3days for sample, 5days for order |
|
|
Payment : |
TT, Western union |
|
|
high power led 5W,
white 400-450LM,
Chromaticity: 2700-10000K
ROHS 50000HRS

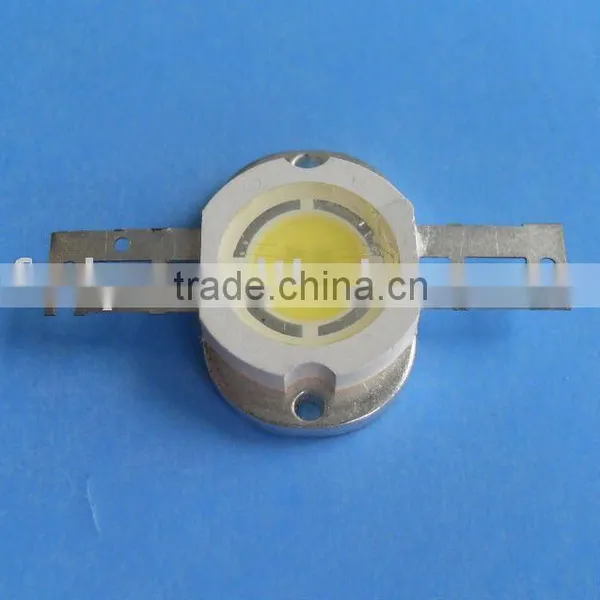

High power LED, 5W, Emitter
1)Item: YH-ED10-W
2) Power: 5W
3)Forward Voltage: 9.5-10V
4)Forward Current: 700MA
5)Emitted color: White,Warm White.
6)Lumen: 400-450 LM for White Or Warm White
7)Emitting angle of peak: 160Deg
8)life Span: 50, 000HRS
9) With CE and ROHS approved
-Light color uniform and pure simple and easy to use
Chips design:
A 4 chips series connections : Forward current:350mA
Forward voltage:13 to 14V
Reverse current:10μA
B 2 series connection and 2 parallel connection Forward cureent:700mA
Forward voltage:6.4 to 7V
Reverse current:10μA
Applications
-Home lighting
-Wall wash lights
-Down light
-Lighting
-Landscape lights
-Suitable for a variety of lamps
Advantages
-5W high power
-High luminous flux
-Low decay
-Silver support and gold solder
-Light color uniform and pure
-Simple and easy to use
-Suitable for a variety of small size lamps
Attentions
Storage conditions
Before opening the package
1.The LEDs can be preserved for 1 year in condition of temperature no more than 30°C and humidity no more than 70%RH. Recommended for moisture
