Help Center5mm Piranha RGB Led
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FEDY
Model Number:
5mm Piranha RGB led
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
FEDY
Model Number
5mm Piranha RGB led
Piranha Super Flux LED Light
Company Information
Main advantages of FEDY
1. Have our own packaging technology,can control all details,with good quality and high brightness.
2. led with Low lighting attenuation,Conversion factor can reach 99%
3. Good glare control.
4. Special design good for heating output.
5. Long lifespan of up to 80,000 hours
6. We are professional manufacturuer since 2000. Quality Is 100% guaranteed.
7. Leds with TW original Epistar chips amd Bridgelux chips from USA . Class A quality
8. With ROHS. With 3years warranty
9. Fast delivery .
10. Experienced worker and fully equiped with automatic making machine and testing machines
11. Experience technical staff with more than 10 years experience in led
12. Quality control: led 100% tested before shipping
13. Top quality raw material, All materials are strictly tested before usage.
14. Guarantee/warranty: 3 years
15. Excellent packaging : 1000pcs/ESD bag
Product Description

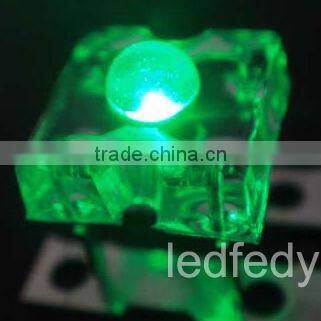

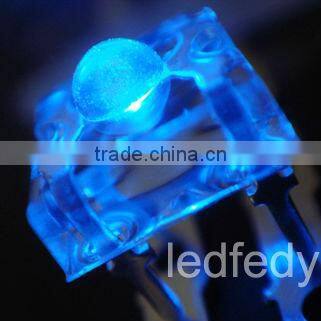

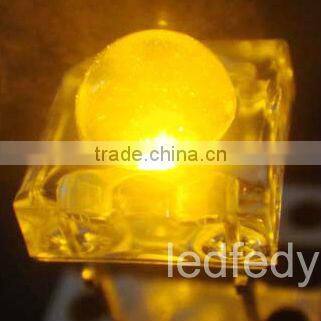

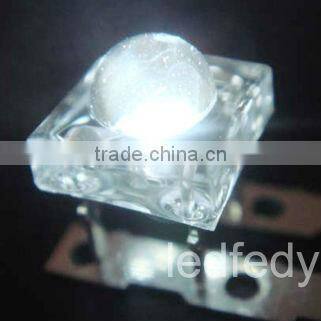

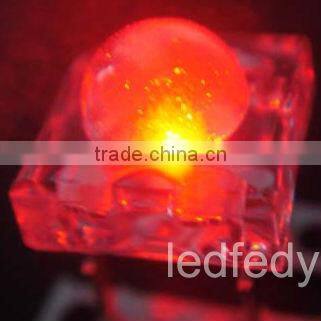

5mm Piranha RGB led
| 3mm super flux led | |||||
| Single chips | |||||
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-113TW-1 | 2500-3000mcd | 90deg | From 2500 to 20000K | 20-30mA | 3.0-3.4V |
| FD-113TW-2 | 3000-5000mcd | 90deg | 20-30mA | 3.0-3.4V | |
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-113TR-1 | 800-1200mcd | 90deg | 620-625nm | 20-30mA | 1.9-2.4V |
| FD-113TR-2 | 1500-2500mcd | 90deg | 620-625nm | 20-30mA | 1.9-2.4V |
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-113TY-1 | 700-900mcd | 90deg | 588-595nm | 20-30mA | 1.9-2.4V |
| FD-113TY-2 | 1000-1500mcd | 90deg | 588-595nm | 20-30mA | 1.9-2.4V |
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-113TG-1 | 3500-4500mcd | 90deg | 520-525nm | 20-30mA | 3.0-3.4V |
| FD-113TG-2 | 5000-7000mcd | 90deg | 520-525nm | 20-30mA | 3.0-3.4V |
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-113TB-1 | 500-700mcd | 90deg | 460-470nm | 20-30mA | 3.0-3.4V |
| FD-113TB-2 | 1000-1200mcd | 90deg | 460-470nm | 20-30mA | 3.0-3.4V |
| 5mm super flux led | |||||
| Single chips | |||||
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-115TW-1 | 3000-4000mcd | 90deg | From 2500 to 20000K | 20-30mA | 3.0-3.4V |
| FD-115TW-2 | 4000-6000mcd | 90deg | 20-30mA | 3.0-3.4V | |
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-115TR-1 | 1000-1500mcd | 90deg | 620-625nm | 20-30mA | 1.9-2.4V |
| FD-115TR-2 | 2000-3000mcd | 90deg | 620-625nm | 20-30mA | 1.9-2.4V |
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-115TY-1 | 1000-1200mcd | 90deg | 588-595nm | 20-30mA | 1.9-2.4V |
| FD-115TY-2 | 1500-2000mcd | 90deg | 588-595nm | 20-30mA | 1.9-2.4V |
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-115TG-1 | 4000-5000mcd | 90deg | 520-525nm | 20-30mA | 3.0-3.4V |
| FD-115TG-2 | 6000-8000mcd | 90deg | 520-525nm | 20-30mA | 3.0-3.4V |
| Part No. | Intensity | Angle (Degree) | CCT available/ Wavelength |
Current(mA) | Voltage( V) |
| FD-115TB-1 | 700-1000mcd | 90deg | 460-470nm | 20-30mA | 3.0-3.4V |
| FD-115TB-2 | 1200-1500mcd | 90deg | 460-470nm | 20-30mA | 3.0-3.4V |
| 5mm super flux with multi-chips | |||||
| Double chips | |||||
| Part No. | Color | Angle (Degree) | CCT & Wavelength |
Current(mA) | Voltage( V) |
| FD-115TW2 | White | 90deg | From 2500 to 20000K | 40mA | 3.0-3.4V |
| FD-115TR2 | Red | 90deg | 620-625nm | 40mA | 1.9-2.4V |
| FD-115TY2 | Yellow | 90deg | 588-595nm | 40mA | 1.9-2.4V |
| FD-115TG2 | Green | 90deg | 520-525nm | 40mA | 3.0-3.4V |
| FD-115TB2 | Blue | 90deg | 460-470nm | 40mA | 3.0-3.4V |
| 4chips | |||||
| Part No. | Color | Angle (Degree) | CCT & Wavelength |
Current(mA) | Voltage( V) |
| FD-115TW4 | White | 90deg | From 2500 to 20000K | 80mA | 3.0-3.4V |
| FD-115TR4 | Red | 90deg | 620-625nm | 80mA | 1.9-2.4V |
| FD-115TY4 | Yellow | 90deg | 588-595nm | 80mA | 1.9-2.4V |
| FD-115TG4 | Green | 90deg | 520-525nm | 80mA | 3.0-3.4V |
| FD-115TB4 | Blue | 90deg | 460-470nm | 80mA | 3.0-3.4V |
| 0.5watt | |||||
| Part No. | Color | Angle (Degree) | CCT & Wavelength |
Current(mA) | Voltage( V) |
| FD-115TW5 | White | 90deg | From 2500 to 20000K | 150mA | 3.0-3.4V |
| FD-115TR5 | Red | 90deg | 620-625nm | 150mA | 1.9-2.4V |
| FD-115TY5 | Yellow | 90deg | 588-595nm | 150mA | 1.9-2.4V |
| FD-115TG5 | Green | 90deg | 520-525nm | 150mA | 3.0-3.4V |
| FD-115TB5 | Blue | 90deg | 460-470nm | 150mA | 3.0-3.4V |
| 5mm round Red color in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TR-1 | 4000-6000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-2 | 6000-8000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-3 | 8000-12000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-4 | 12000-18000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-5 | 18000-20000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-6 | 20000-23000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-7 | 23000-25000 | 15-20 | 620-630 | 1.9-2.4 |
| Viewing angle in 30-35degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TR30-1 | 3000-4000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-2 | 4000-5000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-3 | 5000-8000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-4 | 8000-10000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-5 | 10000-12000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-6 | 12000-18000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-7 | 18000-20000 | 30-35 | 620-630 | 1.9-2.4 |
| Viewing angle in 45degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TR45-1 | 2000-3000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-2 | 3000-4000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-3 | 5000-6000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-4 | 6000-8000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-5 | 8000-10000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-6 | 10000-12000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-7 | 12000-15000 | 45 | 620-630 | 1.9-2.4 |
| Viewing angle in 60degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TR60-1 | 1000-1500 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-2 | 1500-2500 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-3 | 2500-4500 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-4 | 4500-5000 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-5 | 5000-7000 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-6 | 8000-10000 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-7 | 10000-12000 | 60 | 620-630 | 1.9-2.4 |
| Special wavelength | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-52TR-1 | / | / | 630-635 | 1.9-2.4 |
| FD-53TR-1 | / | / | 660 | 1.9-2.4 |
| FD-54TR-1 | / | / | 670 | 1.9-2.4 |
| FD-542TR-1 | / | / | 670-680 | 1.9-2.4 |
| FD-55TR-1 | / | / | 760-770 | 1.9-2.4 |
| 5mm round Yellow color in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TY-1 | 5000-7000 | 15-20 | 588-595 | 1.9-2.4 |
| FD-5TY-2 | 8000-10000 | 15-20 | 588-595 | 1.9-2.4 |
| FD-5TY-3 | 10000-15000 | 15-20 | 588-595 | 1.9-2.4 |
| FD-5TY-4 | 18000-22000 | 15-20 | 588-595 | 1.9-2.4 |
| FD-5TY-5 | 22000-25000 | 15-20 | 588-595 | 1.9-2.4 |
| Viewing angle in 30-35degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TY30-1 | 3000-4000 | 30-35 | 588-595 | 1.9-2.4 |
| FD-5TY30-2 | 5000-8000 | 30-35 | 588-595 | 1.9-2.4 |
| FD-5TY30-3 | 8000-12000 | 30-35 | 588-595 | 1.9-2.4 |
| FD-5TY30-4 | 12000-18000 | 30-35 | 588-595 | 1.9-2.4 |
| FD-5TY30-5 | 18000-20000 | 30-35 | 588-595 | 1.9-2.4 |
| Viewing angle in 45degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TY45-1 | 2000-4000 | 45 | 588-595 | 1.9-2.4 |
| FD-5TY45-2 | 4000-7000 | 45 | 588-595 | 1.9-2.4 |
| FD-5TY45-3 | 7000-10000 | 45 | 588-595 | 1.9-2.4 |
| FD-5TY45-4 | 10000-12000 | 45 | 588-595 | 1.9-2.4 |
| FD-5TY45-5 | 12000-15000 | 45 | 588-595 | 1.9-2.4 |
| Viewing angle in 60degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TY60-1 | 1500-2500 | 60 | 588-595 | 1.9-2.4 |
| FD-5TY60-2 | 3000-5000 | 60 | 588-595 | 1.9-2.4 |
| FD-5TY60-3 | 5000-8000 | 60 | 588-595 | 1.9-2.4 |
| FD-5TY60-4 | 8000-10000 | 60 | 588-595 | 1.9-2.4 |
| FD-5TY60-5 | 10000-12000 | 60 | 588-595 | 1.9-2.4 |
| Special wavelength | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-52TY-1 | / | / | 585-592 | 1.9-2.4 |
| FD-53TY-1 | / | / | 580-586 | 1.9-2.4 |
| FD-54TR-1 | / | / | 570-575 | 1.9-2.4 |
| 5mm round Amber color in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TA-1 | 5000-7000 | 15-20 | 600-610 | 1.9-2.4 |
| FD-5TA-2 | 8000-10000 | 15-20 | 600-610 | 1.9-2.4 |
| FD-5TA-3 | 10000-15000 | 15-20 | 600-610 | 1.9-2.4 |
| FD-5TA-4 | 18000-22000 | 15-20 | 600-610 | 1.9-2.4 |
| FD-5TA-5 | 22000-25000 | 15-20 | 600-610 | 1.9-2.4 |
| Viewing angle in 30-35degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TA30-1 | 3000-4000 | 30-35 | 600-610 | 1.9-2.4 |
| FD-5TA30-2 | 5000-8000 | 30-35 | 600-610 | 1.9-2.4 |
| FD-5TA30-3 | 8000-12000 | 30-35 | 600-610 | 1.9-2.4 |
| FD-5TA30-4 | 12000-18000 | 30-35 | 600-610 | 1.9-2.4 |
| FD-5TA30-5 | 18000-20000 | 30-35 | 600-610 | 1.9-2.4 |
| Viewing angle in 45degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TA45-1 | 2000-4000 | 45 | 600-610 | 1.9-2.4 |
| FD-5TA45-2 | 4000-7000 | 45 | 600-610 | 1.9-2.4 |
| FD-5TA45-3 | 7000-10000 | 45 | 600-610 | 1.9-2.4 |
| FD-5TA45-4 | 10000-12000 | 45 | 600-610 | 1.9-2.4 |
| FD-5TY45-5 | 12000-15000 | 45 | 600-610 | 1.9-2.4 |
| Viewing angle in 60degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TA60-1 | 1500-2500 | 60 | 600-610 | 1.9-2.4 |
| FD-5TA60-2 | 3000-5000 | 60 | 600-610 | 1.9-2.4 |
| FD-5TA60-3 | 5000-8000 | 60 | 600-610 | 1.9-2.4 |
| FD-5TA60-4 | 8000-10000 | 60 | 600-610 | 1.9-2.4 |
| FD-5TA60-5 | 10000-12000 | 60 | 600-610 | 1.9-2.4 |
| 5mm round White color in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TW-1 | 13000-16000 | 15-20 | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) |
3.0-3.4 |
| FD-5TW-2 | 16000-18000 | 15-20 | 3.0-3.4 | |
| FD-5TW-3 | 20000-23000 | 15-20 | 3.0-3.4 | |
| FD-5TW-4 | 25000 | 15-20 | 3.0-3.4 | |
| FD-5TW-5 | 25000mcd ( Perfect light version ) |
15-20 | 3.0-3.4 | |
| Viewing angle in 30-35degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TW30-1 | 10000-12000 | 30-35 | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) |
3.0-3.4 |
| FD-5TW30-2 | 13000-15000 | 30-35 | 3.0-3.4 | |
| FD-5TW30-3 | 15000-16000 | 30-35 | 3.0-3.4 | |
| FD-5TW30-4 | 18000 | 30-35 | 3.0-3.4 | |
| FD-5TW30-5 | 18000mcd ( Perfect light version ) |
30-35 | 3.0-3.4 | |
| Viewing angle in 45degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TW45-1 | 7000-8000 | 45 | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) |
3.0-3.4 |
| FD-5TW45-2 | 9000-10000 | 45 | 3.0-3.4 | |
| FD-5TW45-3 | 10000-12000 | 45 | 3.0-3.4 | |
| FD-5TW45-4 | 12000-15000 | 45 | 3.0-3.4 | |
| FD-5TW45-5 | 15000mcd ( Perfect light version ) |
45 | 3.0-3.4 | |
| Viewing angle in 60 degree | ||||
| Part No. | Intensity at 20mA ( mcd ) |
Emitting Angle ( Degree ) |
Wavelength ( nm ) |
Voltage ( V ) |
| FD-5TW60-1 | 5000-6000 | 60 | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) |
3.0-3.4 |
| FD-5TW60-2 | 7000-8000 | 60 | 3.0-3.4 | |
| FD-5TW60-3 | 9000 | 60 | 3.0-3.4 | |
| FD-5TW60-4 | 12000 | 60 | 3.0-3.4 | |
| FD-5TW60-5 | 12000mcd ( Perfect light version ) |
60 | 3.0-3.4 | |
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2011
Factory Size
1,000-3,000 square meters
Total Employees
201 - 300 People
You May Also Like
-
for WII of the RGB WireNegotiableMOQ: 10 Pieces
-
PORTABLE RECHARGEABLE DYNAMO SOLAR LED TORCH WITH AM/FM NOAA WEATHER ALERT RADIO AND CHARGERUS$ 11.5 - 15.5MOQ: 100 Pieces
-
Rotomolded Plastic Decorative Lighting,by RotomoldingNegotiableMOQ: 100 Pieces
-
2015 Hot New Products Russian Ceiling LightUS$ 20 - 85MOQ: 1 Piece
-
2016 Zhengzhou Plastic IP68 Led Brick Footpath LightsUS$ 1 - 30MOQ: 500 Pieces
-
60lm Chip 0.5W Samsung SMD 2835 LEDUS$ 0.03 - 0.06MOQ: 2000 Pieces
-
Energy-saving Socket t8 to t5US$ 0.102 - 0.125MOQ: 3000 Pieces
-
LED Mini Plush TurtleNegotiableMOQ: 100 Pieces
-
LED Toilet Night Light Bathroom Night LightNegotiableMOQ: 2000 Pieces
-
Remote Control Color Changing LED BallUS$ 10 - 11MOQ: 1000 Pieces
