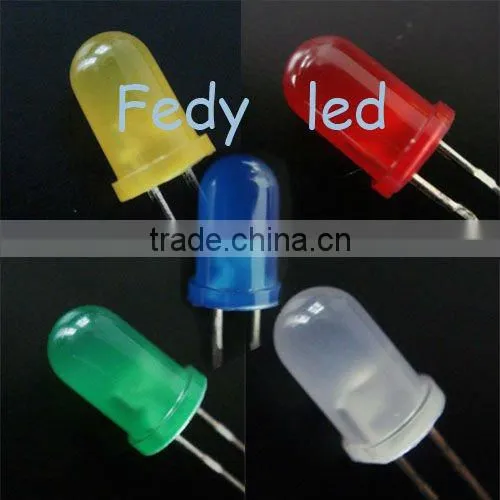

Help Center5mm Round Led Diode 12v
Related Products
Specifications
5mm round led diode 12v1, Lifespan: 50000hours
2, Warranty: 2 year
3, with ROHS, Class A quality

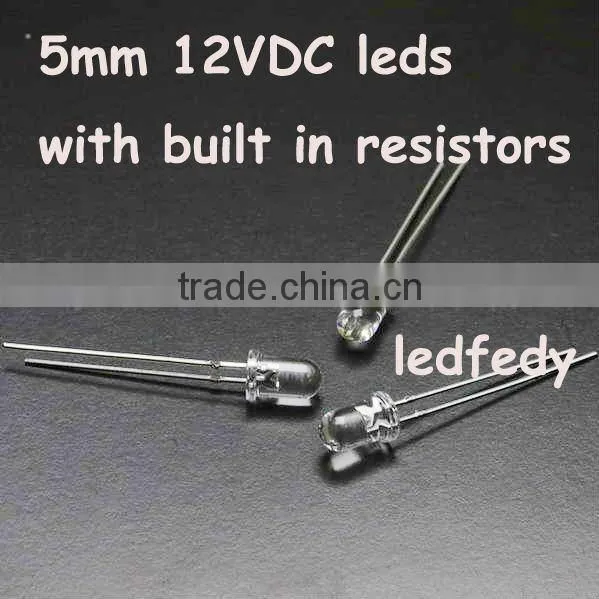

5mm round led diode 12v
1. We are professional factory of Power led, led diode, led strips . With experience of 11 years. Class A quality with 1-2 years warrany for all items. Orignal Epistar/Bridgelux chips with 100% Class A. All leds 100% QA passed before shipped. Fually automatic production machine and quality checking machines insures great quality of goods , and fast delivery .
With ROHS, Class A |
|
|
|
Warm white/ Cool white available |
|
||
Angle / Intensity / CCT can be adjusted as request |
|
||
Color of Red, Blue, Green, white, yellow,orange, pink, purple are available | |||
|
|
|
|
Part No. |
FD-50TW20 |
Emitting Color |
Pure white |
Intensity |
20000mcd |
Emitting Angle |
15degree |
Voltage |
3.0-3.4V |
Current |
20mA |
CCT |
5000-6000K |
Lens Color |
Water clear |
|
|
|
|
Warranty : |
1 Year |
|
|
Packing : |
1000pcs/ESD bag |
|
|
Leadtime : |
5days for sample, 7days for order |
|
|
Payment : |
TT, Western union |
|
|
Intensity : 18000-20000mcd
Angle: 10deg CCT: 2800-10000K
5mm white led with ROHS
Intensity & angle can be done as request
5mm white led , 5mm round led specifications:
- Size :5.0mmx8.7mm
- Emitting color :White
- Material: InGaN
- Polarity:P/N
- Lens color: water clear
- Color temperature : 6500-8000K
- Forward Voltage:3.0-3.2-3.5VF
- Luminous intensity: 15000-20000mcd
- 50% Power Angle: 13deg ±3
- Forward Current: 20 mA
- Reverse Voltage: -5Vr
- Reverse Cureent : ≤10 uA
- Power dissipation:120mW
| Item | Color | Intensity | Item No. | Viewing angle | Current | Voltage |
| 5mm Round led | White Warm white Cool white |
16000-18000MCD | FD-5TW-1 | 20degree | 20mA | 3.0-3.4V |
| 18000-20000MCD | FD-5TW-2 | 20degree | 20mA | 3.0-3.4V | ||
| Green | 12000-15000MCD | FD-5TG-1 | 20degree | 20mA | 3.0-3.4V | |
| 18000-22000MCD | FD-5TG-2 | 20degree | 20mA | 3.0-3.4V | ||
| Blue | 6500-8500MCD | FD-5TB-1 | 20degree | 20mA | 3.0-3.4V | |
| 8000-9000MCD | FD-5TB-2 | 20degree | 20mA | 3.0-3.4V | ||
| Red | 100-200MCD | FD-5TR-1 | 20degree | 20mA | 1.9-2.1V | |
| 3000-4000MCD | FD-5TR-2 | 20degree | 20mA | 1.9-2.2V | ||
| 4000-6000MCD | FD-5TR-3 | 20degree | 20mA | 1.9-2.3V | ||
| 8000-10000MCD | FD-5TR-4 | 20degree | 20mA | 1.9-2.4V | ||
| 10000-13000MCD | FD-5TR-5 | 20degree | 20mA | 1.9-2.5V | ||
| 13000-20000MCD | FD-5TR-6 | 20degree | 20mA | 1.9-2.6V | ||
| Yellow | 100-200MCD | FD-5TY-1 | 20degree | 20mA | 1.9-2.7V | |
| 3000-4000MCD | FD-5TY-2 | 20degree | 20mA | 1.9-2.8V | ||
| 4000-6000MCD | FD-5TY-3 | 20degree | 20mA | 1.9-2.9V | ||
| 8000-10000MCD | FD-5TY-4 | 20degree | 20mA | 1.9-2.10V | ||
| 10000-13000MCD | FD-5TY-5 | 20degree | 20mA | 1.9-2.11V | ||
| 13000-20000MCD | FD-5TY-6 | 20degree | 20mA | 1.9-2.12V | ||
| Amber | 100-200MCD | FD-5TA-1 | 20degree | 20mA | 1.9-2.13V | |
| 3000-4000MCD | FD-5TA-2 | 20degree | 20mA | 1.9-2.14V | ||
| 4000-6000MCD | FD-5TA-3 | 20degree | 20mA | 1.9-2.15V | ||
| 8000-10000MCD | FD-5TA-4 | 20degree | 20mA | 1.9-2.16V | ||
| 10000-13000MCD | FD-5TA-5 | 20degree | 20mA | 1.9-2.17V | ||
| 13000-20000MCD | FD-5TA-6 | 20degree | 20mA | 1.9-2.18V |
| Item | Color | Intensity | Item No. | Viewing angle | Current | Voltage |
| 3mm led | White Warm white Cool white |
7000-8000MCD | FD-3TW-1 | 20degree | 20mA | 3.0-3.4V |
| 11000-13000MCD | FD-3TW-2 | 20degree | 20mA | 3.0-3.4V | ||
| Green | 7000-8000MCD | FD-3TG-1 | 20degree | 20mA | 3.0-3.4V | |
| 11000-13000MCD | FD-3TG-2 | 20degree | 20mA | 3.0-3.4V | ||
| Blue | 6500-8500MCD | FD-3TB-1 | 20degree | 20mA | 3.0-3.4V | |
| 8000-9000MCD | FD-3TB-2 | 20degree | 20mA | 3.0-3.4V | ||
| Red | 90-100MCD | FD-3TR-1 | 20degree | 20mA | 1.9-2.1V | |
| 2000-3000MCD | FD-3TR-2 | 20degree | 20mA | 1.9-2.2V | ||
| 3000-5000MCD | FD-3TR-3 | 20degree | 20mA | 1.9-2.3V | ||
| 6000-8000MCD | FD-3TR-4 | 20degree | 20mA | 1.9-2.4V | ||
| 8000-10000MCD | FD-3TR-5 | 20degree | 20mA | 1.9-2.5V | ||
| 10000-12000MCD | FD-3TR-6 | 20degree | 20mA | 1.9-2.6V | ||
| Yellow | 90-100MCD | FD-3TY-1 | 20degree | 20mA | 1.9-2.7V | |
| 2000-3000MCD | FD-3TY-2 | 20degree | 20mA | 1.9-2.8V | ||
| 3000-5000MCD | FD-3TY-3 | 20degree | 20mA | 1.9-2.9V | ||
| 6000-8000MCD | FD-3TY-4 | 20degree | 20mA | 1.9-2.10V | ||
| 8000-10000MCD | FD-3TY-5 | 20degree | 20mA | 1.9-2.11V | ||
| 10000-12000MCD | FD-3TY-6 | 20degree | 20mA | 1.9-2.12V | ||
| Amber | 90-100MCD | FD-3TA-1 | 20degree | 20mA | 1.9-2.13V | |
| 2000-3000MCD | FD-3TA-2 | 20degree | 20mA | 1.9-2.14V | ||
| 3000-5000MCD | FD-3TA-3 | 20degree | 20mA | 1.9-2.15V | ||
| 6000-8000MCD | FD-3TA-4 | 20degree | 20mA | 1.9-2.16V | ||
| 8000-10000MCD | FD-3TA-5 | 20degree | 20mA | 1.9-2.17V | ||
| 10000-12000MCD | FD-3TA-6 | 20degree | 20mA | 1.9-2.18V |
Leds available
1. Size: 1.8mm 3mm, 5mm, 8mm,10mm .
2. Color : Warm white, pure white, cool white, purple, pink, green, blue, red, yellow, amber, aque, 3. Shape: Round, Helmet , Strawhat, bullet, 2X3X4mm,
1. Size: 3mm, 5mm, 10mm led
2. Shapes: round, burgonet, straw hat
3. Emitting color: red, yellow, blue, green, white, warm white
4. Beam Angle: 15-30 degrees
5. Wave length:red: 620-6300nm green:510-520nm blue:460-470nm yellow:585-595nm
6. Forward Voltage: 1.9-2.2V for red, yellow color, 3.0-3.4V for white .blue, green
7. Forward Current: 20mA
8. Lens colors: water clear, color diffused
9. Life Span: 50,000 Hours
10. Packing: 1000Pcs/bag,Anti-static bag antistatic bag
11. Luminous Intensity:
Red: 3000-4000MCD, 4000-6000MCD, 6000-8000MCD, 8000-10000MCD
Yellow: 3000-4000MCD, 4000-6000MCD, 6000-8000MCD, 8000-10000MCD
Green: 11000-13000MCD, 13000-15000mcd, 15000-18000MCD, 18000-20000MCD
Blue: 2000--3000MCD, 3000-4000MCD, 4000-5000MCD, 5000-7000MCD
White: 11000-13000MCD, 13000-15000mcd, 15000-18000MCD, 18000-20000MCD
5mm LED Feature:
1 chip material: inGaN/GaAsp
2 Shap:round led,oval led, straww halt led, square led,flat top led,bullet led,concave led,rectangle led
3 Avilable size: 2mm,3mm,5mm,8mm,10mm,20mm
4 Lens type: water clear,color transparent,colored diffuse
5 Emitted color; ,White,
6 Different angle availible
7 low power consumption,high intensity,uniform illumination
8 solid-state;high shock and viberation resistent
9 Major reduction in power cost
10.No RF interference
11 Maintenance free easy installation
12 superior ESD protection
Application:
1. Indoor and outdoor commercial lighting
2. Architectural Lighting
3. General lighting
4. Automotive lights
5. Mood Lighting, LED module
6. Traffic Light
7. LCD TV / monitor backlights
8. LED display
9. Reading light, LED torch
10. Craft flashlights, headlights
