Best Service and High Quality 30w 50w Cob Led Epistar Bridgelux Chip

Specifications

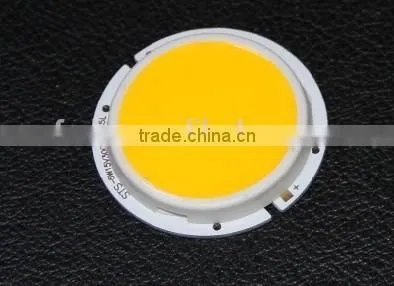

Best service and high quality 30w 50w cob led epistar Bridgelux chip
1. Professional manufacturer since 2000
2. Bridgelux chip

Best service and high quality 30w 50w cob led epistar Bridgelux chip



Part No.	Color	Wattage	Intensity
FD-1414-5	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	5w	500-550lm
FD-1414-7		7w	700-770lm
FD-1414-9		9w	900-990lm
FD-1414-12		12w	1200-1300lm
FD-1414-15		15w	1500-1600lm
Part No.	Color	Wattage	Intensity
FD-1919-9	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	9W	900-1000lm
FD-1919-12		12W	1200-1300lm
FD-1919-15		15W	1500-1600lm
FD-1919-20		20W	2000-2200lm
FD-1919-25		25W	2500-2600lm
Part No.	Color	Wattage	Intensity
FD-2020-7	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	7w	700-770lm
FD-2020-9		9w	900-990lm
FD-2020-12		12w	1200-1300lm
FD-2020-15		15w	1500-1600lm
FD-2020-20		20w	2000-2200lm
Part No.	Color	Wattage	Intensity
FD-2828-15	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	15w	1500-1600lm
FD-2828-20		20w	2000-2200lm
FD-2828-25		25w	2500-2600lm
FD-2828-30		30w	3000-3300lm
FD-2828-40		40w	4000-4400lm
Part No.	Color	Wattage	Intensity
FD-3838-20	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	20w	2000-2200lm
FD-3838-30		30w	3000-3300lm
FD-3838-40		40w	4000-4400lm
FD-3838-50		50w	5000-5500lm
FD-3838-60		60w	6000-6600lm
Part No.	Color	Wattage	Intensity
FD-1215-3	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	3w	300-330lm
FD-1215-5		5w	500-550lm
FD-1215-7		7w	700-770lm
FD-1215-9		9w	900-990lm
FD-1215-12		12w	1200-1300lm
Part No.	Color	Wattage	Intensity
FD-2024-12	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	12w	1200-1300lm
FD-2024-15		15w	1500-1600lm
FD-2024-20		20w	2000-2200lm
FD-2024-25		25w	2500-2600lm
FD-2024-30		30w	3000-3300lm
Part No.	Color	Wattage	Intensity
FD-2325-12	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	12w	1200-1300lm
FD-2325-15		15w	1500-1600lm
FD-2325-20		20w	2000-2200lm
FD-2325-25		25w	2500-2600lm
FD-2325-30		30w	3000-3300lm





Part No.	Color	Wattage	Intensity
FD-1314-3	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	3w	300-330lm
FD-1314-5		5w	500-550lm
FD-1314-7		7w	700-770lm
Part No.	Color	Wattage	Intensity
FD-1921-7	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	7w	700-770lm
FD-1921-9		9w	900-990lm
FD-1921-12		12w	1200-1300lm
FD-1921-15		15w	1500-1600lm
Part No.	Color	Wattage	Intensity
FD-2628-12	Pure White / warm white 3000-3200K 4000-4300K 6000-6500K	12w	1200-1300lm
FD-2628-15		15w	1500-1600lm
FD-2628-20		20w	2000-2200lm
FD-2628-25		25w	2500-2600lm
FD-2628-28		28w	2800-2900lm











1w UV	FD-15UV-Y1	365nm	3w UV	FD-35UV-Y1	365nm
	FD-12UV-Y1	390-400nm		FD-32UV-Y1	390-400nm
	FD-1UV-Y1	400-410nm		FD-3UV-Y1	400-410nm
	FD-13UV-Y1	410-420nm		FD-33UV-Y1	410-420nm
	FD-14UV-Y1	430-440nm		FD-34UV-Y1	430-440nm
1w Blue	FD-12B-Y1	440-450nm	3w Blue	FD-32B-Y1	440-450nm
	FD-13B-Y1	450-455nm		FD-33B-Y1	450-455nm
	FD-1B-Y1	460-470nm		FD-3B-Y1	460-470nm
1w Green	FD-12G-Y1	500-505nm	3w Green	FD-32G-Y1	500-505nm
	FD-13G-Y1	515-520nm		FD-33G-Y1	515-520nm
	FD-1G-Y1	520-530nm		FD-3G-Y1	520-530nm
1w Yellow	FD-1Y-Y1	588-595nm	3w Yellow	FD-3Y-Y1	588-595nm
1w Amber	FD-1A-Y1	600-610nm	3w Amber	FD-3A-Y1	600-610nm
1w Red	FD-1R-Y1	620-630nm	3w Red	FD-3R-Y1	620-630nm
	FD-12R-Y1	640-650nm		FD-32R-Y1	640-650nm
	FD-13R-Y1	650-660nm		FD-33R-Y1	650-660nm
	FD-14R-Y1	680-690nm		FD-34R-Y1	680-690nm
	FD-15R-Y1	700nm		FD-35R-Y1	700nm
1w IR	FD-1IR-Y1	940nm	3w IR	FD-3IR-Y1	940nm
	FD-12IR-Y1	850nm		FD-32IR-Y1	850nm
1w white	FD-1W80-Y1	70-80lm	3w white	FD-3W190-Y1	180-190lm
	FD-1W90-Y1	80-90lm		FD-3W220-Y1	200-220lm
	FD-1W100-Y1	90-100lm		FD-3W240-Y1	230-240lm
	FD-1W120-Y1	110-120lm
	FD-1W130-Y1	120-130lm
	FD-1W140-Y1	130-140lm



Main advantages of FEDY

1. Have our own packaging technology,can control all details,with good quality and high brightness.

2. led with Low lighting attenuation,Conversion factor can reach 90%

3. Good glare control.

4. Special design good for heating output.

5. Long lifespan of up to 80,000 hours

6. We are professional manufacturuer since 2000. Quality Is 100% guaranteed.

7. Leds with  TW original Epistar chips amd Bridgelux chips from USA . Class A quality
