Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FEDY
Model Number:
FD-50TW20
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4-pin Rgb 5mm Led Emitting DiodeNegotiableMOQ: 1000 Pieces -
Epoxy Resin 5MM Led Diode 4 Pin 16colorsNegotiableMOQ: 1000 Pieces
-
Epoxy Resin 5MM Led Diode 4 Pin F5 Round DiodeNegotiableMOQ: 1000 Pieces
-
4 Pins Common Anode LED Diode RGB 5mm/8mm (ROHS and CE Compliant)NegotiableMOQ: 1000 Pieces
-
Ultra-Bright 5mm 4 Pin RGB LED Red Green BlueNegotiableMOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
FEDY
Model Number
FD-50TW20
Specifications
high bright 5mm rgb full color dip led1, Lifespan: 80000hours
2, Warranty: 2 year .
3. Chip: Epistar
4.

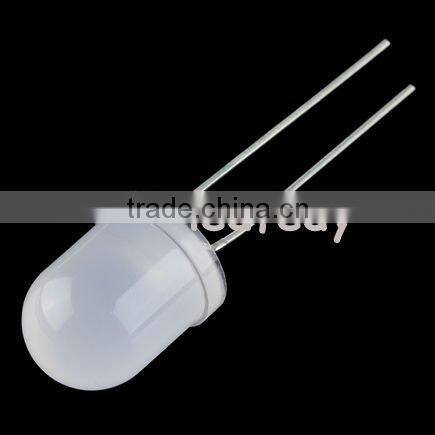

high bright 5mm rgb full color dip led
1. We are professional manufacturer of leds with 13 years experience.
2.Class A quality with 2 years warrany for all items.
3.All leds 100% tested and QA passed before shipped.

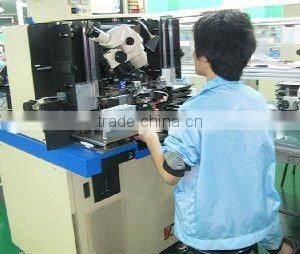

4.Fually automatic production machine and quality checking machines insures great quality of goods , and fast delivery .
5. Intensity & viewing angle can be adjusted as your request.

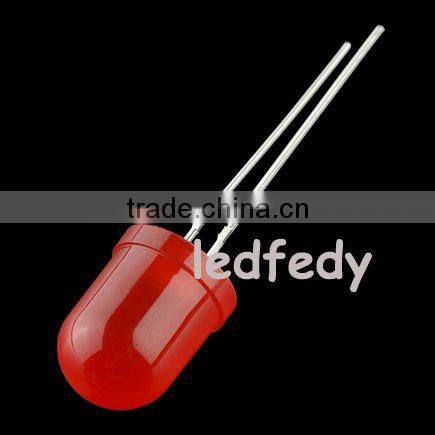

| 5mm round Red color in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TR-1 | 4000-6000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-2 | 6000-8000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-3 | 8000-12000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-4 | 12000-18000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-5 | 18000-20000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-6 | 20000-23000 | 15-20 | 620-630 | 1.9-2.4 |
| FD-5TR-7 | 23000-25000 | 15-20 | 620-630 | 1.9-2.4 |
| Viewing angle in 30-35degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TR30-1 | 3000-4000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-2 | 4000-5000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-3 | 5000-8000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-4 | 8000-10000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-5 | 10000-12000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-6 | 12000-18000 | 30-35 | 620-630 | 1.9-2.4 |
| FD-5TR30-7 | 18000-20000 | 30-35 | 620-630 | 1.9-2.4 |
| Viewing angle in 45degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TR45-1 | 2000-3000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-2 | 3000-4000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-3 | 5000-6000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-4 | 6000-8000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-5 | 8000-10000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-6 | 10000-12000 | 45 | 620-630 | 1.9-2.4 |
| FD-5TR45-7 | 12000-15000 | 45 | 620-630 | 1.9-2.4 |
| Viewing angle in 60degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TR60-1 | 1000-1500 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-2 | 1500-2500 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-3 | 2500-4500 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-4 | 4500-5000 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-5 | 5000-7000 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-6 | 8000-10000 | 60 | 620-630 | 1.9-2.4 |
| FD-5TR60-7 | 10000-12000 | 60 | 620-630 | 1.9-2.4 |
| Special wavelength | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-52TR-1 | / | / | 630-635 | 1.9-2.4 |
| FD-53TR-1 | / | / | 660 | 1.9-2.4 |
| FD-54TR-1 | / | / | 670 | 1.9-2.4 |
| FD-542TR-1 | / | / | 670-680 | 1.9-2.4 |
| FD-55TR-1 | / | / | 760-770 | 1.9-2.4 |

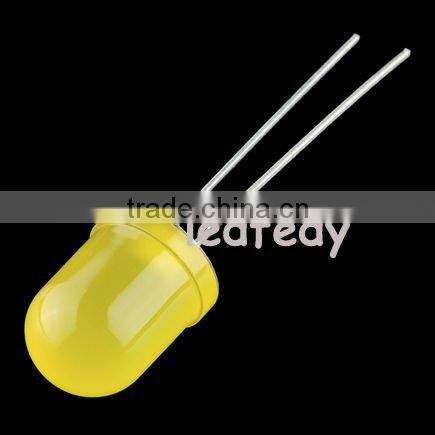

| 5mm round Yellow color in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TY-1 | 5000-7000 | 15-20 | 588-595 | 1.9-2.4 |
| FD-5TY-2 | 8000-10000 | 15-20 | 588-595 | 1.9-2.4 |
| FD-5TY-3 | 10000-15000 | 15-20 | 588-595 | 1.9-2.4 |
| FD-5TY-4 | 18000-22000 | 15-20 | 588-595 | 1.9-2.4 |
| FD-5TY-5 | 22000-25000 | 15-20 | 588-595 | 1.9-2.4 |
| Viewing angle in 30-35degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TY30-1 | 3000-4000 | 30-35 | 588-595 | 1.9-2.4 |
| FD-5TY30-2 | 5000-8000 | 30-35 | 588-595 | 1.9-2.4 |
| FD-5TY30-3 | 8000-12000 | 30-35 | 588-595 | 1.9-2.4 |
| FD-5TY30-4 | 12000-18000 | 30-35 | 588-595 | 1.9-2.4 |
| FD-5TY30-5 | 18000-20000 | 30-35 | 588-595 | 1.9-2.4 |
| Viewing angle in 45degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TY45-1 | 2000-4000 | 45 | 588-595 | 1.9-2.4 |
| FD-5TY45-2 | 4000-7000 | 45 | 588-595 | 1.9-2.4 |
| FD-5TY45-3 | 7000-10000 | 45 | 588-595 | 1.9-2.4 |
| FD-5TY45-4 | 10000-12000 | 45 | 588-595 | 1.9-2.4 |
| FD-5TY45-5 | 12000-15000 | 45 | 588-595 | 1.9-2.4 |
| Viewing angle in 60degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TY60-1 | 1500-2500 | 60 | 588-595 | 1.9-2.4 |
| FD-5TY60-2 | 3000-5000 | 60 | 588-595 | 1.9-2.4 |
| FD-5TY60-3 | 5000-8000 | 60 | 588-595 | 1.9-2.4 |
| FD-5TY60-4 | 8000-10000 | 60 | 588-595 | 1.9-2.4 |
| FD-5TY60-5 | 10000-12000 | 60 | 588-595 | 1.9-2.4 |
| Special wavelength | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-52TY-1 | / | / | 585-592 | 1.9-2.4 |
| FD-53TY-1 | / | / | 580-586 | 1.9-2.4 |
| FD-54TR-1 | / | / | 570-575 | 1.9-2.4 |
| 5mm round Whitecolor in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TW-1 | 13000-16000 | 15-20 | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) | 3.0-3.4 |
| FD-5TW-2 | 16000-18000 | 15-20 | 3.0-3.4 | |
| FD-5TW-3 | 20000-23000 | 15-20 | 3.0-3.4 | |
| FD-5TW-4 | 25000 | 15-20 | 3.0-3.4 | |
| FD-5TW-5 | 25000mcd ( Perfect light version ) | 15-20 | 3.0-3.4 | |
| Viewing angle in 30-35degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TW30-1 | 10000-12000 | 30-35 | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) | 3.0-3.4 |
| FD-5TW30-2 | 13000-15000 | 30-35 | 3.0-3.4 | |
| FD-5TW30-3 | 15000-16000 | 30-35 | 3.0-3.4 | |
| FD-5TW30-4 | 18000 | 30-35 | 3.0-3.4 | |
| FD-5TW30-5 | 18000mcd ( Perfect light version ) | 30-35 | 3.0-3.4 | |
| Viewing angle in 45degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TW45-1 | 7000-8000 | 45 | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) | 3.0-3.4 |
| FD-5TW45-2 | 9000-10000 | 45 | 3.0-3.4 | |
| FD-5TW45-3 | 10000-12000 | 45 | 3.0-3.4 | |
| FD-5TW45-4 | 12000-15000 | 45 | 3.0-3.4 | |
| FD-5TW45-5 | 15000mcd ( Perfect light version ) | 45 | 3.0-3.4 | |
| Viewing angle in 60 degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TW60-1 | 5000-6000 | 60 | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) | 3.0-3.4 |
| FD-5TW60-2 | 7000-8000 | 60 | 3.0-3.4 | |
| FD-5TW60-3 | 9000 | 60 | 3.0-3.4 | |
| FD-5TW60-4 | 12000 | 60 | 3.0-3.4 | |
| FD-5TW60-5 | 12000mcd ( Perfect light version ) | 60 | 3.0-3.4 | |
| 5mm round Amber color in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TA-1 | 5000-7000 | 15-20 | 600-610 | 1.9-2.4 |
| FD-5TA-2 | 8000-10000 | 15-20 | 600-610 | 1.9-2.4 |
| FD-5TA-3 | 10000-15000 | 15-20 | 600-610 | 1.9-2.4 |
| FD-5TA-4 | 18000-22000 | 15-20 | 600-610 | 1.9-2.4 |
| FD-5TA-5 | 22000-25000 | 15-20 | 600-610 | 1.9-2.4 |

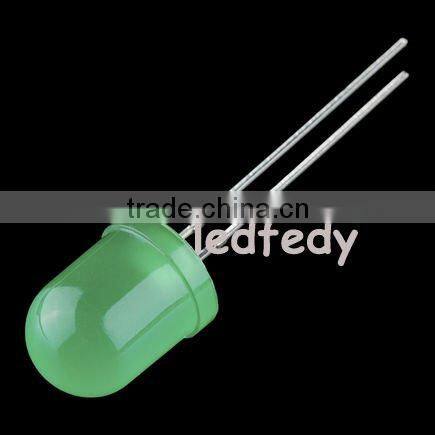

| 5mm round Greencolor in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TG-1 | 20000-23000 | 15-20 | 520-530 | 3.0-3.4 |
| FD-5TG-2 | 23000-25000 | 15-20 | 520-530 | 3.0-3.4 |
| FD-5TG-3 | 25000-28000 | 15-20 | 520-530 | 3.0-3.4 |
| FD-5TG-4 | 28000 Perfect light version | 15-20 | 520-530 | 3.0-3.4 |
| Viewing angle in 30-35degree | ||||
| Special wavelength | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-52TG-1 | / | / | 500-505 | 3.0-3.4 |
| FD-53TG-1 | / | / | 490-495 | 3.0-3.4 |
| FD-54TG-1 | / | / | 495-500 | 3.0-3.4 |

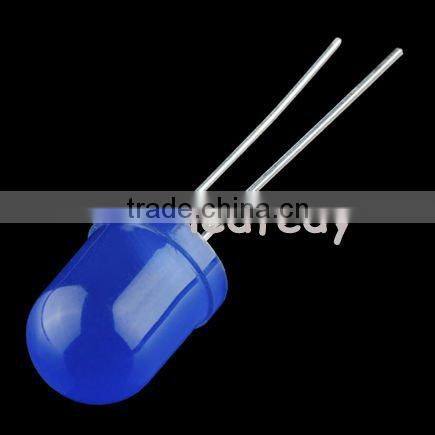

| 5mm round Bluecolor in water clear lens | ||||
| Viewing angle in 15-20degree | ||||
| Part No. | Intensity at 20mA ( mcd ) | Emitting Angle ( Degree ) | Wavelength ( nm ) | Voltage ( V ) |
| FD-5TB-1 | 6000-8000 | 15-20 | 460-470 | 3.0-3.4 |
| FD-5TB-2 | 10000-15000 | 15-20 | 460-470 | 3.0-3.4 |
| FD-5TB-3 | 13000-15000 | 15-20 | 460-470 | 3.0-3.4 |
| FD-5TB-4 | 15000-18000 | 15-20 | 460-470 | 3.0-3.4 |
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2011
Factory Size
1,000-3,000 square meters
Total Employees
201 - 300 People
