Specifications
on off dc isolator switchhistory for 30 years,
current range:10A to 160A
certificate:Rohs&CE

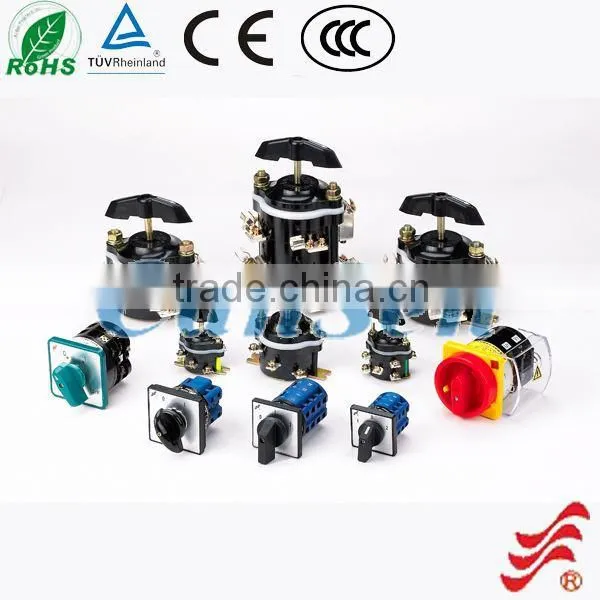

on off dc isolator switch
Our company specializes in various rotary switch in your exact specification.If you do not find the exact items your needs,please do not be rush to go away.Send your specifications or item number or picture to us so we can give you our best resolves.
Advantage:
1.Specializes in manufacturing rotary switch more than 30 years as well as export the relevant component more than 5 years
2.CCC-marked products conform to REACH,TUV,and CCC regulations
3.Rich selection of rotary switch,change over switch,cam switch,isolator switch
4.ISO 9001:2008-certified factory quipped with automated assembly lines
5.Sample take up to 3 days,but can be finished with one day in ugent cases
6.The rotary switch can replace Kraus & Naimer retary switch
7.Provide mark logo serivice when the quantity more than 1000pcs
8.Custom orders welcome
| No. | Tech Parameters | requirement |
| 1. | rated voltage | below 440V & DC220 |
| 2. | rated current | 10A,20A,25A,32A,63A,80A,100A,125A,160A |
| 3. | frequency | AC50HZ |
4. | No.of poles | 2P,3P,4P |
| 5. | No.of layers | make as required with circuit diagram |
| 6. | panel size | 30*30mm,48*48mm,64*64mm,88*88mm |
| 7. | colour of handle | black,white,red,grey |
| 8. | working temperature | -25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C) |
| 9. | Working height | ≤2,000m |
| 10. | Relative humidity | ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C) |
| 11. | Instalation conditions | polution class III |
| 12. | Mechanical life | 0.1*106times |
| 13. | Electrical life | 0.03*106times |
| 14. | Operative frequency | 120times/hour |
| 15. | transform angle | 30°/45°/60°/90°/120°/135°/150° |
on off dc isolator switch
