MIC48-36-8 Beverage three in one washing filling capping machine
1. High efficiency and low cost.
2. Fully automatic control and high hygienic design.
3. Excellent and stable product quality.
4. Saving work space and manpower for users.
5. Easy maintenance and high safety standard.
Model | Capability | Washing part | Filling part | Capping part | Dimensions | ||||
(b/h) | Water Speed | Air Speed | Head No. | Type | Head No. | Type | Head No. | (mm) | |
(m³/h) | (m³/h) | ||||||||
MIC30-24-8 | 6000 | 2.1 | 1.1 | 30 | Cup-type filling | 24 | cap sealing | 8 | 3950*2200*2700 |
Intelligent inductive filling | |||||||||
MIC40-30-8 | 8000 | 2.9 | 1.3 | 40 | Cup-type filling | 30 | cap sealing | 8 | 4500*2750*2700 |
Intelligent inductive filling | |||||||||
MIC48-36-8 | 10000 | 3.5 | 1.3 | 48 | Cup-type filling | 36 | cap sealing | 8 | 5000*3150*2700 |
Intelligent inductive filling | |||||||||
MIC60-40-8 | 12000 | 4.4 | 2 | 60 | Cup-type filling | 40 | cap sealing | 8 | 5500*3650*2700 |
Intelligent inductive filling | |||||||||
We will offer our technician for oversea wine filling machine installation and training service.
We can also provide our Sales as translator to your site help the installation and Training.
Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
Thank you for choosing MIC Machinery Company.
For Wine filling machine question:
First of all, before we operate wine filling machine, to clearly understand the instructions clearly wine filling machine , first read through the instructions again, adjust and use the familiar wine filling machine , the operating time must be in strict accordance with the instructions to wine filling machine instructions , pay attention to details of the problem , certainly the details determine success or failure .
Secondly, in accordance with the instructions on the machine for regular repair and maintenance of the wine filling machine fuselage Oil it , so wine filling machine body as far as possible to protect the reservoir , so that the air can be isolated to avoid wine filling machine rusty , well protected wine filling machine body, and this is a way to extend the life of the 4 in1 filling machine .
Once again, we have to pay attention to hot stand -sealing cloth for cleaning, not retained foreign body in the above , to ensure clean wine filling machine try to avoid the amount of material for a long time into the mouth of the left cause corrosion .
Fourth, we should always check the machine to see contacts at various parts of the machine is good, important to ensure safe use of electricity, no electricity properly to prevent harm.
Fifth, if found faulty , we have to turn off the power , when necessary, by pressing the emergency stop button , and then deflated lift cover, and then close the voltage , check the reason , and troubleshooting.

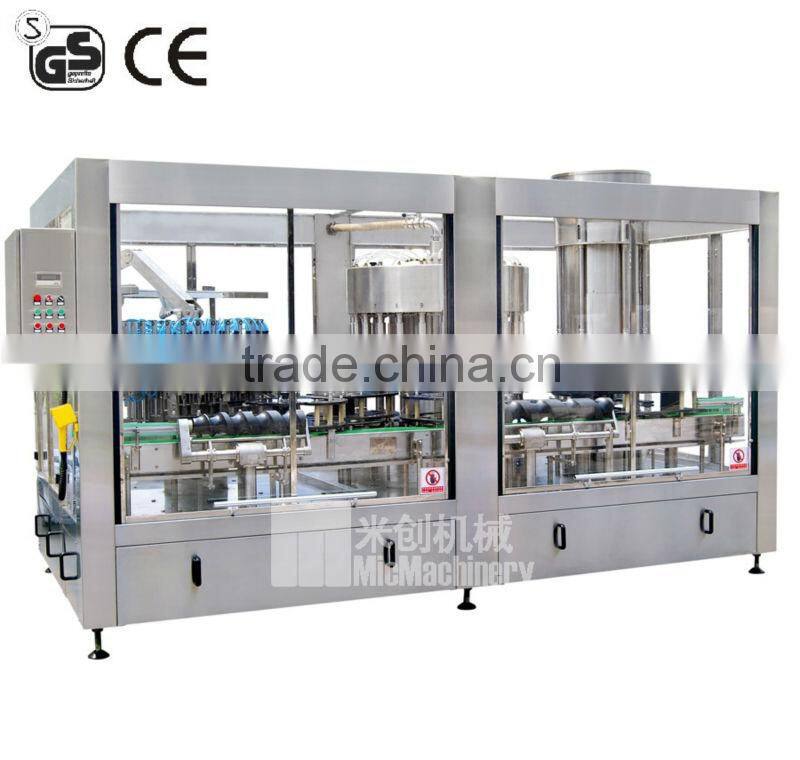

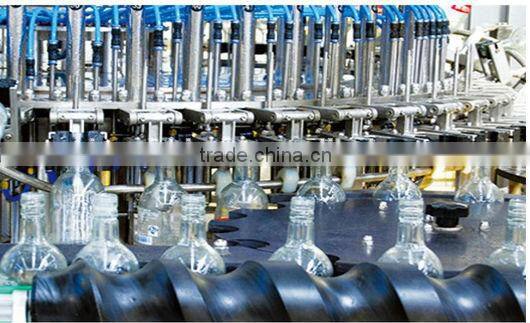

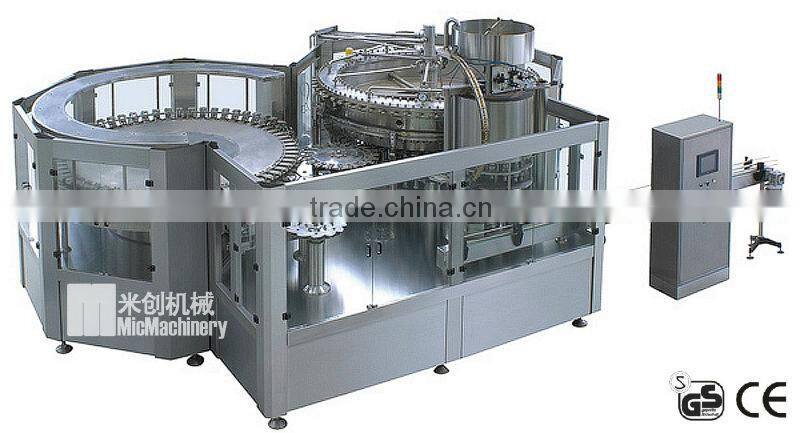

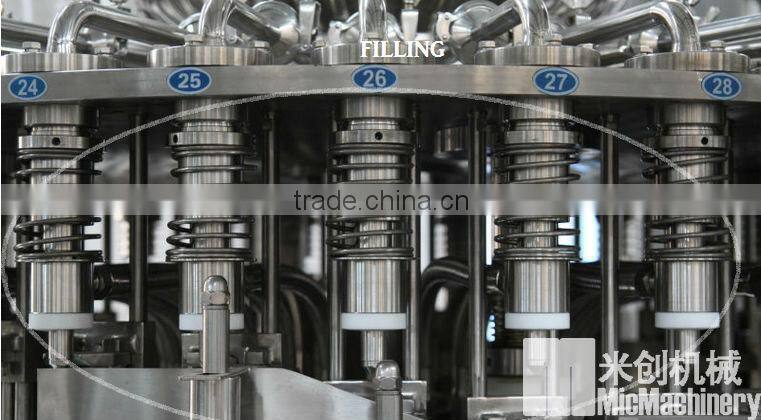

Detail picture of wine filling machine:
