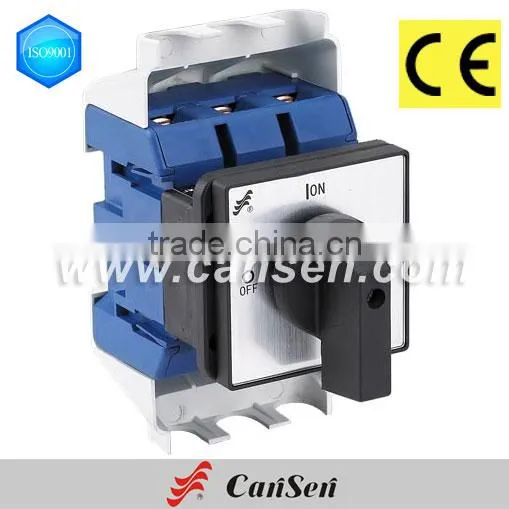

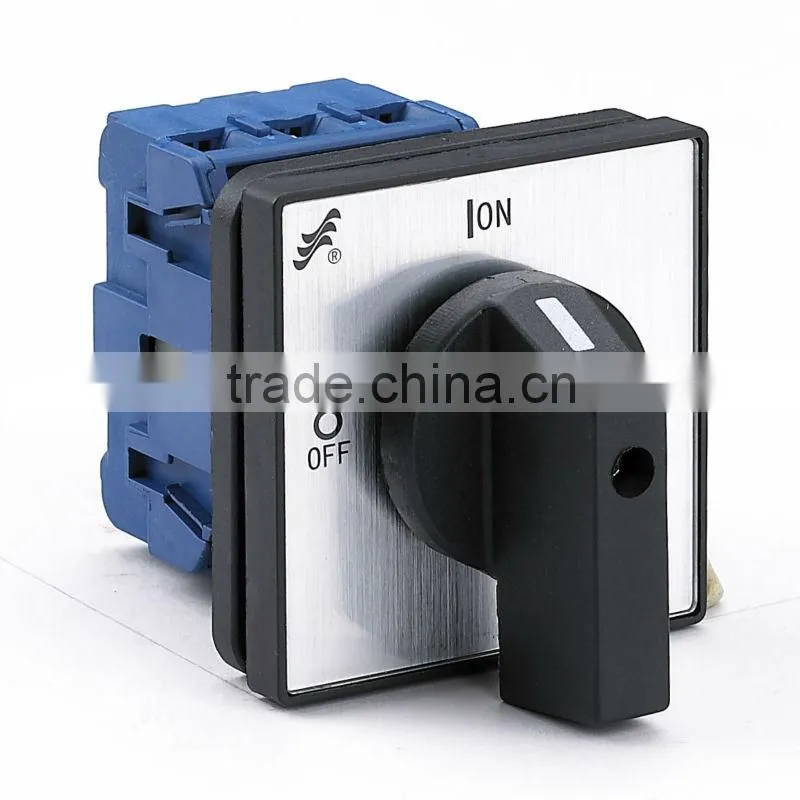

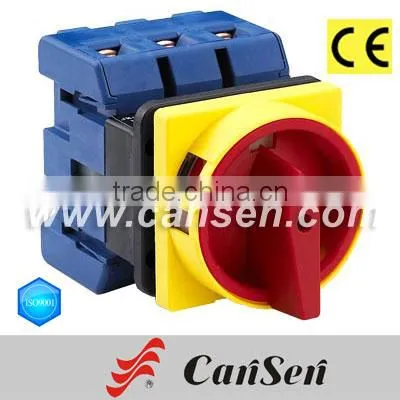

Power switch LW30 100A (ROHS,CE certificate) base installation

No.

Tech Parameters

requirement

1.

rated voltage

below 440V

2.

rated current

20A,32A,40A,63A,80A,100A

3.

frequency

AC50HZ

4.

No.of poles

3P,4P

5.

No.of layers

make as required with circuit diagram

6.

panel size

30*30mm,48*48mm,64*64mm,88*88mm

7.

colour of handle

black,white,red,grey

8.

Working temperature

-25°C~+40°C

REMARKS:the average temperature mustn’t be pass 35°C

9.

 Working height

 ≤2,000m

10.

 Relative humidity

≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C

(eg.:humidity 90%----teperature20°C)

11.

 Instalation conditions

 polution class III

12.

 Mechanical life

 0.1*10⁶times

13.

 Electrical life

 0.03*10⁶times

14.

 Operative frequency

 120times/hour

15.

 transform angle

 30°/45°/60°/90°/120°/135°/150°
