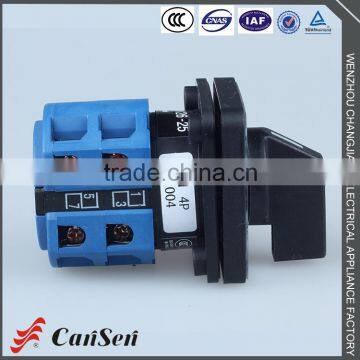

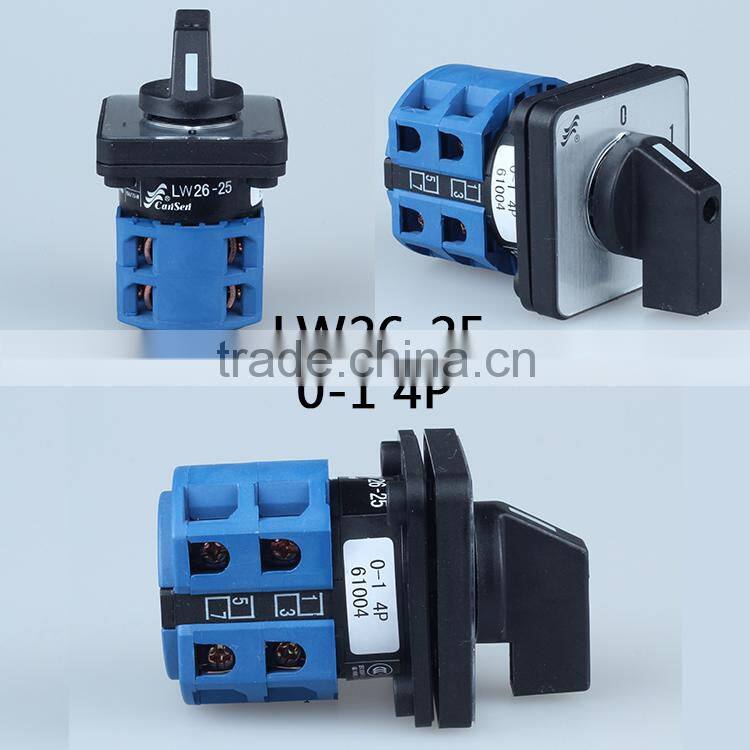

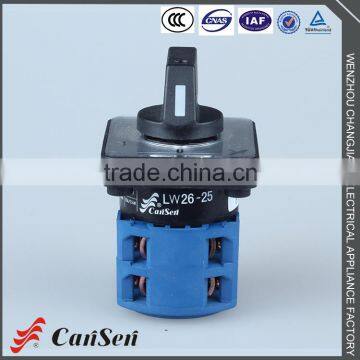

Help CenterLW26-25 25A CE/TUV/RoHS/CCC/ISO Electrical Changeover Switch
Related Products
-
LW31B-16 OFF-ON 4P 16A Professional Manufacture Cheap Explosion-proof Isolator SwitchUS$ 2.02 - 2.02MOQ: 100 Pieces -
LW26GS-20/04-1 Pad-lock Plate Working off on Rotary SwitchUS$ 2 - 18MOQ: 100 Pieces
-
LW30-20 300011 Red Yellow Pad-lock Rotary Cam Switch With Thermoplastic Sealed Protect BoxUS$ 8.8 - 10MOQ: 50 Pieces
-
LW26-63 OFF-ON 4P KG Din-rail Door Inter-lock Installation off on Isolator SwitchUS$ 2 - 18MOQ: 100 Pieces
-
LW26S-20 S4 Single Hole 4P Key-lock Changeover Switch With PlateUS$ 6.87 - 6.87MOQ: 100 Pieces
| Specification | LW26-25 | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 25 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | / | / | 25 | 25 |
| AC-23A | / | / | 22 | 22 |
| AC-2 | / | / | 22 | 22 |
| AC-3 | / | / | 15 | 15 |
| AC-4 | / | / | 6.5 | 6.5 |
| AC-15 | / | / | 8 | 5 |
| DC-13 | 20 | 20 | 0.5 | |
| Power | ||||
| AC-23A | / | / | 5.5/3 | 11/5.5 |
| AC-2 | / | / | 5.5 | 11 |
| AC-3 | / | / | 4/3 | 7.5/3.7 |
| AC-4 | / | / | 1.5/1.1 | 3/2.2 |
1.Products Introduction
LW26GS series Pad-lock type switch are derivatives of LW26 series rotary switch.Insalled in equipment where it requires a pad-lock to lock the switch in certain position.For instance, to fix the switch in ON position,to prevent the unauthorized personnel from operation the switch.
LW26GS series Pad-lock type switch complies with the GB 14048.3 and IEC 60947.3.
2.Working Conditions
a.Ambient temperature DO NOT exceed 40℃, and the average temperature,measured over a period of 24 hours,
DO NOT exceed 35℃.
b.Ambient temperature should not be below -25℃.
c.Should not be isstalled above 2000m above sea level.
d.The humidity should not exceed 50% when the ambient temperature is 40℃ and higher humidity is allowed for lower temperature.

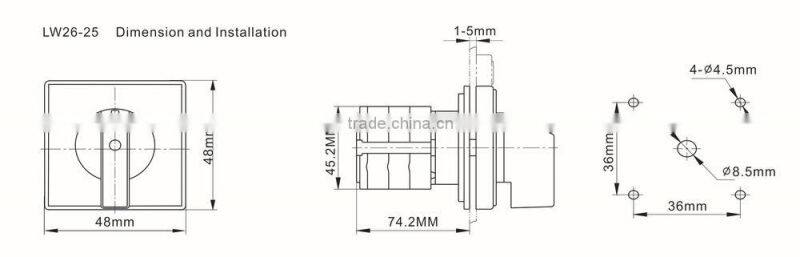

3.Installation Conditions
a.A clean environment is required
b.Please follow our manual
4.Order Procedure

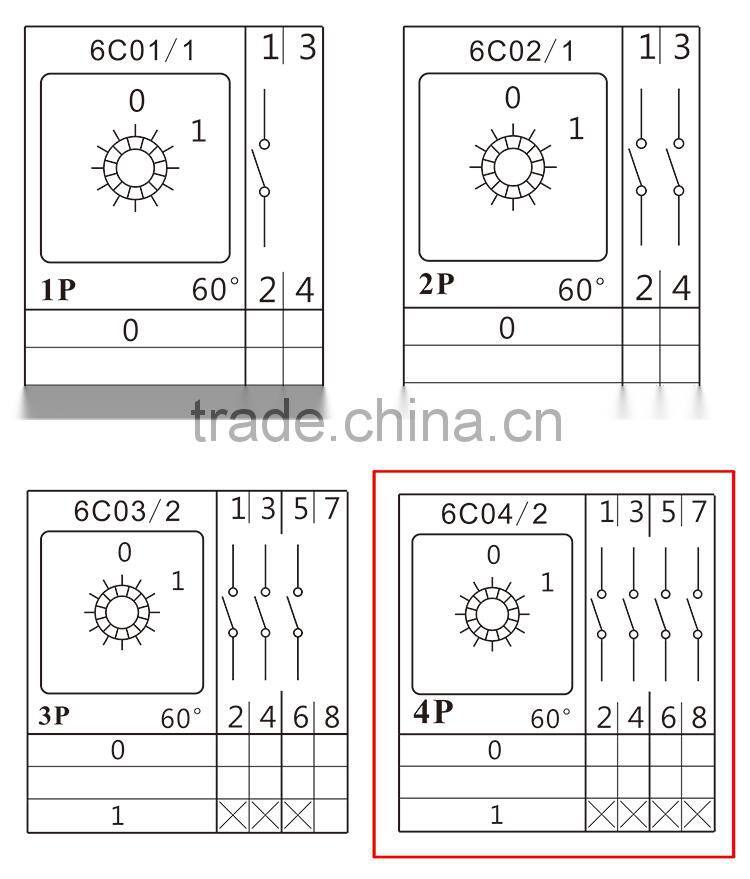

When placing an order please specify the contact diagram of the product you require.The LW26 series rotary switch have the similar contact diagram as the other rotary switches like LW2D,LW5D,LW6D,LW8D,LW12,LW15,HZ5D and HZ25D.Our factory have published<The General Contact Diagram for Cansen Rotary Switches >Which will help you to specify the contact diagram.
In addition,please specify the current rating, mounting plate,handle type,color and quantityas well.
For instance:
When ordering 20A,rotary angle 60°, character code C,contact diagram code 5391, M1 plate, black R handle 20 unites. The order can be: LW26-20.6C5391/2A11R(M1R)20units.
Due to the update of the technologies, we reserve the righting of updating the catalogue without further notices.
1. What kind of certificate do you have?
For company: ISO9001:2000, CCC, TUV
LW26 series: TUV, CE, UL, RoHS, CCC
LW30 series: CE, CB, RoHS, CCC
LW31 series: CE, RoHS, CCC
LW40 series: CCC
KDHc series: CCC
2. Where do you sell the goods to?
Germany, USA, UK, Korea, Australia, all major european and american countries.
3. What's the annual production?
5,000,000 pcs of switches in one year, is the biggest manufacturer and seller in China.
4. How is the factory?
Cansen Factory have more than 30 years manufacture expreience, and is more than 20,000 square meter
with 300 workers.
